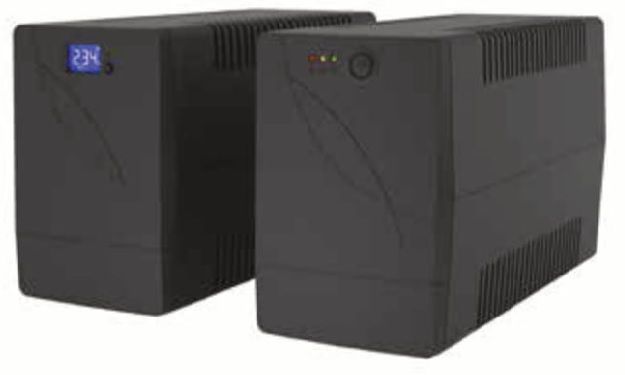

GUARDIAN 1000AP 1KVA/AVR
Марка:
INFORM
- Manufacturer:INFORM
- Mnfr Part #:GUARDIAN 1000AP
- Model:1000AP 1KVA/AVR
- Capacity:1000 VA
- Type:Line-interactive
- Input:Voltage:230V or 220V ± 25%; Frequency:50 or 60 Hz ± 5Hz (auto sensing).
- Output:Power Factor:0.6; Voltage (On battery):230V or 220V ± 10%; Waveform (On battery):Simulated Sinewave; Frequency (On battery):50 or 60 Hz ± 1Hz; Voltage Regulation (AVR):AVR automatically increase output voltage 15% above input voltage if -9% to-25% of n...
- Interface:Interface (Communication Ports):RS232 Standard; Software:Standard.
- Display:LED Display:4 LEDs for Line, Back up, fault and Overload.
- Battery:Type:Maintenance-free lead acid batteries; Recharge Time: 6-8 hours (to 90% of full capacity); Voltage:24VDC; Quantity:2x12V 7Ah.
- Environment:Protection class: IP20; Protection:Short Circuit, Overload, Noise Suppression, Spike, Battery Overdischarge, Modem/Network (AP Models only); Operating Temperature: 0-40 °C; Humidity: 0-95% non-condensing; Audible Noise at 1m: <40dBA .
- Standarts:EN 62040-1-1 (safety); EN62040-2 (EMC)
- Dimensions:146 x 350 x 160mm
