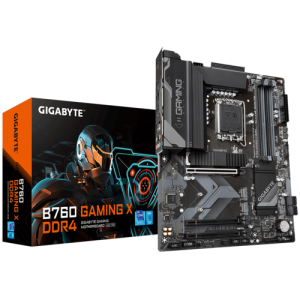

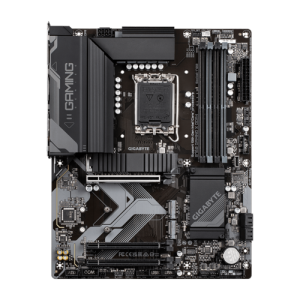

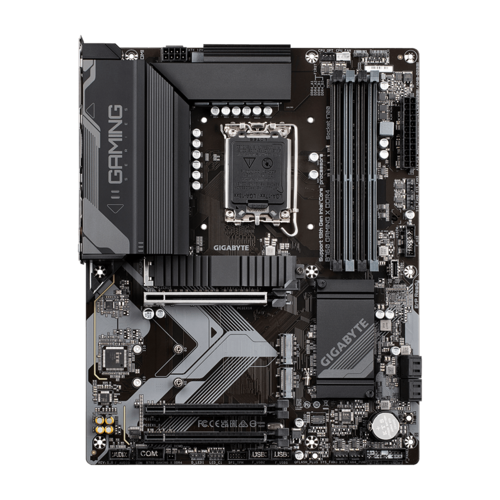

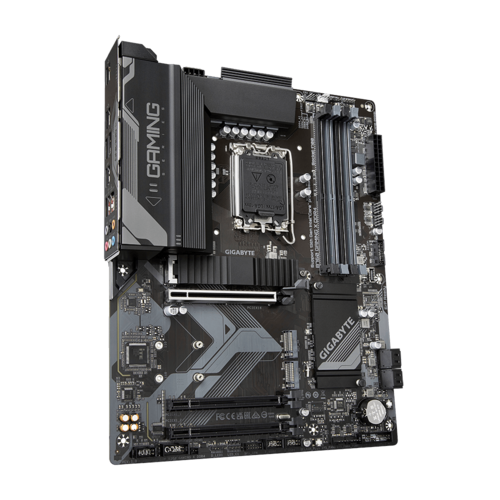

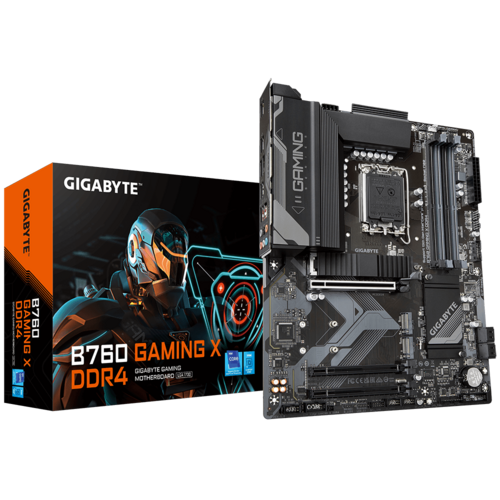

GB B760 GAMING X DDR4
Brand:
GIGABYTE
- :Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O....
- :Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz; * Support for DisplayPort 1.2 version and HDCP 2.3; 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Supp...
- :Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; Support for S/PDIF Out
- :Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- :CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16); * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.; Chipset: 2 x PCI Express x16 slots, suppor...
- :1 x USB 3.2 Gen 2 Type-A port (red); 2 x USB 3.2 Gen 1 ports; 5 x USB 2.0/1.1 ports; 1 x DisplayPort; 1 x HDMI port; 1 x RJ-45 port; 6 x audio jacks
- :ATX Form Factor; 30.5cm x 24.4cm
- :LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors; L3 cache varies with CPU
- :Intel® B760 Express Chipset
- :CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU); Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB); 4 x SATA 6Gb/s connectors; RAID 0, RAID 1, RAID...
- :1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 3 x system fan headers; 1 x system fan/water cooling pump header; 2 x addressable LED strip headers; 2 x RGB LED strip he...
- :1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
