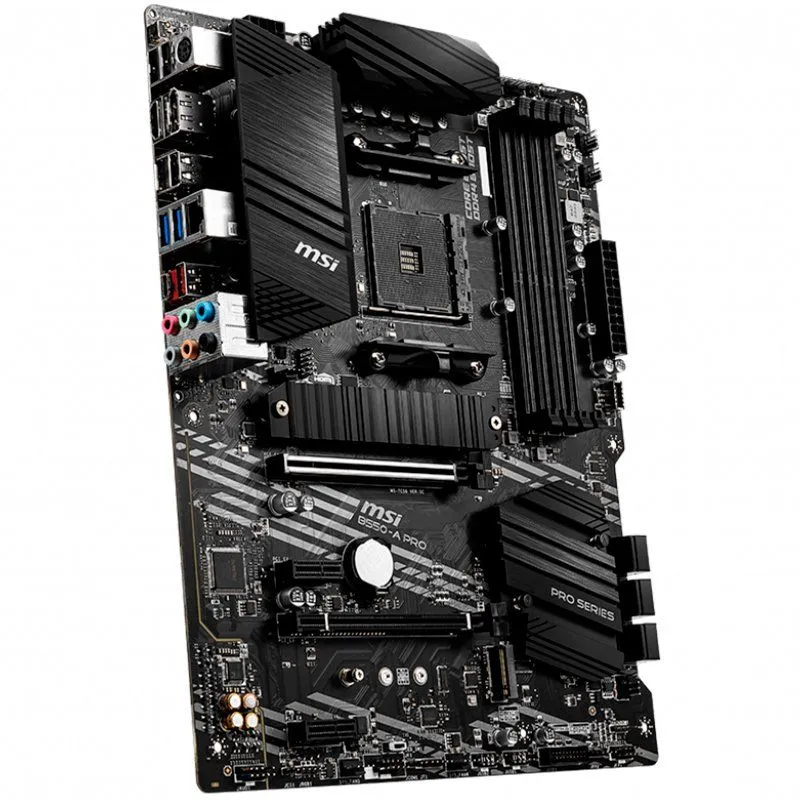

MSI B550-A PRO,ATX, Socket AM4,AMD B550 Chipset,4 DIMMs,Dual Channel DDR4 up to 4400+(OC)MHz,1x PCIe 4.0/3.0 x16 slot,2x M.2 slots,2x USB 3.2 Gen 2 ( 1x Type-C), 2x USB 3.2 Gen 1, 4x USB 2.0, 1x HDMI, 1x DP, 1G LAN, 7.1 Audio, 3y warranty
Brand:
MSI
- Width:305 мм
- Height:244 мм
- Warranty products - subject to return:Да
- Warranty terms (month):36 мес.
- Criteria for warranty validity:Сериен номер
- Package Weight - Gross (kg):1.13 кг
- Number per pack:1
- Carton Weight - Gross (kg):11.35 кг
- Packages in a carton:10
- Package type:Box
- HDMI:1 (HDMI (Type A))
- Retail Packaging Net Weight Carton:0.01 кг
- Retail Packaging Net Weight Plastic:0.01 кг
- Package Weight - Net (kg):0.01 кг
- USB 2.0:4 (USB 2.0 (type A))
- Audio interface:6 (3.5 мм мини жак)
- Accessories included:I/O Shield <br/>Кратко ръководство за потребителя <br/>Driver CD
- Supported data exchange protocols:Gigabit Ethernet/Fast Ethernet/Ethernet
- Device location:Вграден
- Audio output type:7.1 канален съраунд
- Cables included:2 x SATA cables
- Processor:AMD Ryzen Series
- CPU socket:Socket AM4
- DisplayPort:1
- USB 3.2 Gen 1:2 (USB 3.2 (type A))
- Network card chipset:Realtek RTL8111H
- USB 3.2 Gen 2:1 (USB 3.2 (type A)); 1 (USB 3.2 (type C))
- Chipset on the motherboard:AMD B550
- Memory speed/frequency:1866MHz(PC4-14900) <br/>2133MHz(PC4-17000) <br/>2400MHz(PC4-19200) <br/>2667MHz(PC4-21300) <br/>2800MHz(PC4-22400) <br/>2933MHz(PC4-23400) <br/>3000MHz(PC4-24000) <br/>3200MHz(PC4-25600)
- Total number of memory slots:4
- Compatible audio standards:High Definition Audio
- Memory form factor:DIMM 288-pin
- Audio chipset:Realtek ALC892
- Max. number of installed processors:1
- It offers an error checking method:ECC/non-ECC
- Maximum amount of installed memory:128 GB
- Built-in:<b>Storage Controller:</b><br/>Supports: Ниво 0, Ниво 1, Ниво 10<br/>SATA III-600 (6)<br/><b>Storage Controller:</b><br/>PCIe/SATA (1 x M.2 (Key M))<br/><b>Storage Controller:</b><br/>PCI Express 3.0 x4 (1 x M.2 (Key M))<br/>
- Memory characteristics:Two DDR Channels <br/>Небуферирана
- PS/2:1
- PCI Express 3.0 x1:2
- PCI Express x16:2
- Audio integrated:Да
- LAN integrated:Да
- Power connector type:24+8 pin
- Motherboard - characteristics:AMD 2-Way CrossFire Technology
- :ATX
- :DDR4 SDRAM
