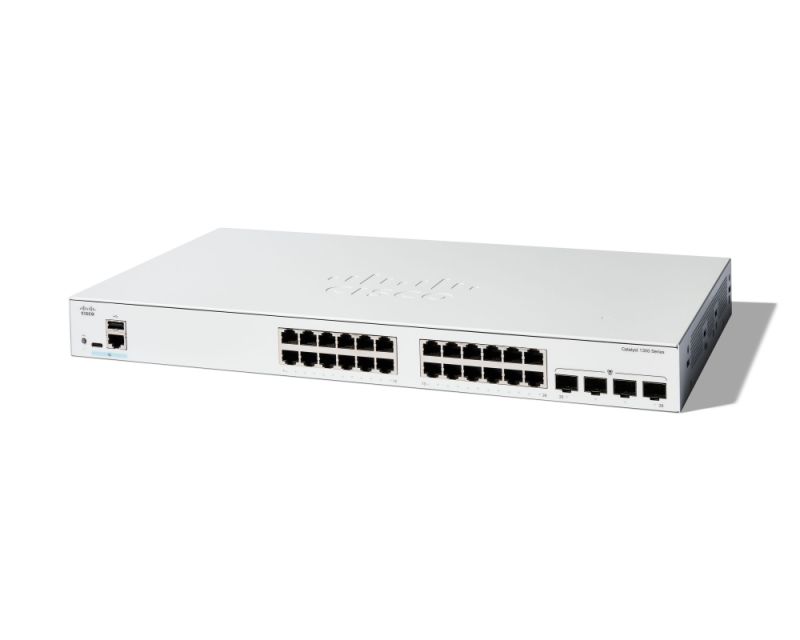

Switch Cisco Catalyst 1300 24-port GE, 4x1G SFP
Brand:
CISCO
- Dimensions (W, L, H), mm:445 x 240 x 44 mm
- Switch type:Fixed Port
- Total number of ports:28
- Main ports, typ:24x 10/100/1000Base-T
- Power over Ethernet (PoE):-
- Uplink ports:4xSFP
- Free (10GB) slots:-
- Stackable:-
- Fans_TEXT:Fanless
- Routing:Dynamic Layer 3 routing
- Memory (Flash, RAM):512 MB (Flash), 1 GB DDR4 (DRAM), 1.5 MB (Packet buffer)
- Routing/switching capacity, Gbps:56 Gbps
- Throughput, Mpps:41.66 Mpps
- MAC addresses:16 000 addresses
- VLAN (number, standards):Support for up to 4093 VLANs simultaneously; Port-based and 802.1Q tag-based VLANs, MAC-based VLAN, protocol-based VLAN, IP subnet-based VLAN; Management VLAN; Private/Guest/unauthenticated/Auto surveillance/CPE/Voice/Dynamic/Multicast TV VLAN
- QoS:8 hardware queues; Strict priority and WRR; Port-based, 802.1p VLAN priority-based, IPv4/v6 IP precedence/Type of Service (ToS)/DSCP-based, Differentiated Services (DiffServ), classification and remarking ACLs, trusted QoS Queue assignment based on DS...
- L2 network standards:IEEE 802.3, IEEE 802.3u/ab/ad/z/x/af/at; IEEE 802.1D (STP)/1Q/p VLAN/w RSTP/s Multiple STP/X Port Access Authentication; RFC
- IPv6 functionality:IPv6 host mode, IPv6 over Ethernet, dual IPv6/IPv4 stack; IPv6 neighbor and router discovery (ND); DAD, ICMP; DHCPv6; IPv6 over IPv4 network with ISATAP tunnel support; IPv6 QoS; ACL; First Hop Security; MLD
- Mounting option:Rackmount
- :100-240V 50-60 Hz, internal, universal
- :Cisco Business Dashboard; Cisco Business mobile app; Cisco Network Plug and Play (PnP) agent; Web user interface; SNMP; MIB; RMON; RSPAN; sFlow agent; DHCP; SCP; Other: Traceroute, single IP management, HTTP/HTTPS, SSH, RADIUS and etc.
- :SSH, SSL, IEEE 802.1x (authenticator role):RADIUS authentication and accounting, MD5 hash, guest VLAN, unauthenticated VLAN, single/multiple host mode, and single/multiple sessions; MAC/Web-based authentication; STP; DHCP; IPSG; DAI; IPMB; SCT; SSD; AC...
