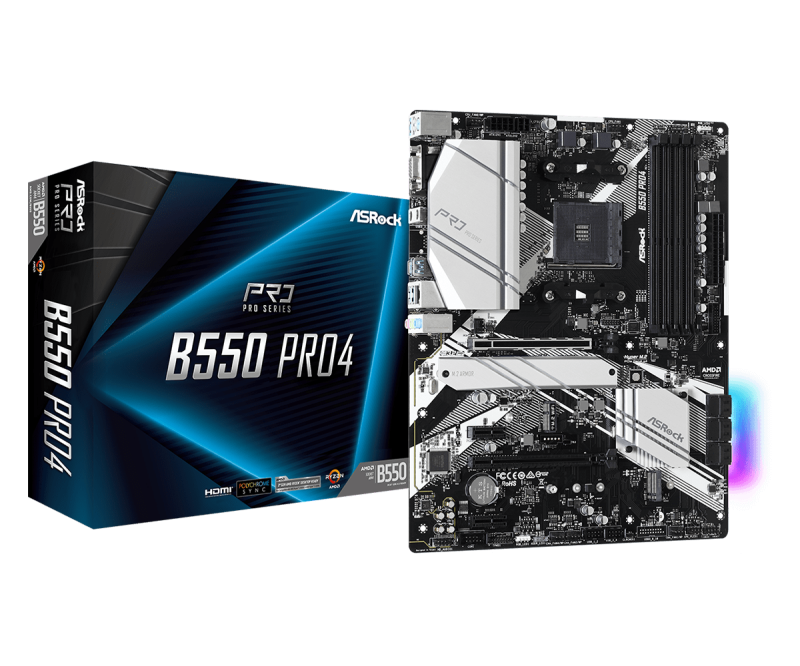

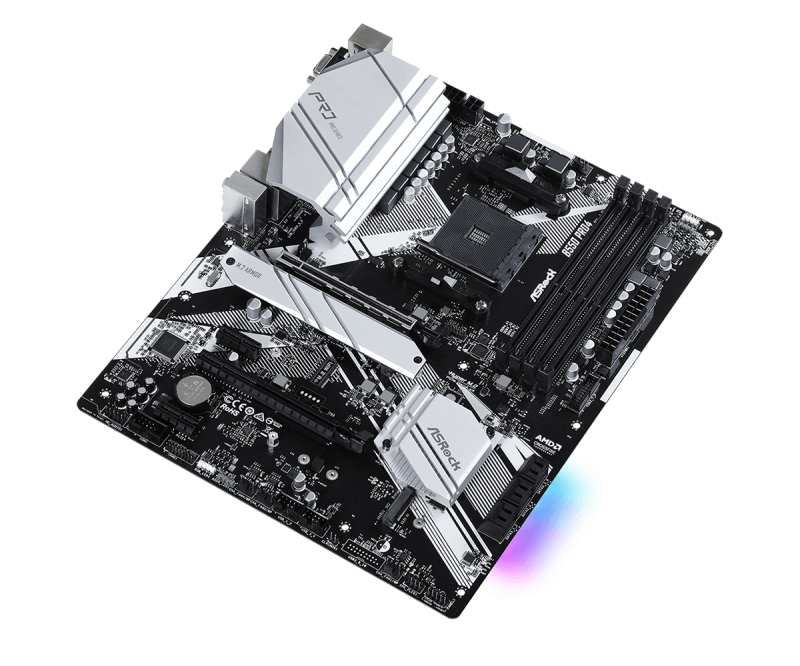

ASROCK B550 PRO4 /AM4
Brand:
ASROCK
- :- Dual Channel DDR4 Memory Technology; - 4 x DDR4 DIMM Slots; - AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) /...
- :- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*; - DirectX 12, Pixel Shader 5.0; - Shared memory default 2GB. Max Shared memory supports up to 16GB.**; - Dual graphics output: support HDMI and D-Sub ports by independent display contro...
- :- 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec); - Premium Blu-ray Audio support; - Supports Surge Protection; - PCB Isolate Shielding; - Individual PCB Layers for R/L Audio Channel; - Nahimic Audio
- :- PCIE x1 Gigabit LAN 10/100/1000 Mb/s; - Realtek RTL8111H; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE
- :AMD Ryzen series CPUs (Matisse); - 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)*; AMD Ryzen series APUs; - 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)*; - 2 x PCI Express 3.0 x1 Slots; - Supports AMD Qua...

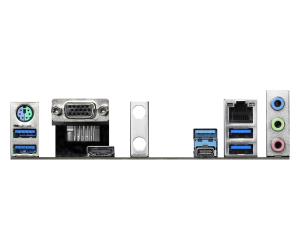

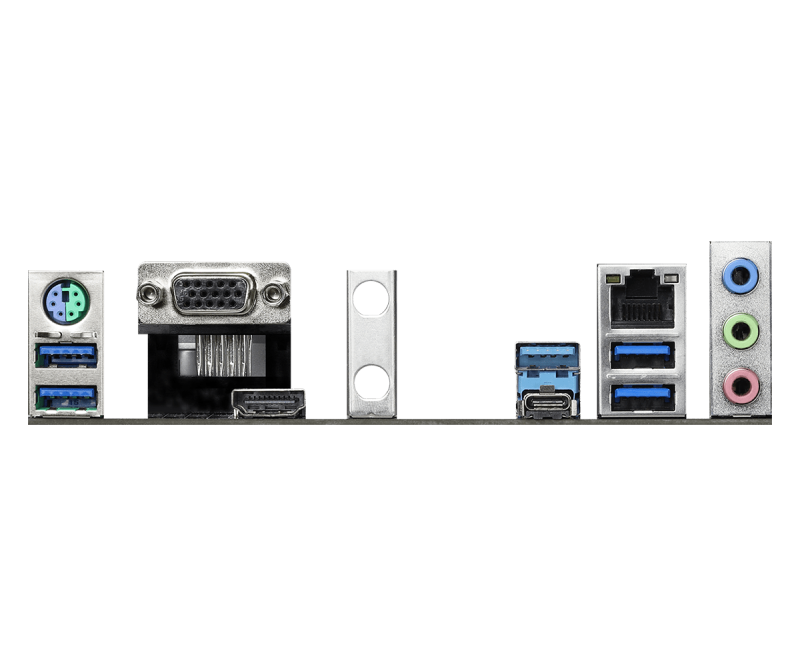

- :- Antenna Bracket; - 1 x PS/2 Mouse/Keyboard Port; - 1 x D-Sub Port; - 1 x HDMI Port; - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection); - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection); - 4 x USB 3.2 Gen1 Ports (Supp...
- :- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm; - Solid Capacitor design; - 2oz Copper PCB
- :- Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors*; - Digi Power design; - 8 Power Phase design
- :- AMD B550
- :- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*; - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s)**;...
- :- 1 x COM Port Header; - 1 x SPI TPM Header; - 1 x Power LED and Speaker Header; - 2 x RGB LED Headers*; - 2 x Addressable LED Headers**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control);; - 4 x C...
- :- 256Mb AMI UEFI Legal BIOS with GUI support; - Supports "Plug and Play"; - ACPI 5.1 compliance wake up events; - Supports jumperfree; - SMBIOS 2.3 support; - CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustm...
