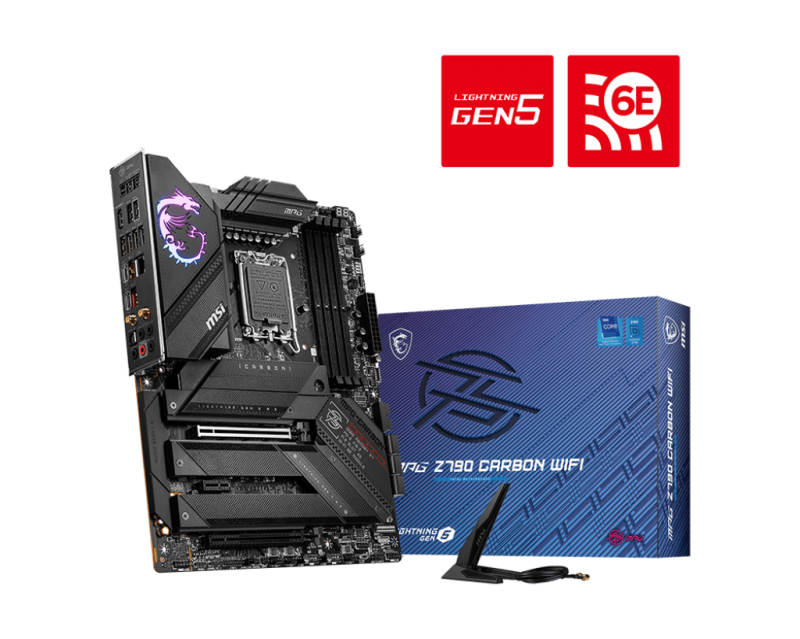

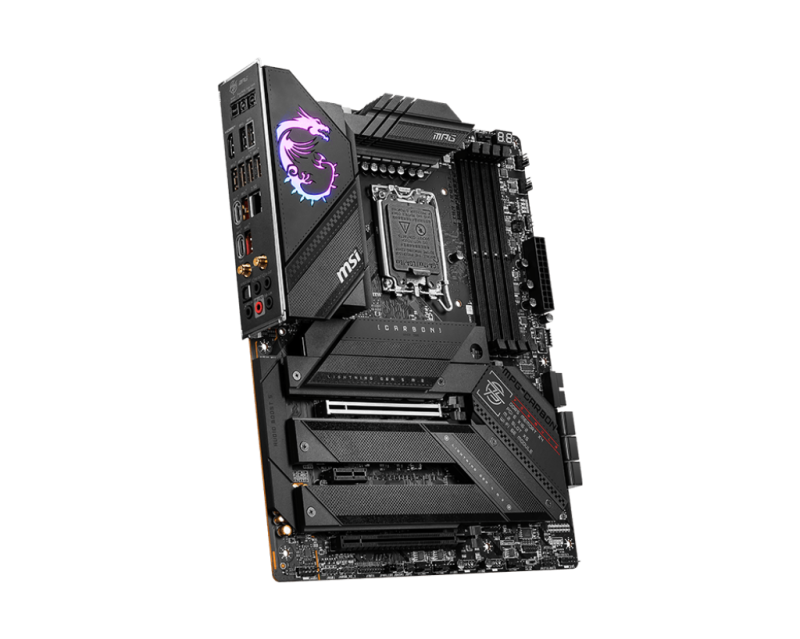

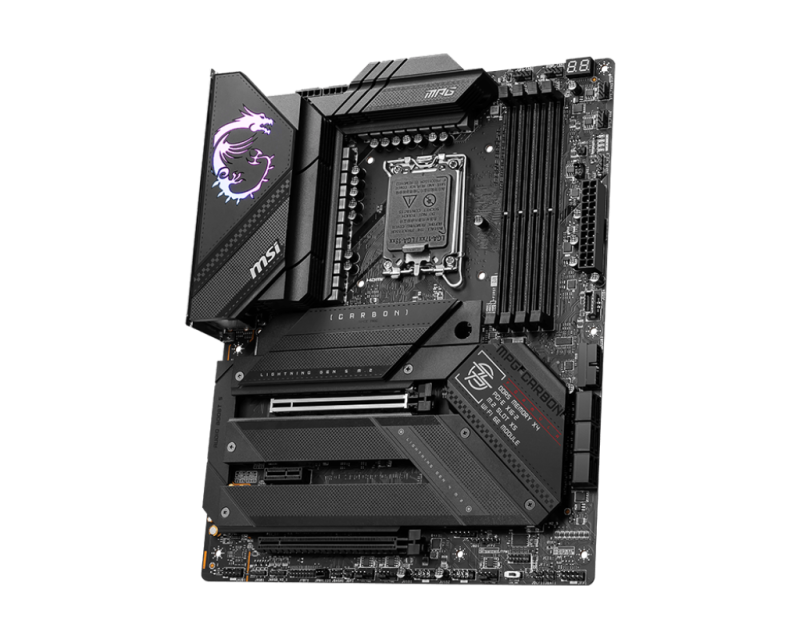

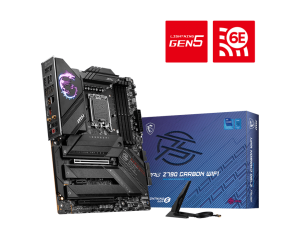

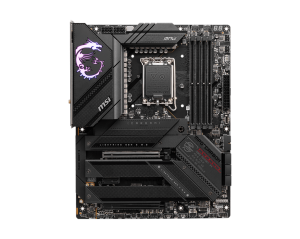

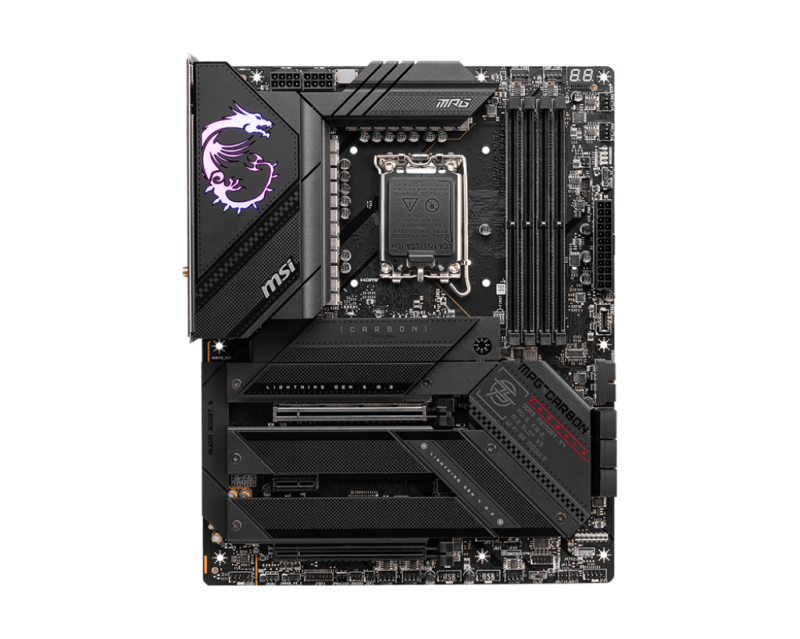

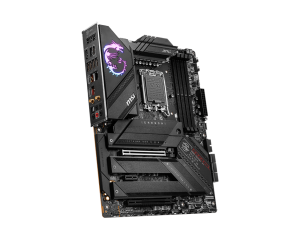

MSI MPG Z790 CARBON WIFI
Producător:
MSI
- :Intel® Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth® 5.3**, FIPS, FISMA
- :4x DDR5, Maximum Memory Capacity 192GB; Memory Support 7600+(OC)/ 7400 (OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequenc...
- :1x HDMI™; Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
- :Realtek® ALC4080 Codec; 7.1-Channel USB High Performance Audio; Supports up to 32-Bit/384 kHz playback on front panel
- :Intel® 2.5Gbps LAN

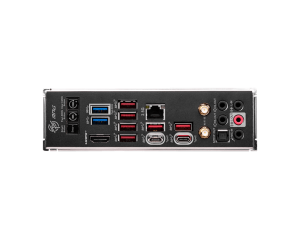

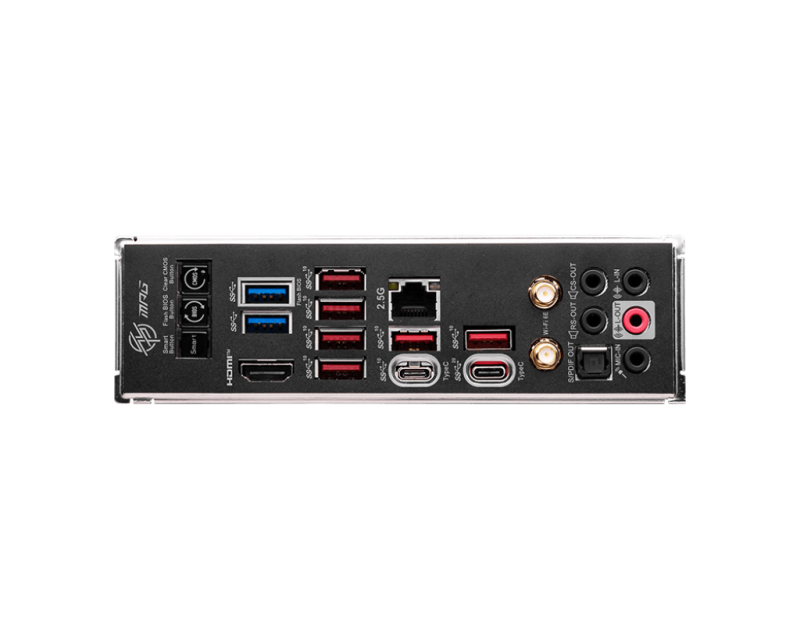

- :Clear CMOS / Flash; USB 3.2 Gen 1 5 Gbps (Type-A); 2.5G LAN; USB 3.2 Gen 2 10Gbps (Type-A); Audio Connectors; Smart Button; HDMI™; USB 3.2 Gen 2 10Gbps (Type-A); USB 3.2 Gen 2 10Gbps (Type-C); USB 3.2 Gen 2x2 20Gbps (Type-C); Wi-Fi / Bluetooth; Optical...
- :ATX ;243.84mmx304.8mm
- :Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700
- :INTEL Z790
- :5x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260...
- :1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 5x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x TBT connector (JTBT, supports RTD3); 1x Tuning Controller connector(JDASH); 2x...
