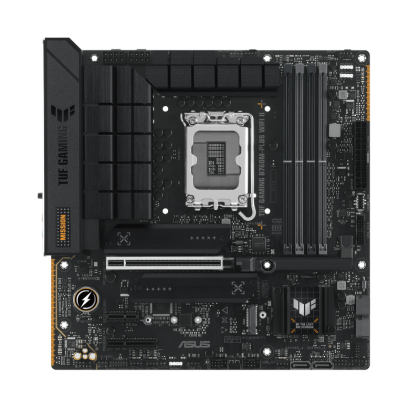

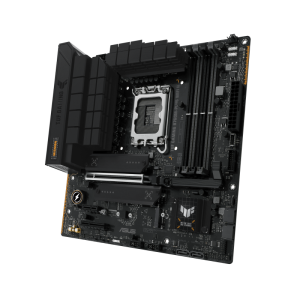

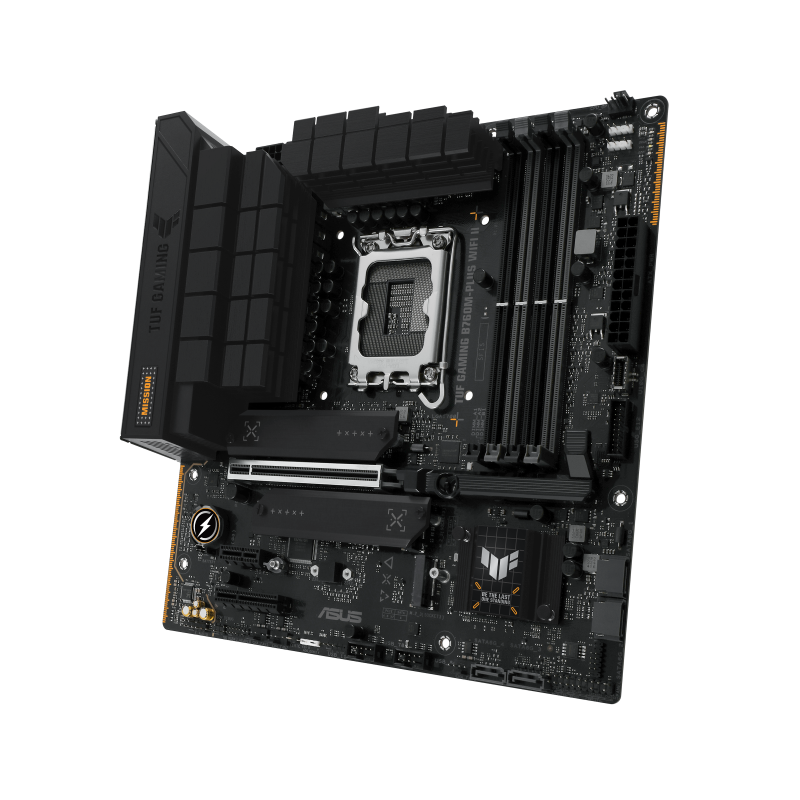

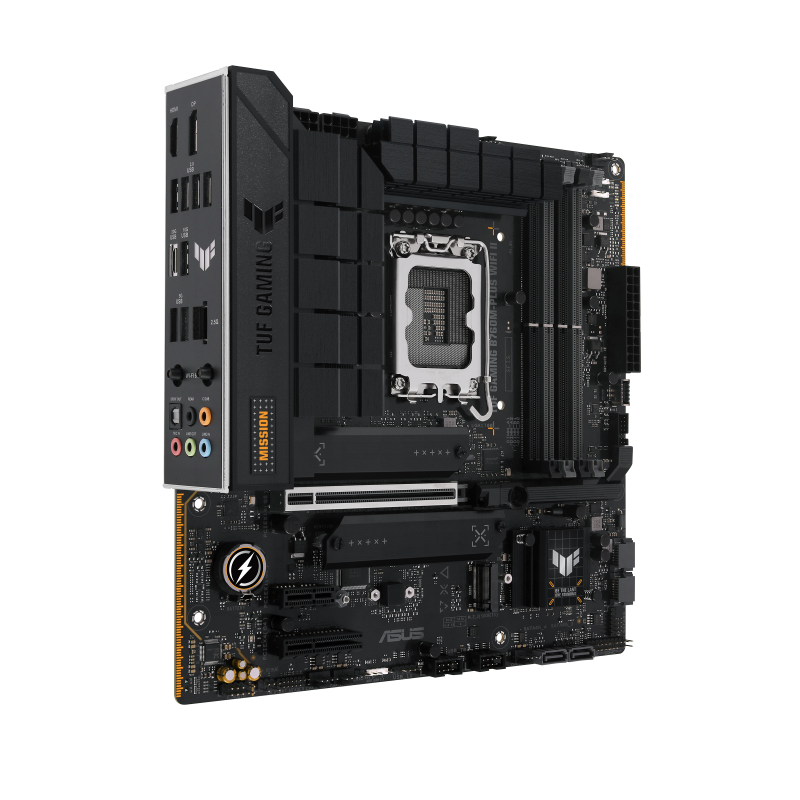

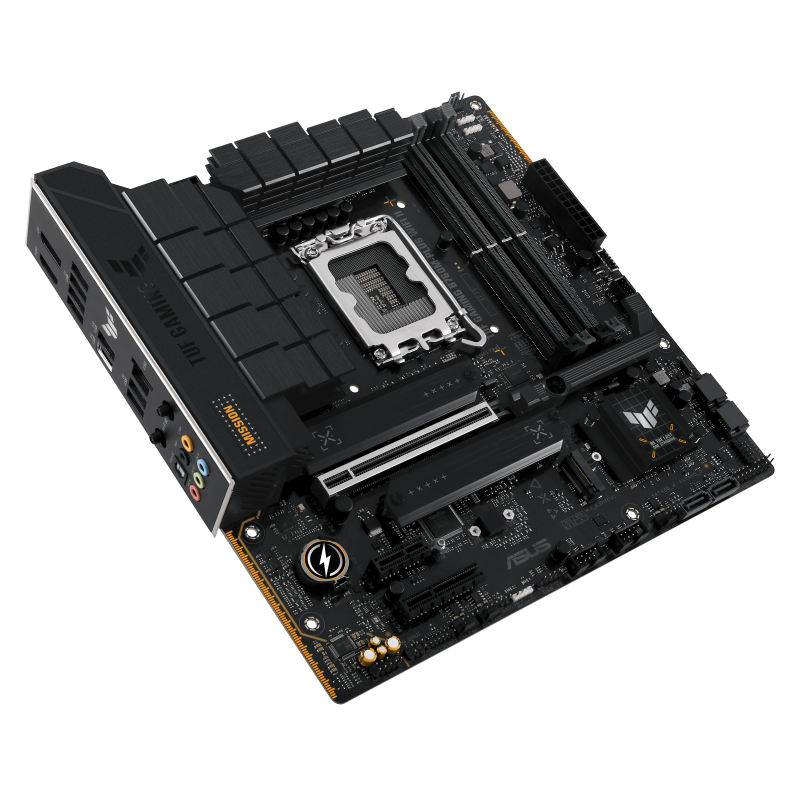

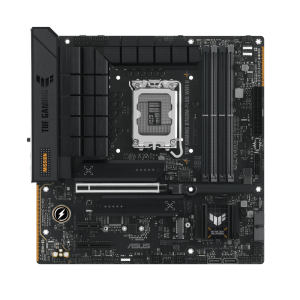

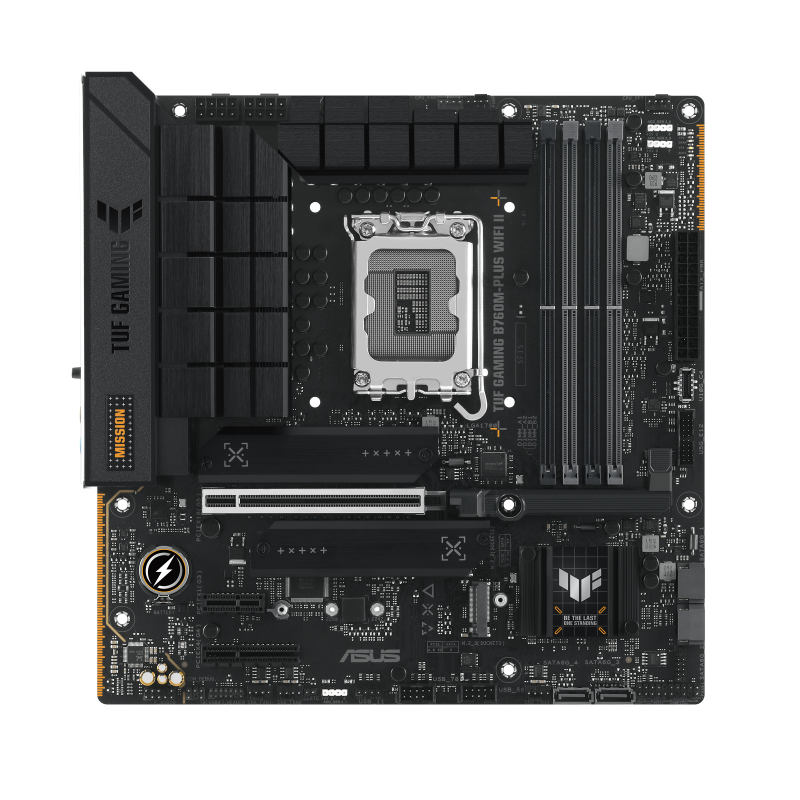

ASUS TUF GAM B760M-PLUS WIF II
Producător:
ASUS

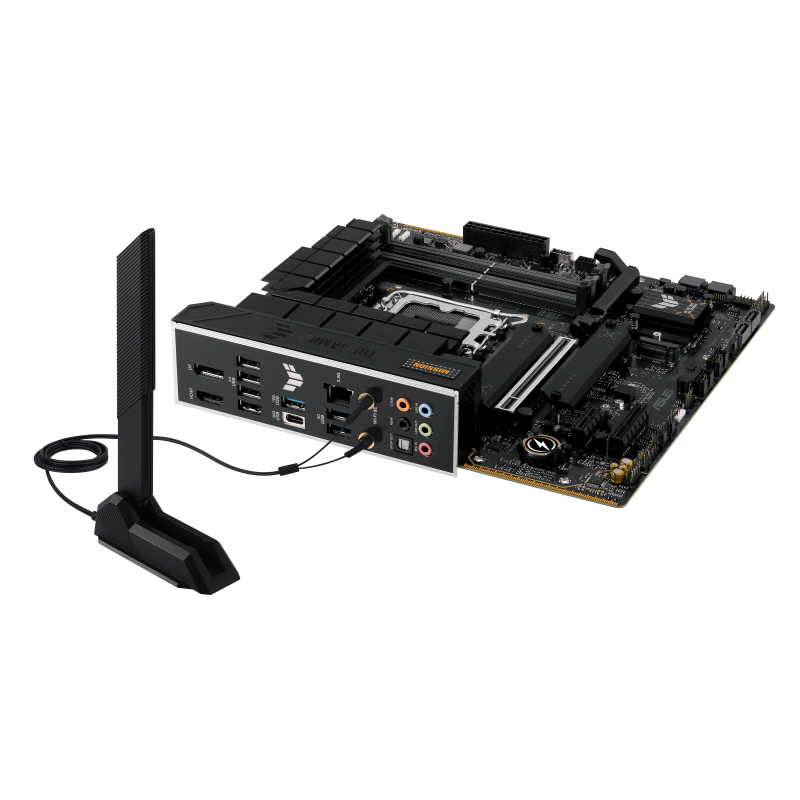

- :Wi-Fi 6E; 2x2 Wi-Fi 6E (802.11ax); Supports 2.4/5/6GHz frequency band*; Bluetooth® v5.3**
- :4 x DIMM slots, Max. 192GB, DDR5 7800+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); Opt...
- :1 x DisplayPort**; 1 x HDMI™port***
- :Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Rear optical S/PDIF out port; - Premium audi...
- :1 x Realtek 2.5Gb Ethernet; TUF LANGuard
- :Intel® CoreTM Processors (14th & 13th & 12th Gen)*; 1 x PCIe 5.0 x16 slot; Intel® B760 Chipset; 1 x PCIe 4.0 x4 slot; 1 x PCIe 3.0 x1 slot

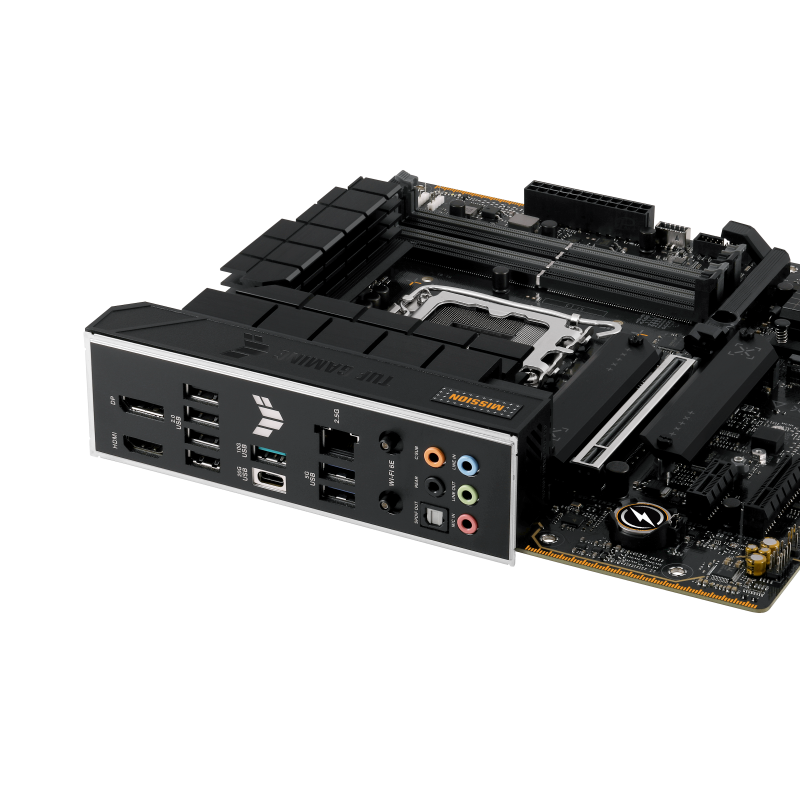

- :1 x USB 20Gbps port (1 x USB Type-C®); 1 x USB 10Gbps port (1 x Type-A); 2 x USB 5Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 1 x DisplayPort; 1 x HDMI™ port; 1 x Wi-Fi Module; 1 x Realtek 2.5Gb Ethernet port; 5 x Audio jacks; 1 x Optical...
- :mATX Form Factor; 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
- :Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
- :Intel® B760 Chipset
- :Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel® CoreTM Processors (14th & 13th & 12th Gen); M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel® B760 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4...
- :1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; 1 x 24-pin Main Power connector; 2 x 8-pin +12V Power connectors; 3 x M.2 slots (Key M) ; 4 x SATA 6Gb/s ports; 1 x USB 10Gbps connector (...
- :128 Mb Flash ROM, UEFI AMI BIOS
