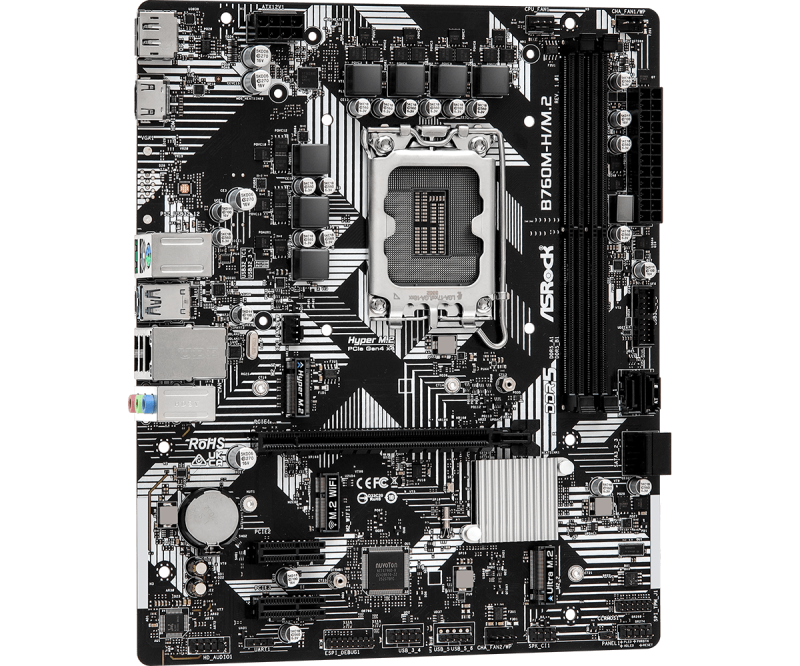

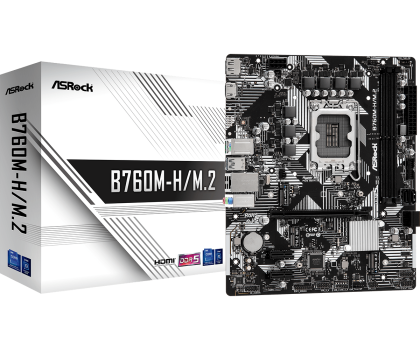

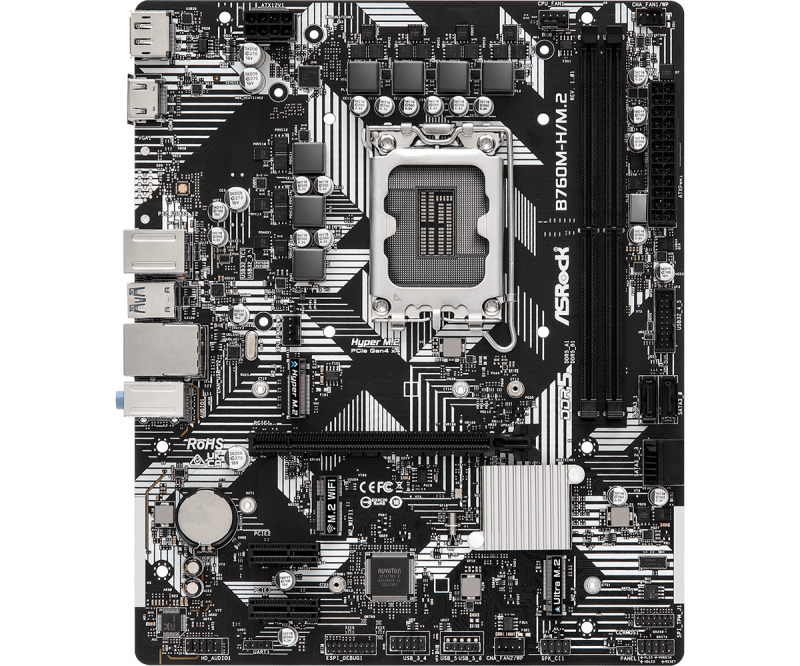

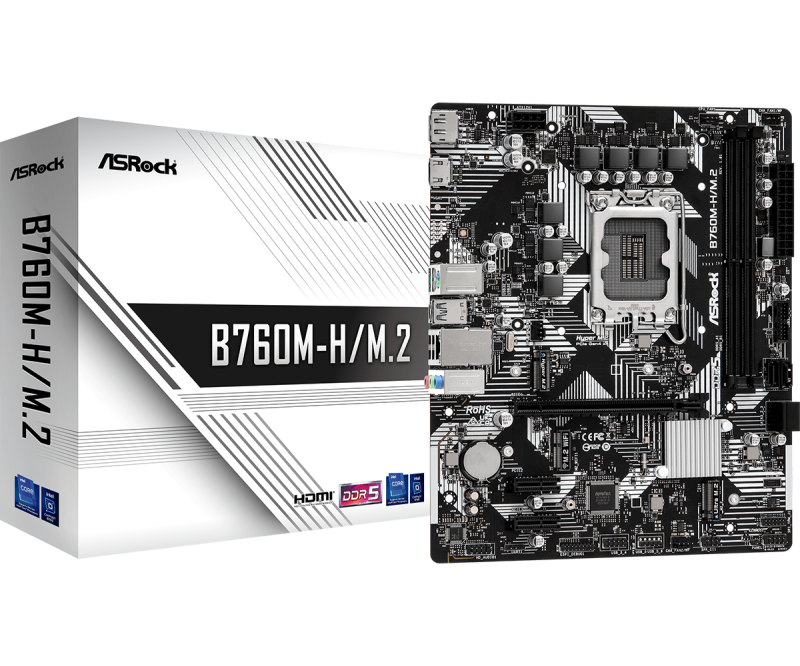

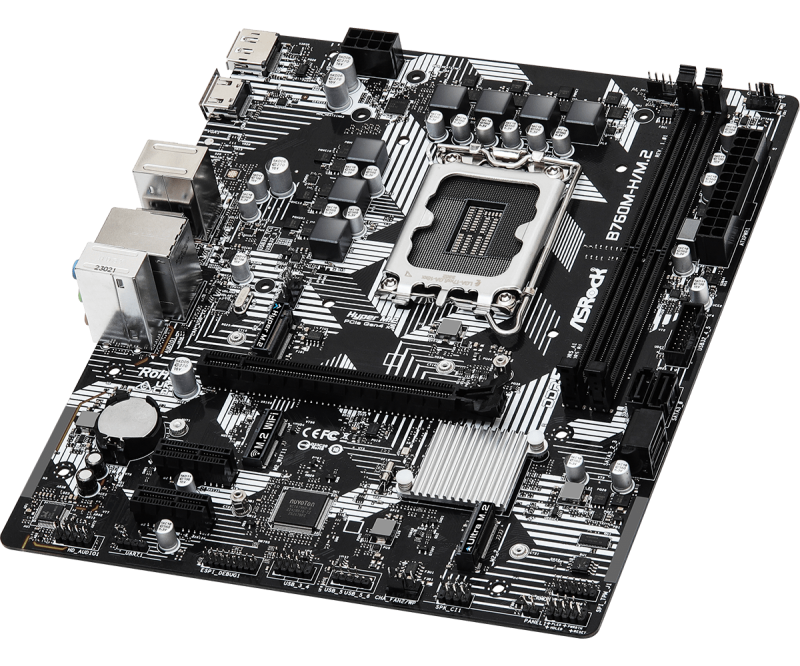

ASROCK B760M-H/M.2 /D5/LGA1700
Producător:
ASROCK
- :- Dual Channel DDR5 Memory Technology; - 2 x DDR5 DIMM Slots; - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*; - Max. capacity of system memory: 96GB; - Supports Intel® Extreme Memory Profile (XMP) 3.0
- :- Intel® Xe Graphics Architecture (Gen 12); - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
- :- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- :- Gigabit LAN 10/100/1000 Mb/s; - Realtek 8111H
- :CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*; Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

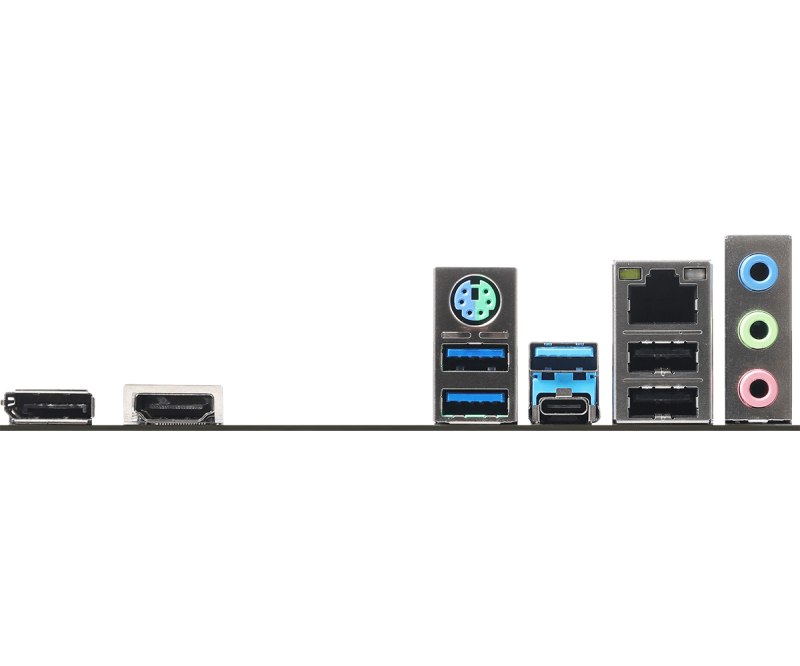

- :- 2 x Antenna Mounting Points; - 1 x PS/2 Mouse/Keyboard Port; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x USB 3.2 Gen1 Type-C Port; - 3 x USB 3.2 Gen1 Type-A Ports; - 2 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - HD Audio Jacks: Line in / Front Speaker...
- :- Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
- :- Supports 13th Gen & 12th Gen and next gen Intel® Core™ Processors (LGA1700); - Supports Intel® Hybrid Technology; - Supports Intel® Turbo Boost Max 3.0 Technology; - Supports Intel® Thermal Velocity Boost (TVB); - Supports Intel® Adaptive Boost Techn...
- :- Intel® B760
- :CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*; - 4 x SATA3 6.0 Gb/s Connectors
- :- 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x CPU Fan Connector (4-pin)*; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**; - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***; -...
- :- 128Mb AMI UEFI Legal BIOS with GUI support
