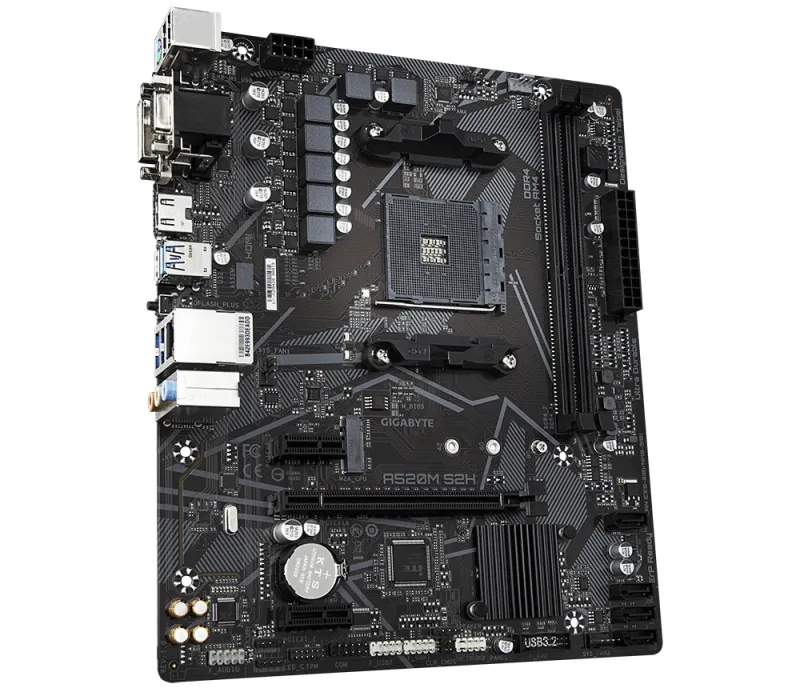

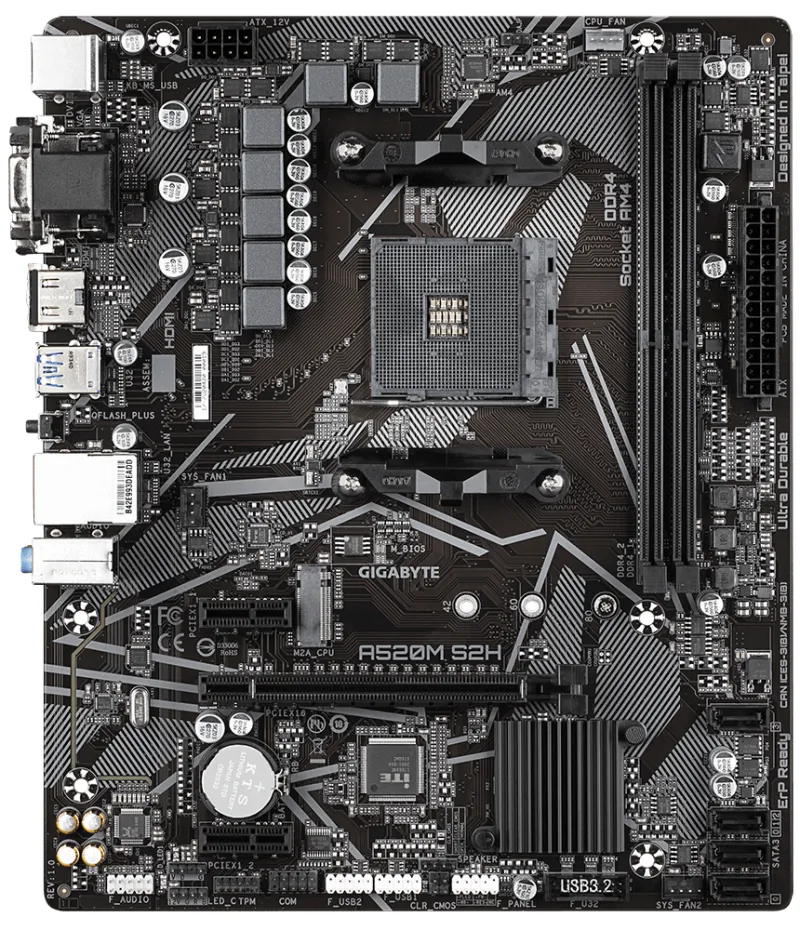

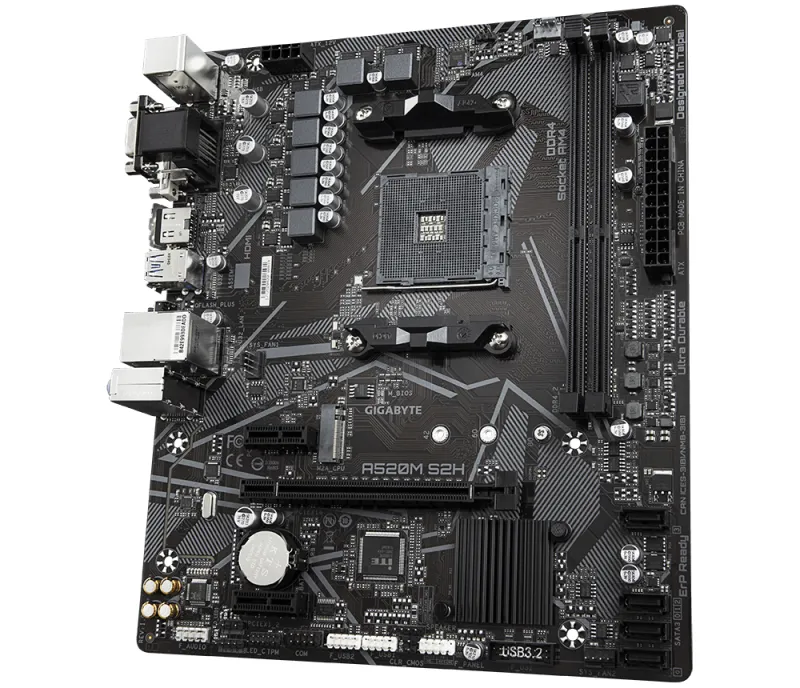

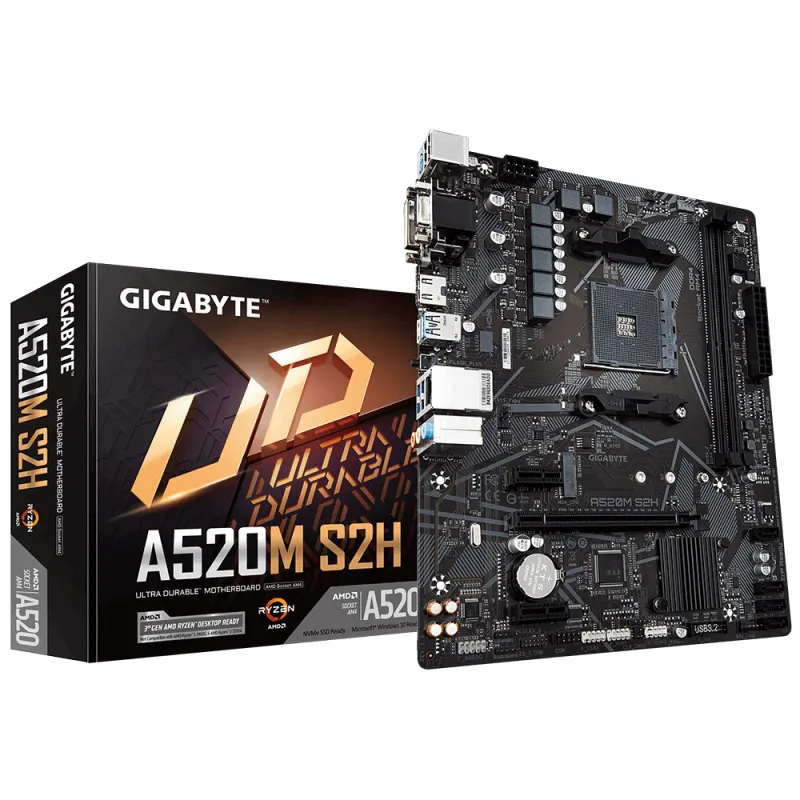

Motherboard GIGABYTE A520M-S2H, Socket AM4
Brand:
GIGABYTE
-
CPU supports:5000 Series AMD Ryzen
-
Memory Standard:DDR4
-
Maximum Memory Supported:64 GB
-
Number of Memory Slots:2
-
Frequency Memory:5100(OC) MHz
-
Support Dualchannel:Yes
-
Integrated Audio:Realtek ALC887
-
Integrated LAN:Realtek GbE LAN (10/100/1000 Mbit)
-
PCI-E x16:1 x PCIe 3.0/2.0 x16
-
Interface Serial ATA:4 x SATA3 6.0 Gb/s
-
Connectors:1 x Q-Flash Plus button
-
USB Ports:2 x USB 2.0
-
PCI-E x1:2
-
M2 socket:1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
-
Raid support:0,1,10
-
CPU Socket:AM4
-
Power Connector:1 x 24-pin;1 x 8-pin
-
Chipset:AMD A520
