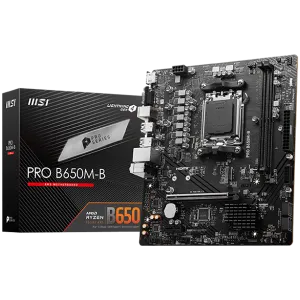

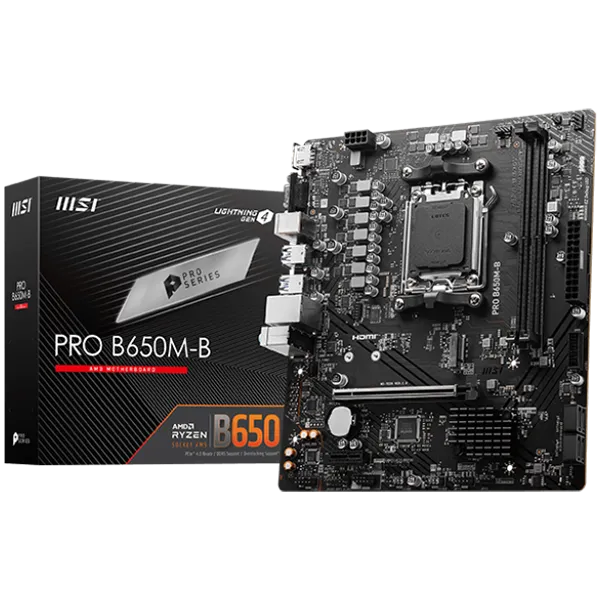

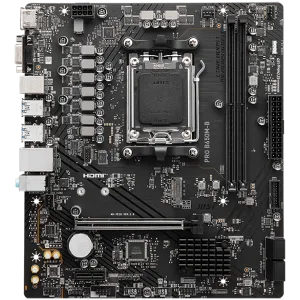

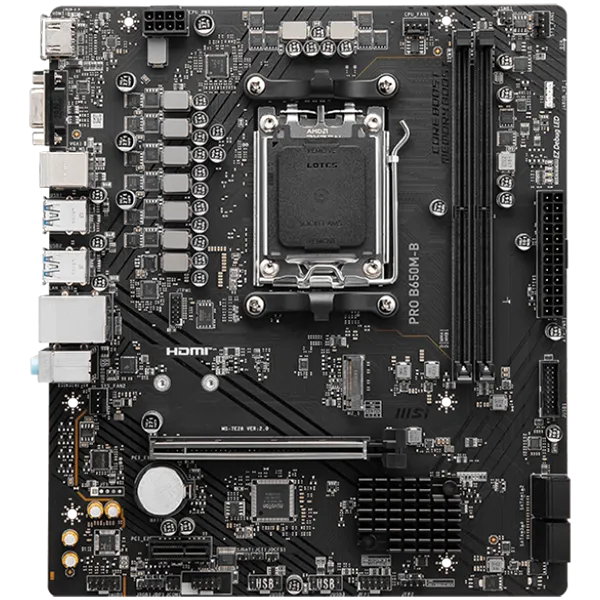

MSI Main Board Desktop PRO B650M-B (AM5, 2x DDR5, 1xHDMI, 1x VGA, 1x PCI-E x16, 1x PCI-E x1, 1x M.2, 4x SATA 6G, 6x USB 3.2 Gen1 Type A, 6x USB 2.0 , 2.5G LAN) mATX
Brand:
MSI
-
Width:215 мм
-
Height:243.84 мм
-
Warranty products - subject to return:Да
-
Warranty terms (month):36 мес.
-
Criteria for warranty validity:Сериен номер
-
Package Depth (mm):260 мм
-
Package Width (mm):257 мм
-
Package height (mm):55 мм
-
Package Weight - Gross (kg):0.92 кг
-
Number per pack:20
-
Carton Weight - Gross (kg):18.4 кг
-
Packages in a carton:1
-
EAN code:4711377144797
-
Package type:С опаковка
-
HDMI:1 (HDMI (Type A))
-
VGA:1 (15-pin D-sub)
-
Retail Packaging Net Weight Carton:0.2 кг
-
Retail Packaging Net Weight Plastic:0.06 кг
-
Package Weight - Net (kg):0.56 кг
-
USB 2.0:2 (USB 2.0 (type A))
-
Audio interface:3 (3.5 мм мини жак)
-
Accessories included:I/O Shield <br/>Ръководство за употреба <br/>Screws
-
Supported data exchange protocols:2.5 Gbps
-
Supported operating system:Microsoft Windows 10 64-bit <br/>Microsoft Windows 11 64-bit
-
Device location:Вграден
-
Audio output type:7.1 канален съраунд
-
Cables included:SATA Cable
-
Processor:AMD Ryzen 7000 Series <br/>AMD Ryzen 8000 Series
-
EAN Code:4711377144797
-
CPU socket:Socket AM5
-
USB 3.2 Gen 1:4 (USB 3.2 (type A))
-
Network card chipset:Realtek RTL8125BG
-
Chipset on the motherboard:AMD B650
-
Memory speed/frequency:4800MHz(PC5-38400)
-
Total number of memory slots:2
-
Compatible audio standards:High Definition Audio
-
Memory form factor:DIMM 288-pin
-
Audio chipset:Realtek ALC897
-
Max. number of installed processors:1
-
It offers an error checking method:non-ECC
-
Maximum amount of installed memory:96 GB
-
Built-in:<b>Storage Controller:</b><br/>PCIe 4.0 x4/SATA (1 x M.2)<br/><b>Storage Controller:</b><br/>Supports: Ниво 0, Ниво 1, Ниво 10<br/>SATA III-600 (4)<br/>
-
Memory characteristics:Two DDR Channels <br/>Небуферирана <br/>Dual Rank <br/>Single Rank <br/>AMD EXPO
-
PS/2:2
-
PCI Express 3.0 x1:1
-
Audio integrated:Да
-
LAN integrated:Да
-
PCI Express 4.0 x16:1
-
:Micro ATX
-
:DDR5 SDRAM
