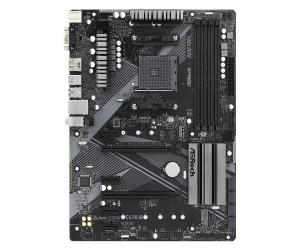

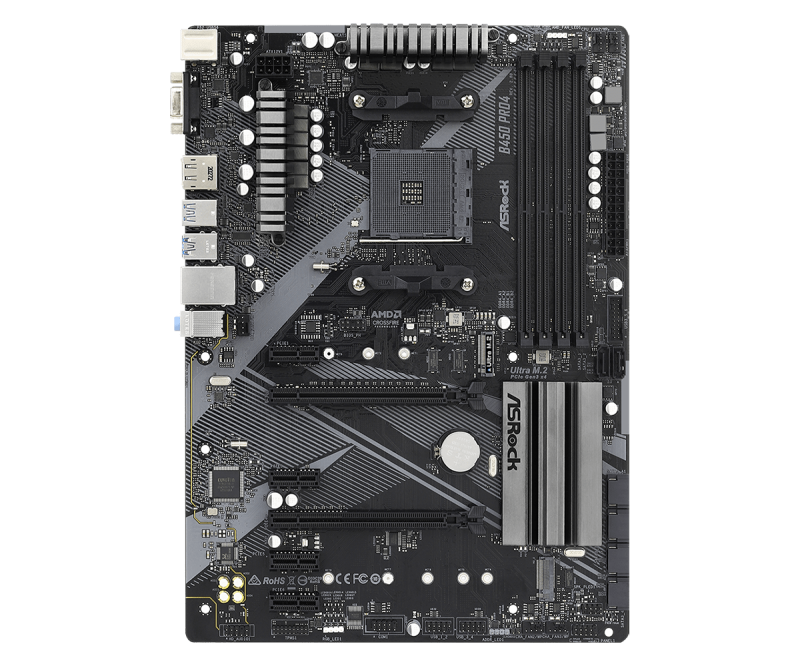

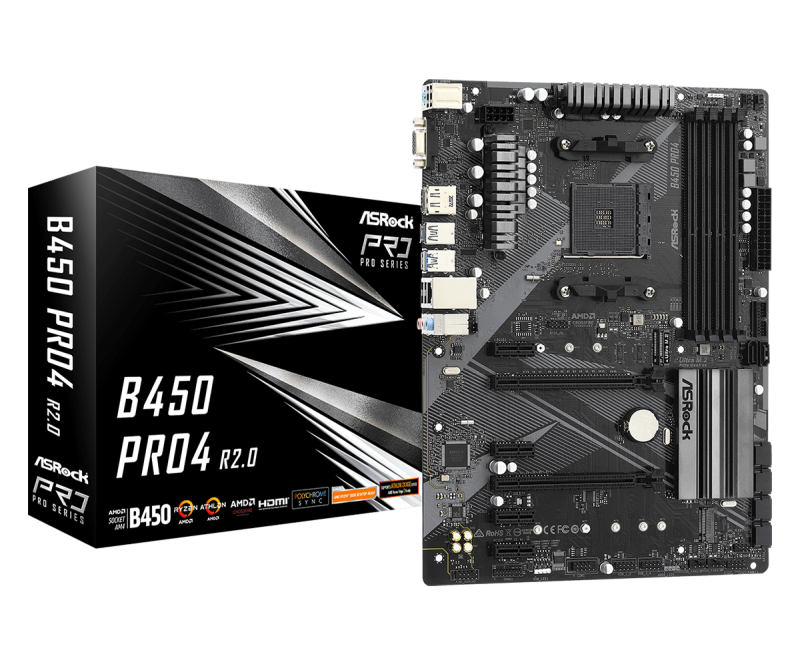

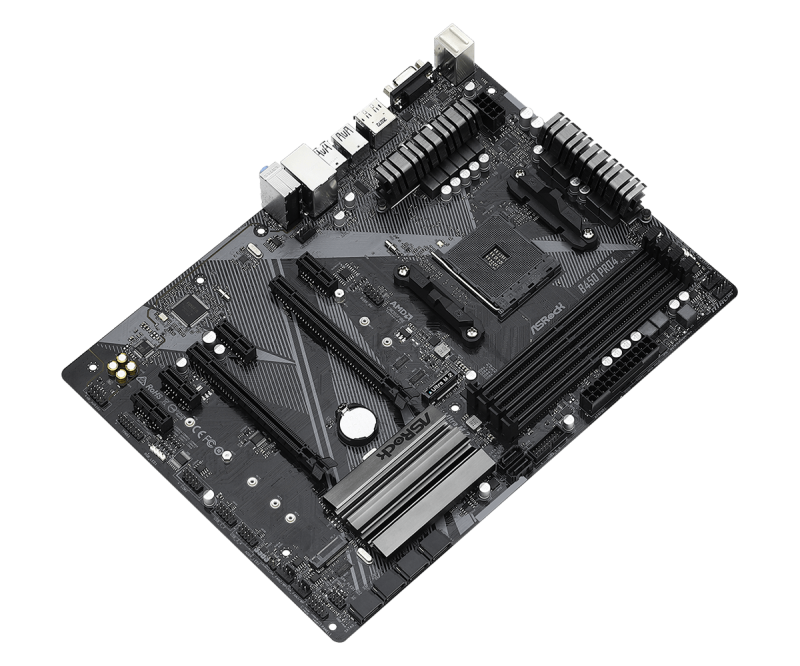

ASROCK B450 PRO4 R2.0 /AM4
Brand:
ASROCK
- :ASRock Inc.
- :- Dual Channel DDR4 Memory Technology; - 4 x DDR4 DIMM Slots; - AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC)...
- :Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*; DirectX 12, Pixel Shader 5.0; Three graphics output options: D-Sub, HDMI and DisplayPort 1.2; Supports Triple Monitor; Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @...
- :- 7.1 CH HD Audio with Content Protection (Realtek ALC892/897 Audio Codec) - Supports Surge Protection
- :- PCIE x1 Gigabit LAN 10/100/1000 Mb/s; - Realtek RTL8111H; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE
- :AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge); - 2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)*; AMD Ryzen series CPUs (Picasso, Raven Ridge); - 2 x PCI Express 3.0 x16 Slots (PCIE2: x8 mode; PCIE4: x4 mode)*; AMD A...

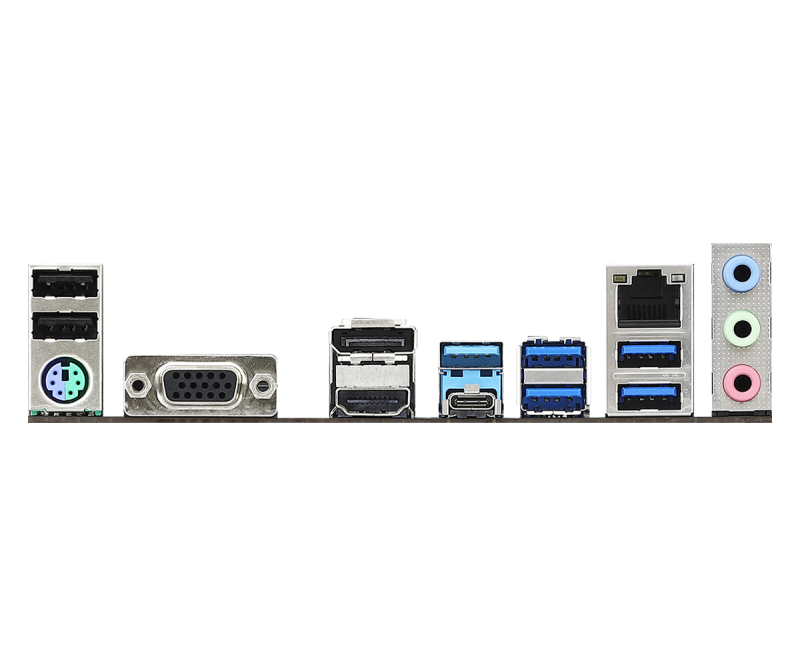

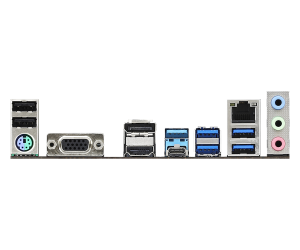

- :- 1 x PS/2 Mouse/Keyboard Port; - 1 x D-Sub Port; - 1 x HDMI Port; - 1 x DisplayPort 1.2; - 2 x USB 2.0 Ports (Supports ESD Protection); - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection); - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Suppo...
- :- ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm - Solid Capacitor design
- :- Supports AMD AM4 Socket Ryzen™ 2000, 3000 and 5000 Series Desktop Processors; - Digi Power design; - 10 Power Phase design
- :- AMD Promontory B450
- :- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*; - 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug; - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M...
- :- 1 x COM Port Header; - 1 x TPM Header; - 1 x Power LED and Speaker Header; - 1 x RGB LED Header*; - 1 x Addressable LED Header**; - 1 x AMD Fan LED Header***; - 1 x CPU Fan Connector (4-pin)****; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan...
- :- 128Mb AMI UEFI Legal BIOS with multilingual GUI support; - Supports "Plug and Play"; - ACPI 5.1 compliance wake up events; - Supports jumperfree; - SMBIOS 2.3 support; - DRAM Voltage multi-adjustment
