GB B550 AORUS ELITE V2
Brand:
GIGABYTE
- :4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory; 3rd Gen AMD Ryzen™ Processors: Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules; 3rd Gen AMD Ryz...
- :Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors: 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz; * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 1 x HDMI port, supporting a maximum resolution...
- :Realtek® ALC1200 codec; High Definition Audio; 2/4/5.1/7.1-channel; Support for S/PDIF Out
- :Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
- :1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode; - 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode; * For optimum performance, if only one...

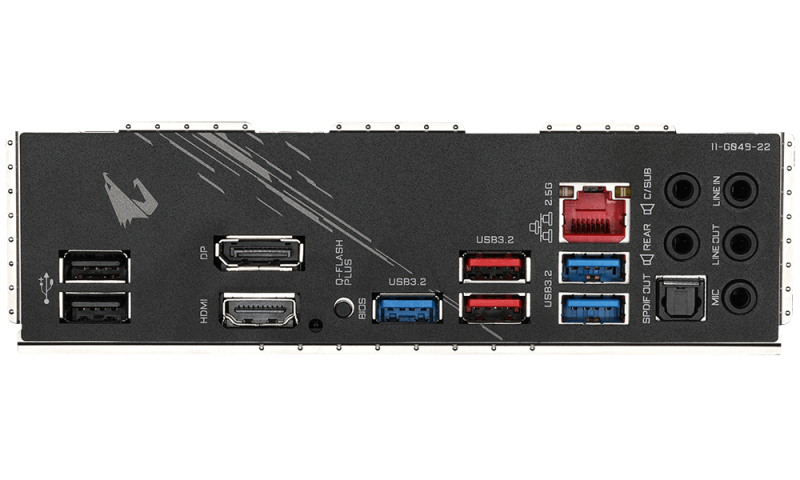

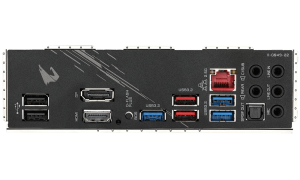

- :1 x DisplayPort; 1 x HDMI port; 2 x USB 3.2 Gen 2 Type-A ports (red); 3 x USB 3.2 Gen 1 ports; 2 x USB 2.0/1.1 ports; 1 x Q-Flash Plus button; 1 x RJ-45 port; 1 x optical S/PDIF Out connector; 5 x audio jacks
- :ATX Form Factor; 30.5cm x 24.4cm
- :AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
- :AMD B550
- :1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: - 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs; - 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors su...
- :1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x CPU fan header; 1 x water cooling CPU fan header; 3 x system fan headers; 1 x CPU cooler LED strip/RGB LED strip header;...
- :1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
