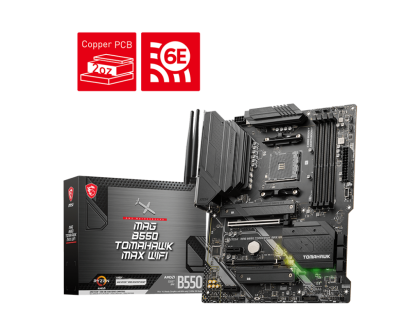

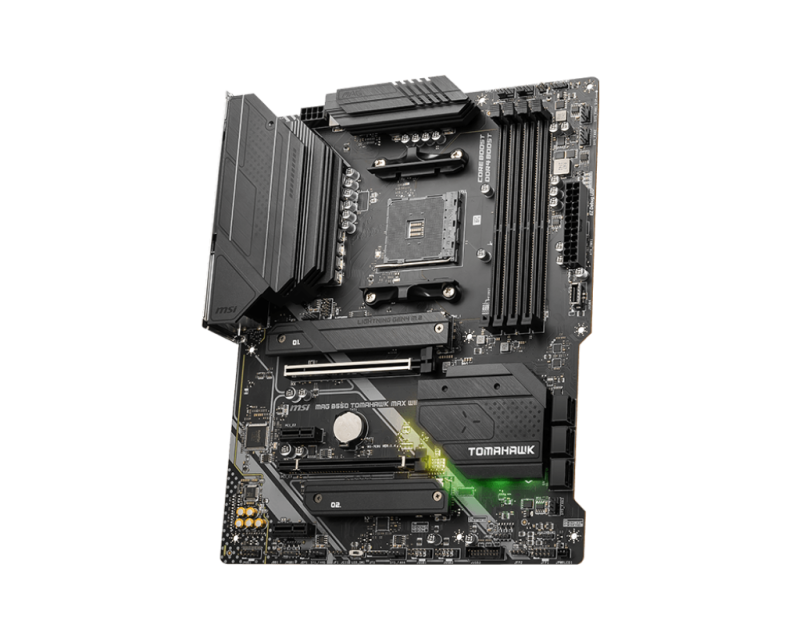

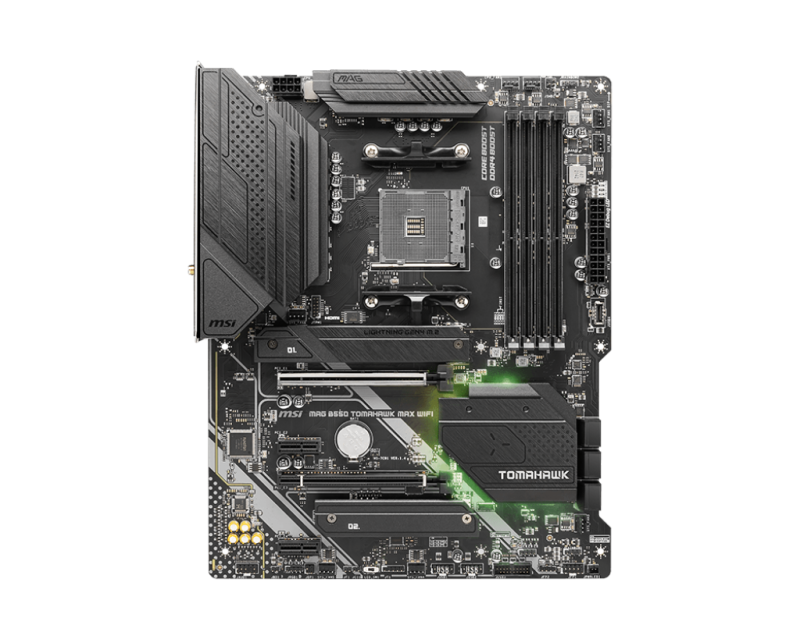

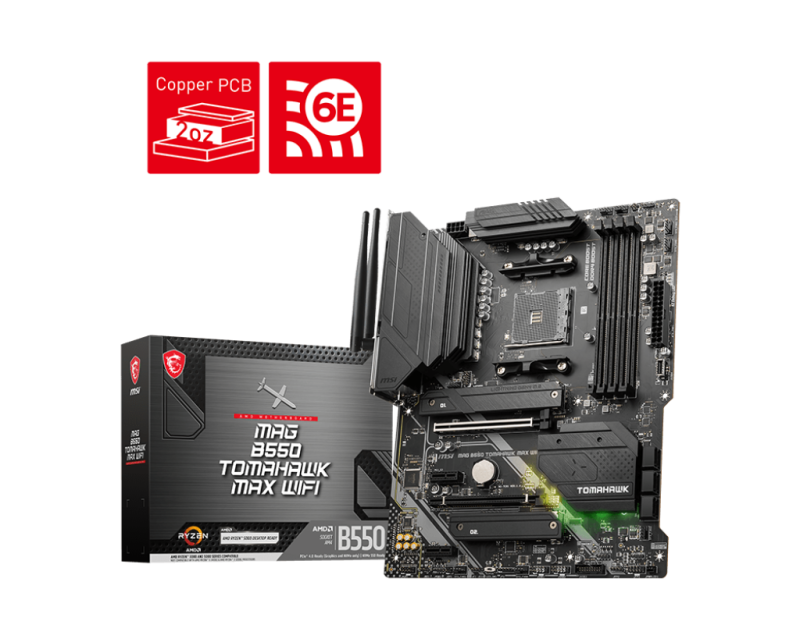

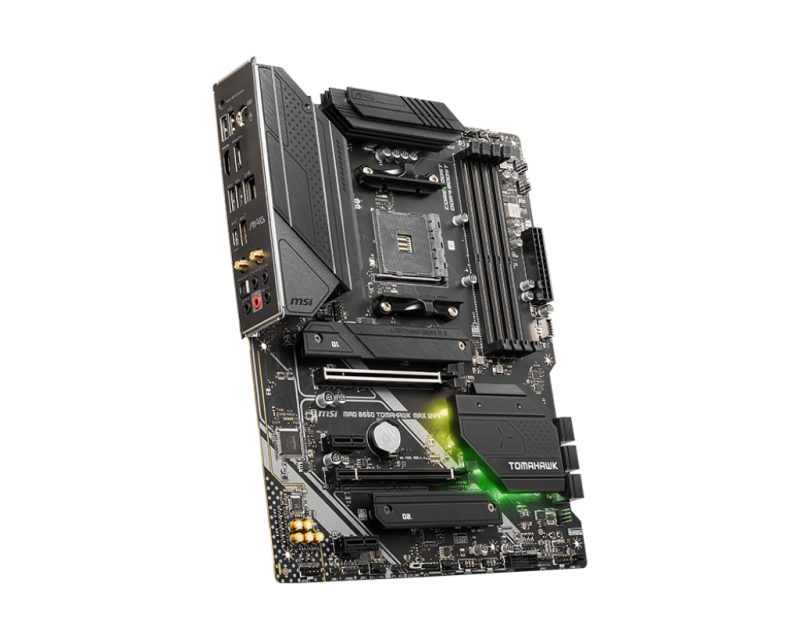

MSI MAG B550 TOMAHAWK MAX WIFI
Brand:
MSI
- :AMD® Wi-Fi 6E1; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX; Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth® 5.22
- :4 x DDR4 memory slots, support up to 128GB 1; Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 486...
- :1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2; Support HDCP 1.4 & 2.3; 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1; Maximum shared memory of 16 GB
- :Realtek® ALC897 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output
- :1x Realtek® RTL8125B 2.5Gbps LAN controller
- :1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1; 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2; 2x PCIe 3.0 x1 slots

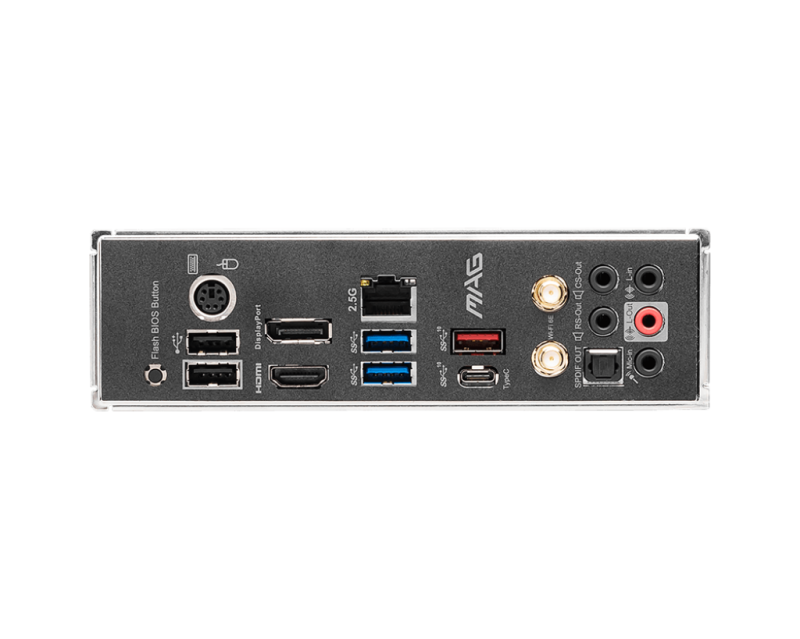

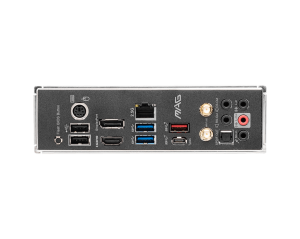

- :Keyboard / Mouse; DisplayPort 1.4; 2.5G LAN Port; USB 3.2 Gen 2 10Gbps Type-A; Wi-Fi / Bluetooth Antenna; Audio Connectors; Flash BIOS Button; USB 2.0 Port; HDMI™ 2.1 Port; USB 3.2 Gen 1 5Gbps Type-A; USB 3.2 Gen 2 10Gbps Type-C; Optical S/PDIF OUT
- :ATX Form Factor;12 in. x 9.6 in. (30.5 cm x 24.4 cm)
- :Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
- :AMD B550 Chipset
- :AMD B550 Chipset: 6x SATA 6Gb/s ports; 2x M.2 slots (Key M); M2_1 slot (from AMD Processor); Supports PCIe 4.0/ 3.0 x4 1; Supports SATA 6Gb/s; Supports 2242/ 2260/ 2280/ 22110 storage devices; M2_2 slot (from AMD B550 chipset); Supports PCIe 3.0x4; Sup...
- :1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 6x SATA 6Gb/s connectors; 2x M.2 slots (M-Key); 1x USB 3.2 Gen 1 5Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 con...
