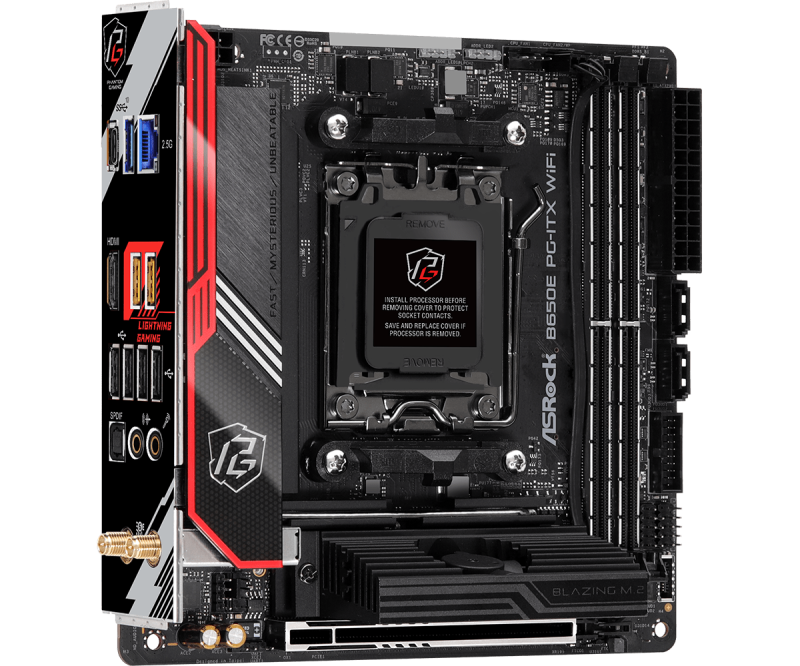

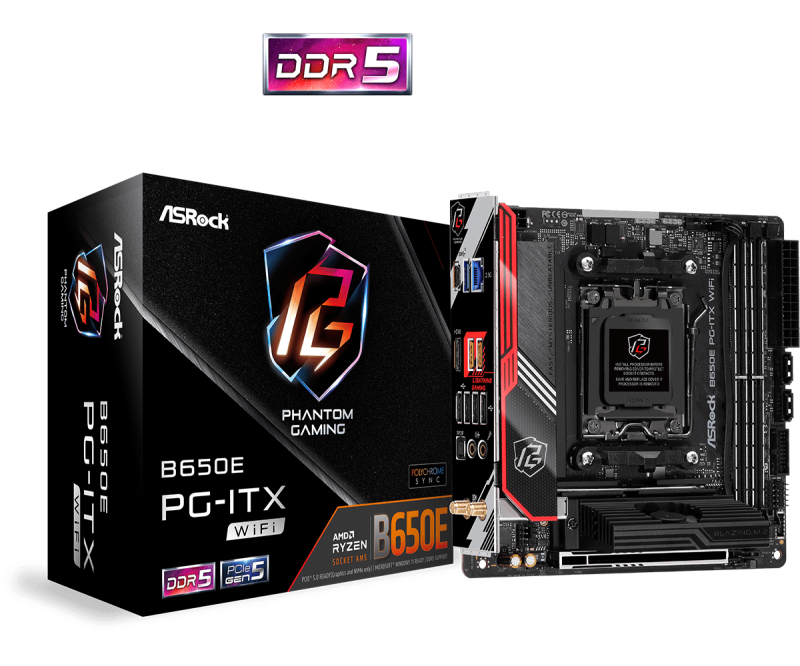

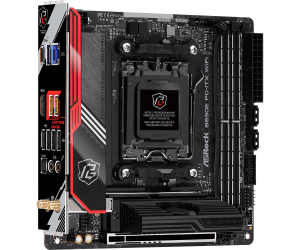

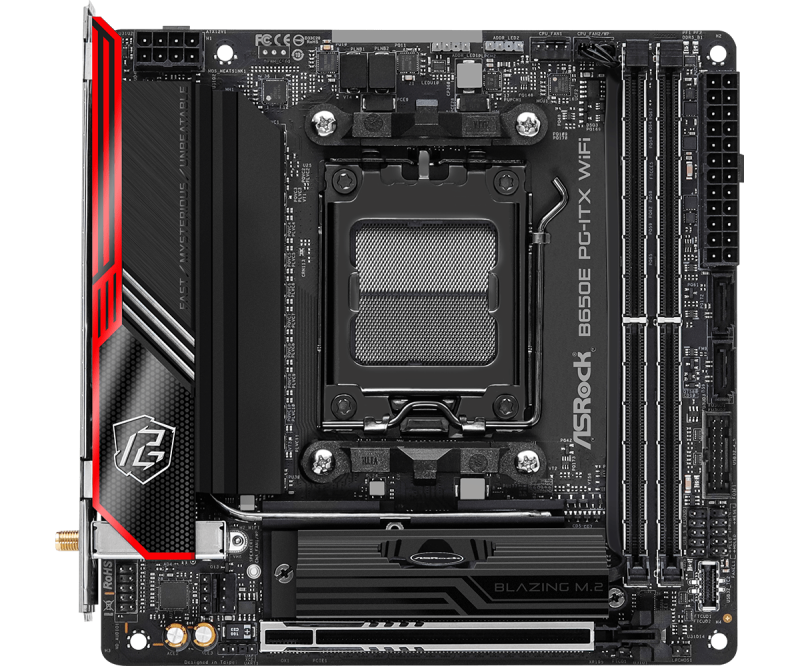

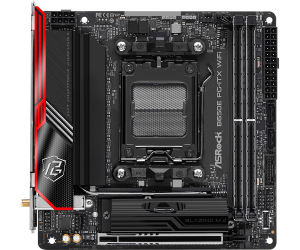

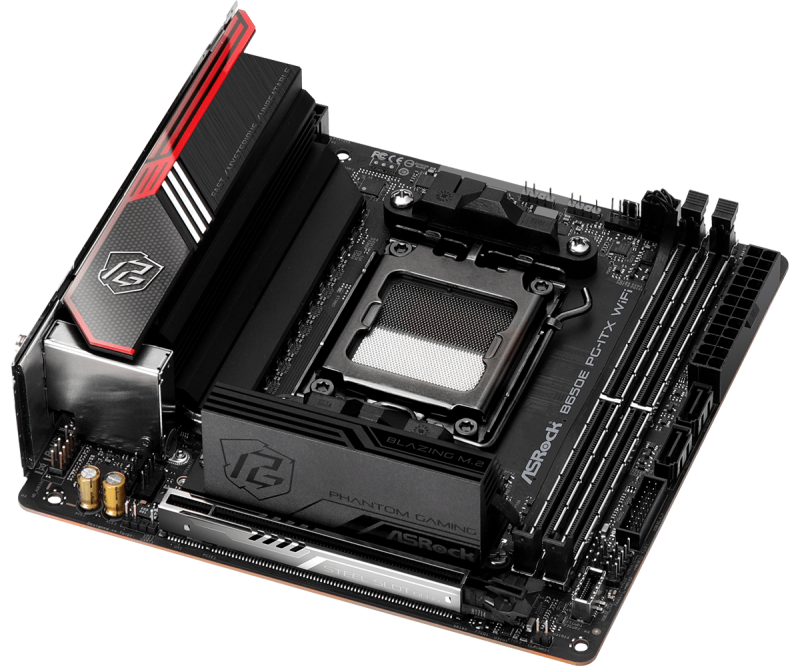

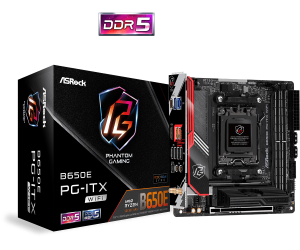

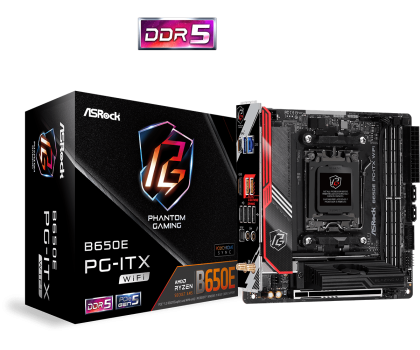

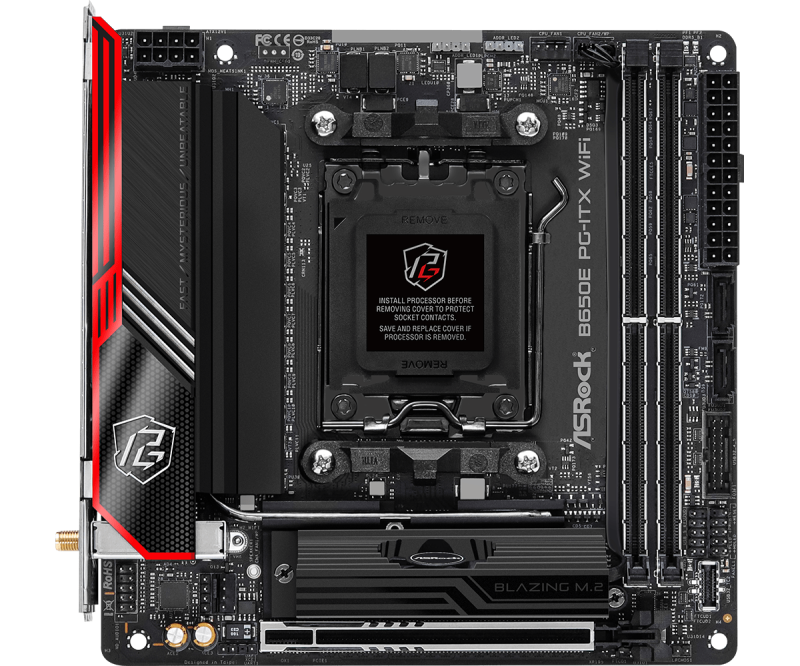

ASROCK B650E PG-ITX WIFI /AM5
Brand:
ASROCK
- :- 802.11ax Wi-Fi 6E Module; - Supports IEEE 802.11a/b/g/n/ac/ax; - Supports Dual-Band 2x2 160MHz with extended 6GHz band support*; - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology; - Supports Bluetooth 5.3 + High speed class II;...
- :- Dual Channel DDR5 Memory Technology; - 2 x DDR5 DIMM Slots; - Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC); - Max. capacity of system memory: 96GB; - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) mem...
- :Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU); - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz; - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- :- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec); - Impedance Sensing on Rear Out port; - Individual PCB Layers for R/L Audio Channel; - Nahimic Audio
- :- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Killer E3100G; - Supports Killer LAN Software; - Supports Killer DoubleShot™ Pro
- :CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*; Chipset: - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

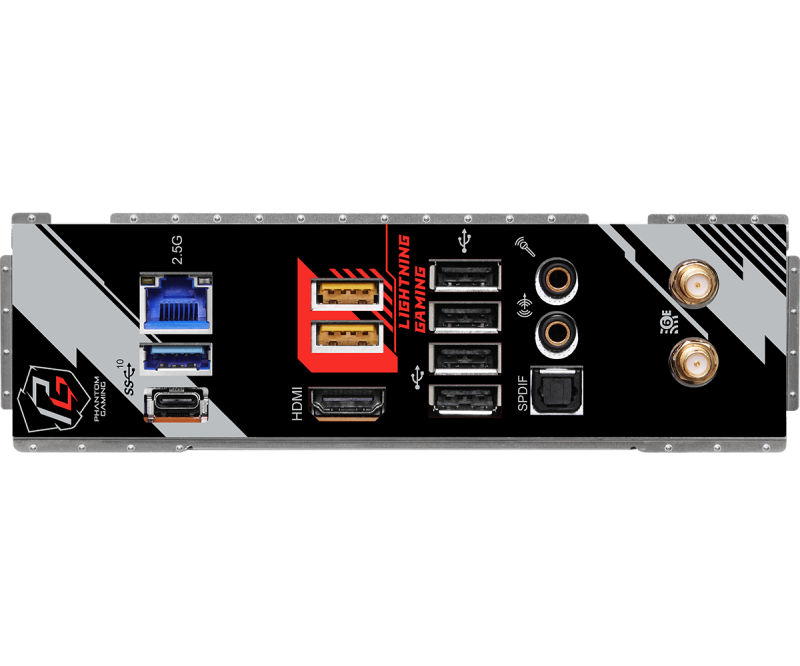

- :- 2 x Antenna Ports; - 1 x HDMI Port; - 1 x Optical SPDIF Out Port; - 3 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_23 are Lightning Gaming Ports.); - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s); - 4 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - 1 x Line Out Ja...
- :- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm; - 10 Layer PCB
- :- Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
- :- AMD B650
- :CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*; - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*; Chipset: - 2 x SATA3 6.0 Gb/s Connectors
- :- 1 x eDP Signal Connector; - 2 x Addressable LED Headers*; - 1 x CPU Fan Connector (4-pin)**; - 1 x CPU/Water Pump Fan (M.2 Fan) Connector (4-pin) (Smart Fan Speed Control)***; - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**...
- :- 256Mb AMI UEFI Legal BIOS with GUI support
