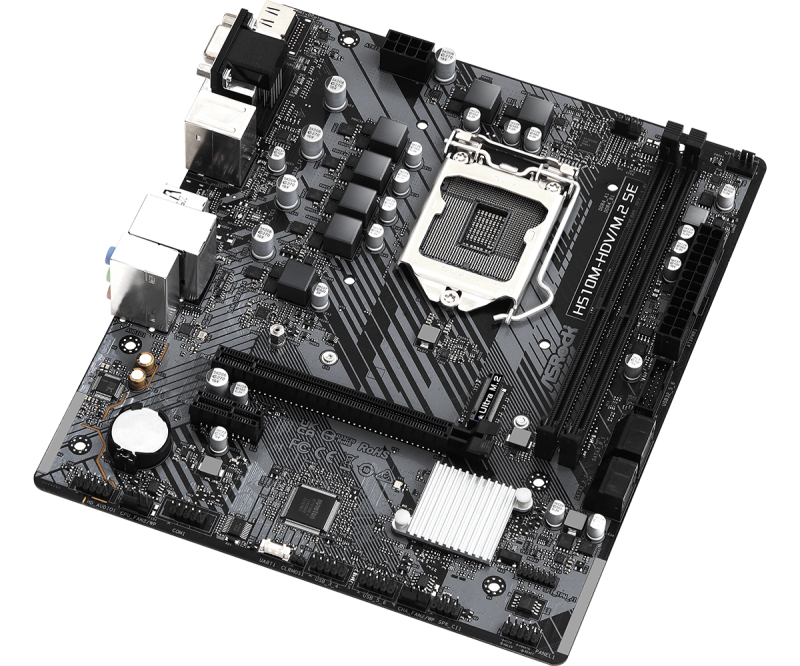

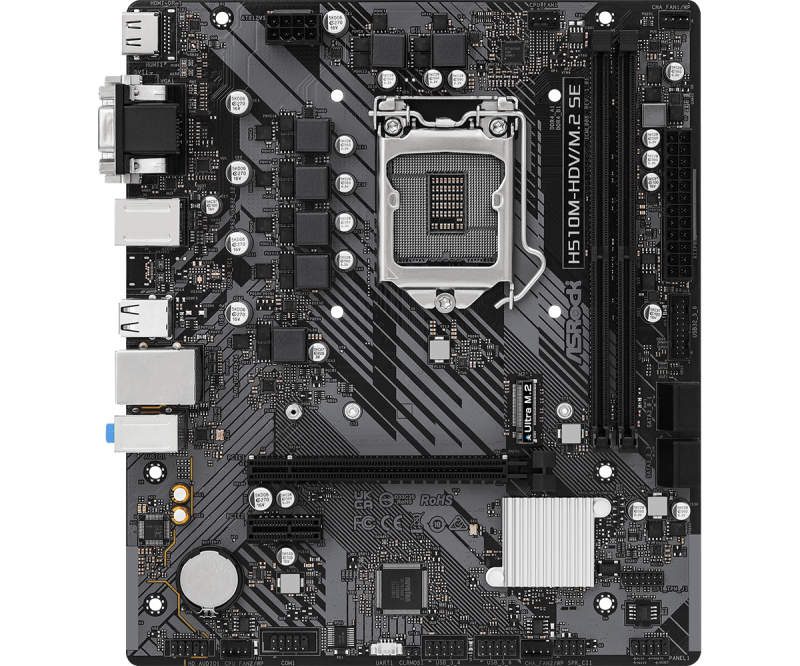

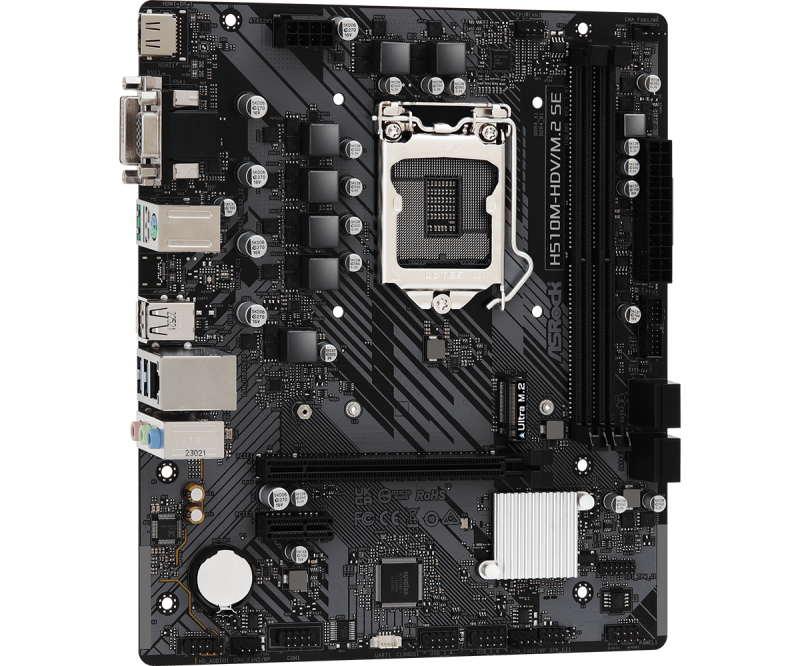

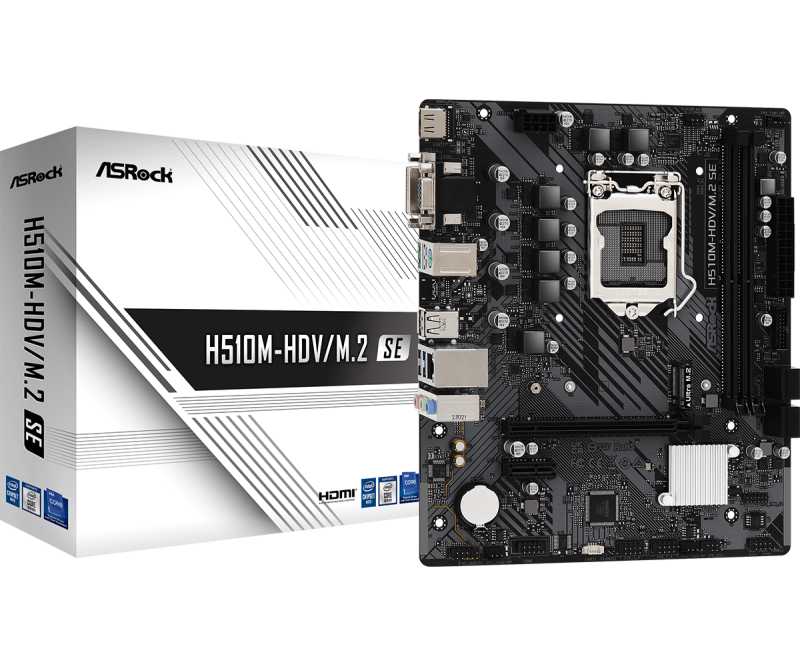

ASROCK H510M-HDV/M.2 SE /1200
Brand:
ASROCK
- Form factor:- Micro ATX Form Factor: 9.1-in x 7.8-in, 23.1 cm x 19.8 cm
- Warranty:36 Months
- :- Dual Channel DDR4 Memory Technology; - 2 x DDR4 DIMM Slots; - Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*; - Supports ECC UDIMM memory modules (operate in non-ECC mode); - Max. capacity of system memory: 64GB; -...
- :- 1 x HDMI; Intel® 11th Gen Processors support HDMI 2.0, HDCP 2.3 and max. resolution up to 4K 60Hz; Intel® 10th Gen Processors support HDMI 1.4, HDCP 2.3 and max. resolution up to 4K 30Hz; - 1 x DVI-D, supports HDCP 2.3 and max. resolution up to Full...
- :- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- :- Gigabit LAN 10/100/1000 Mb/s; - Realtek 8111H
- :Intel® 11th Gen & 10th Gen Processors: - 1 x PCIe 4.0 x16 Slot (PCIE1)*; Intel® 11th Gen Processors support PCIe 4.0 x16; Intel® 10th Gen Processors support PCIe 3.0 x16; Intel® H470 Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2)*
- :- Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200); - Supports Intel® Turbo Boost Max 3.0 Technology

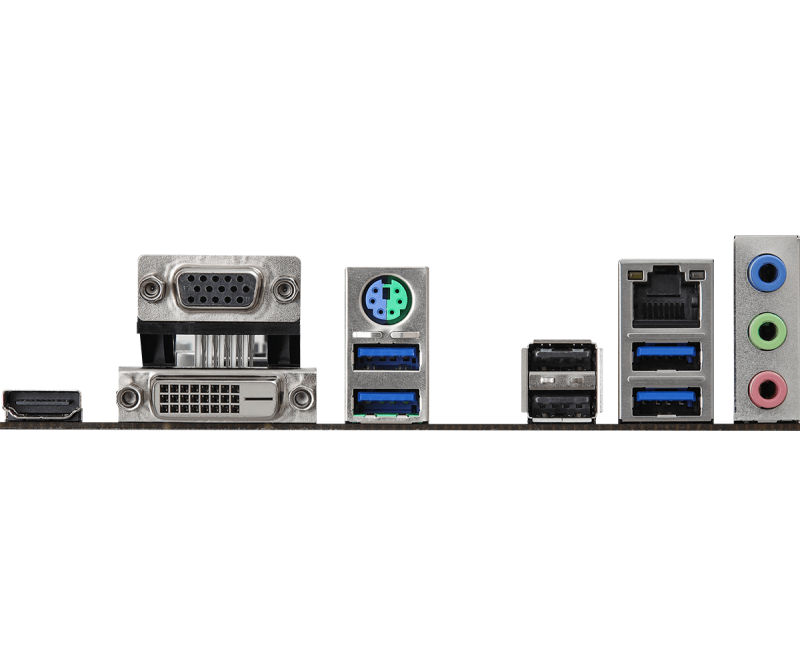

- :- 1 x PS/2 Mouse/Keyboard Port; - 1 x D-Sub Port; - 1 x DVI-D Port; - 1 x HDMI Port; - 2 x USB 2.0 Ports; - 4 x USB 3.2 Gen1 Ports; - 1 x RJ-45 LAN Port; - HD Audio Jacks: Line in / Front Speaker / Microphone
- :- Intel® H470
- :- 1 x COM Port Header; - 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x CPU Fan Connector (4-pin)*; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**; - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fa...
- :- 128Mb AMI UEFI Legal BIOS with GUI support
- :Chipset: - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*; - 4 x SATA3 6.0 Gb/s Connectors
