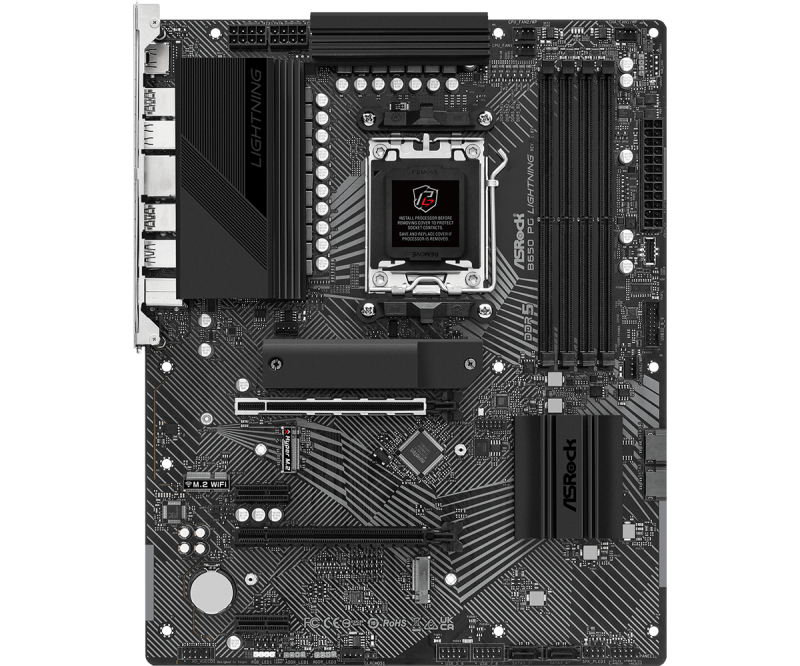

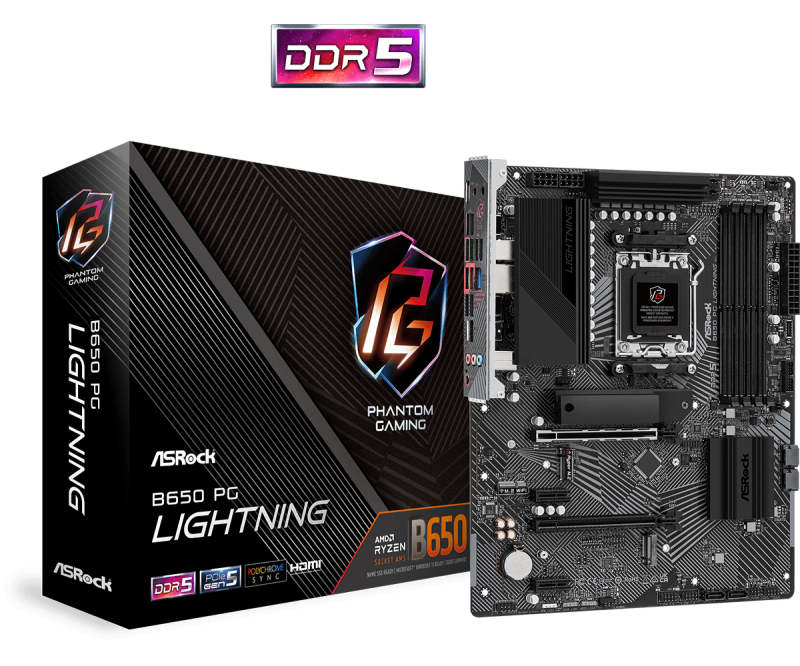

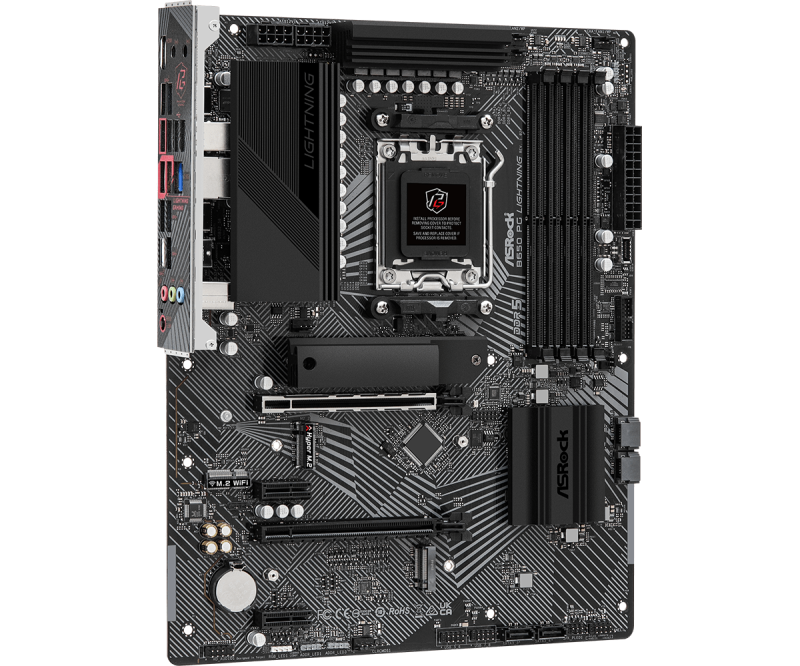

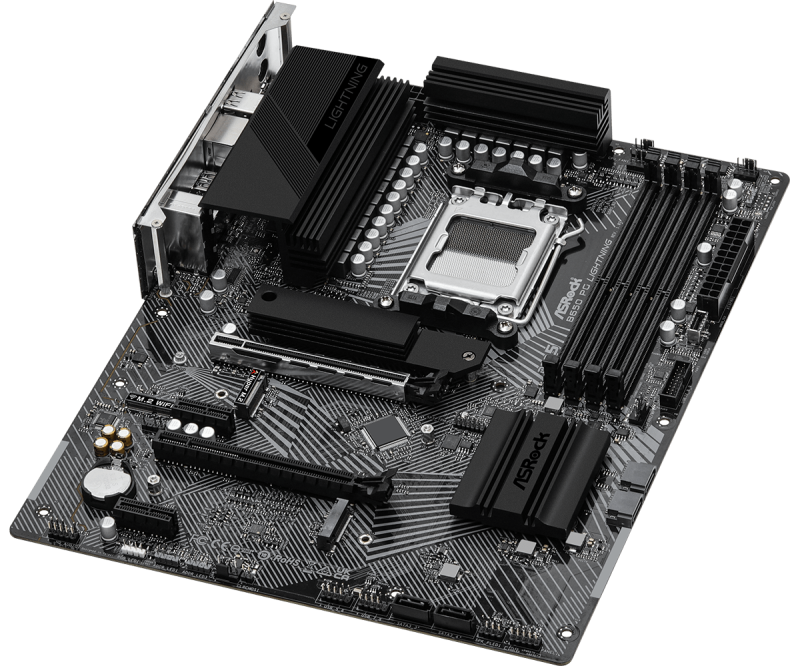

ASROCK B650 PG LIGHTNING /AM5
Brand:
ASROCK
- :- Dual Channel DDR5 Memory Technology; - 4 x DDR5 DIMM Slots; - Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)*; - Max. capacity of system memory: 128GB*; - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO)...
- :Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU); - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- :- 7.1 CH HD Audio (Realtek ALC897 Audio Codec); - Nahimic Audio
- :- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Dragon RTL8125BG; - Supports Phantom Gaming LAN Software; - Smart Auto Adjust Bandwidth Control; - Visual User Friendly UI; - Visual Network Usage Statistics; - Optimized Default Setting for Game, Browser, and...
- :CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*; Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x2 mode*; - 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE4)*; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module; - 15μ Gold Contact...
- :- 2 x Antenna Mounting Points; - 1 x HDMI Port; - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (ReDriver); - 7 x USB 3.2 Gen1 Ports (USB32_34 are Lightning Gaming Ports) (USB32_12 and USB32_56 are from ASMedia ASM1074 hub); - 4 x USB 2.0 Ports; - 1 x RJ-45...
- :- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm; - 8 Layer PCB
- :- Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
- :- AMD B650
- :CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*; - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*; Chipset: - 1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x2...
- :- 1 x SPI TPM Header; - 1 x Power LED and Speaker Header; - 1 x RGB LED Header*; - 3 x Addressable LED Headers**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; - 4 x Chassis/Water Pump Fan...
- :- 256Mb AMI UEFI Legal BIOS with GUI support
