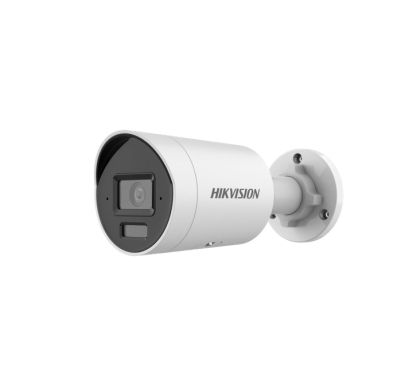

Brand:
HIKVISION
-
Sensor, type:CMOS
-
Dimensions (W, L, H), mm:74.4 x 176.3 mm
-
Sound_TEXT:Built-in arrayed dual-microphone
-
A sound:Yes
-
Card slot_TEXT:Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
-
Card slot:Yes
-
Wireless network_TEXT:-
-
Input/Output ports:-
-
Power Over Ethernet (PoE)_TEXT:PoE: IEEE 802.3af, Class 3, max. 7.5 W
-
Power over Ethernet (PoE):Yes
-
Optical sensor size:1/2.9" Progressive Scan CMOS
-
Resolution, MP:4 MP
-
Focal length:4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°
-
Minimum illumination, lx:Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with light
-
IR lighting_TEXT:IR, White Light up to 40m
-
IR illumination:Yes
-
Maximum resolution, pixels:2688x1520
-
Compression formats:Main stream: H.265/H.264/H.264+/H.265+; Sub-stream: H.265/H.264/MJPEG
-
Frame rate:Main Stream - 50 Hz: 25 fps (2688x1520, 1920x1080, 1280x720) 60 Hz: 30 fps (2688x1520, 1920x1080, 1280x720); Sub-Stream - 50 Hz: 25 fps (1280x720, 640x480, 640x360) 60 Hz: 30 fps (1280x720, 640x480, 640x360)
-
Supported network protocols:TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
-
Network interface:1 RJ45 10M/100M self-adaptive Ethernet port
-
Night vision_TEXT:IR cut filter
-
External assembly_TEXT:yes
-
Outdoor installation:Yes
-
Moisture protection_TEXT:IP67
-
Moisture protection:Yes
-
Vandal resistance_TEXT:-
-
Operating humidity range:Humidity 95% or less (non-condensing)
-
:IP
-
:-30 °C to 60 °C
-
:12 VDC ± 25%, 0.5 A, max. 6 W
-
:Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
-
Warranty:24
-
:Yes
