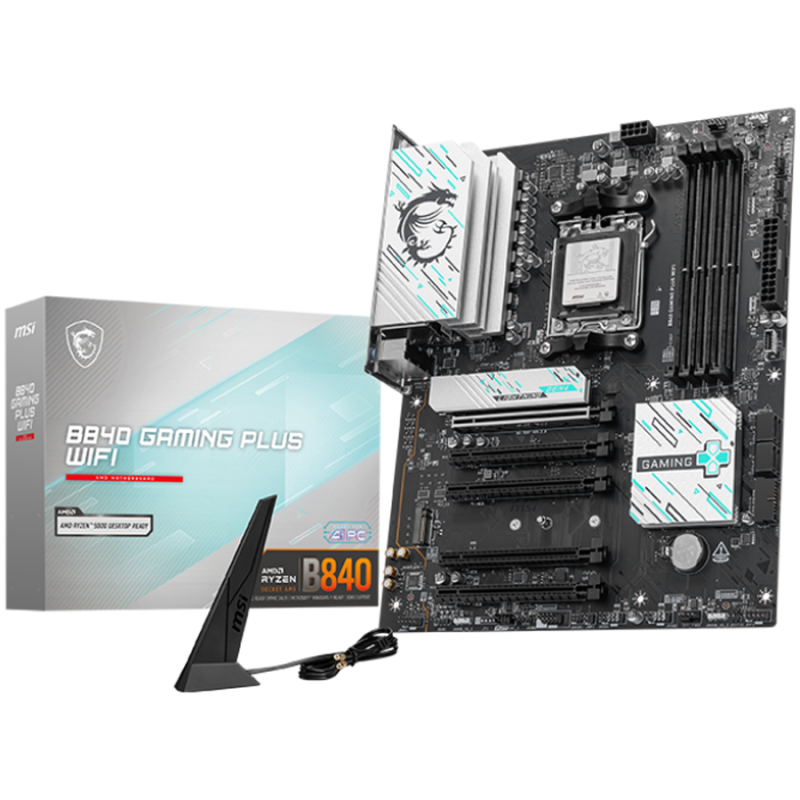

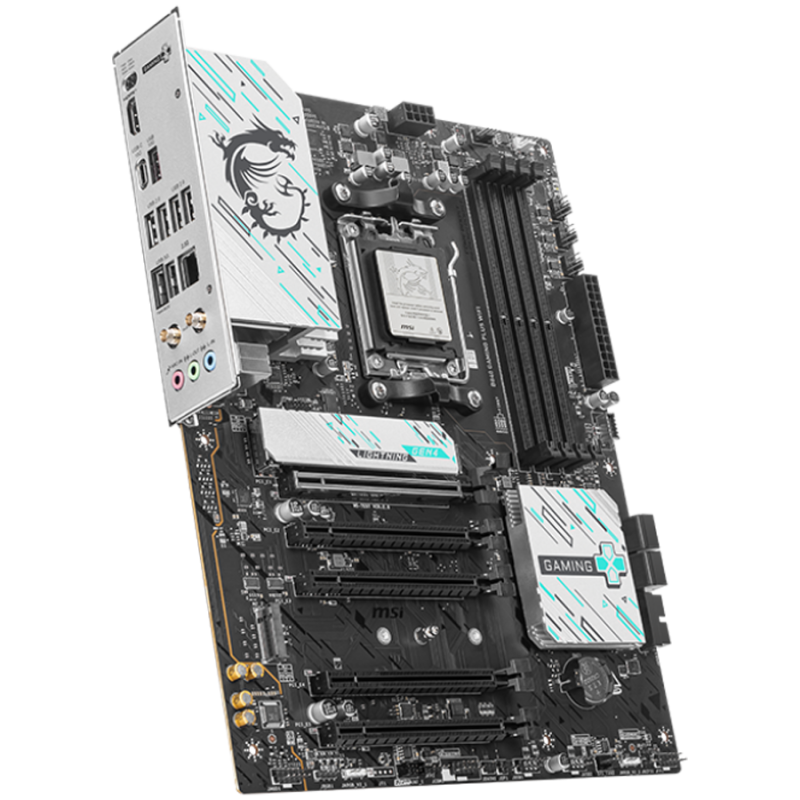

MSI B840 GAMING PLUS WIFI, ATX, Socket AM5, 4x DDR5 Dual Channel DDR5 up to 8000(OC)MHz, 5x PCIe x16 slot, 2x M.2 slot, 4x USB 2.0, 2x USB 5Gbps, 1x USB 10Gbps, 1x USB 10Gbps Type-C, HDMI, 7.1 HD Audio, 2.5G LAN, WiFi, BT, 3Y
Brand:
MSI
-
Width:243.84 мм
-
Height:304.8 мм
-
Warranty products - subject to return:Да
-
Warranty terms (month):36 мес.
-
Criteria for warranty validity:Сериен номер
-
Package Weight - Gross (kg):2.24 кг
-
Number per pack:1
-
Carton Weight - Gross (kg):1 кг
-
Packages in a carton:1
-
EAN code:4711377286589
-
Package type:Box
-
HDMI:1 (HDMI (Type A))
-
Retail Packaging Net Weight Carton:1 кг
-
Retail Packaging Net Weight Plastic:1 кг
-
Package Weight - Net (kg):1.73 кг
-
USB 2.0:4 (USB 2.0 (type A))
-
Audio interface:3 (3.5 мм мини жак)
-
Accessories included:Ръководство за употреба <br/>WiFi antenna
-
Supported data exchange protocols:2.5 Gbps
-
Supported operating system:Microsoft Windows 11 64-bit
-
Device location:Вграден
-
Audio output type:7.1 канален съраунд
-
Cables included:SATA Cable
-
Processor:AMD Ryzen 7000 Series <br/>AMD Ryzen 8000 Series <br/>AMD Ryzen 9000 Series
-
EAN Code:
-
CPU socket:Socket AM5
-
USB 3.2 Gen 1:2 (USB 3.2 (type A))
-
Network card chipset:Realtek RTL8125BG
-
USB 3.2 Gen 2:1 (USB 3.2 (type A)); 1 (USB 3.2 (type C))
-
Chipset on the motherboard:AMD B840
-
Memory speed/frequency:5600MHz(PC5-44800)
-
Total number of memory slots:4
-
Compatible audio standards:High Definition Audio
-
Memory form factor:DIMM 288-pin
-
Audio chipset:Realtek ALC897
-
Max. number of installed processors:1
-
It offers an error checking method:Non-ECC
-
Maximum amount of installed memory:256 GB
-
Built-in:<b>Storage Controller:</b><br/>Supports: Ниво 0, Ниво 1<br/>PCI Express 4.0 x4 (2 x M.2 (Key M))<br/><b>Storage Controller:</b><br/>SATA III-600 (4)<br/>
-
PCI Express 3.0 x4:1
-
Memory characteristics:Two DDR Channels <br/>Небуферирана <br/>Dual Rank <br/>Single Rank <br/>AMD EXPO
-
Plug-in-card:<b>Wi-Fi Controller:</b><br/>1 x M.2 (Key E)<br/>
-
PCI Express 3.0 x1:3
-
Audio integrated:Да
-
LAN integrated:Да
-
PCI Express 4.0 x16:1
-
:ATX
-
:DDR5 SDRAM
