Brand:
ASROCK
-
Processor:AMD AM4 Ryzen
-
Software:ASRock Motherboard Utility (A-Tuning), ASRock Polychrome SYNC, ASRock XFast LAN.
-
Wireless network_TEXT:-
-
Slots:AMD Ryzen series CPUs (Matisse)- - 2 x PCI Express x16 Slots, AMD Ryzen series APUs- 2 x PCI Express x16 Slots; 2 x PCI Express 3.0 x1 Slots,Supports AMD Quad CrossFireX and CrossFireX, 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module.
-
M.2 slot:1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 PCI Express module, 1 x M.2 Socket (M2_3), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module.
-
Number of slots:4 DIMM Slots, Max. capacity of system memory: max. 128GB, Supports Extreme Memory Profile (XMP) memory modules
-

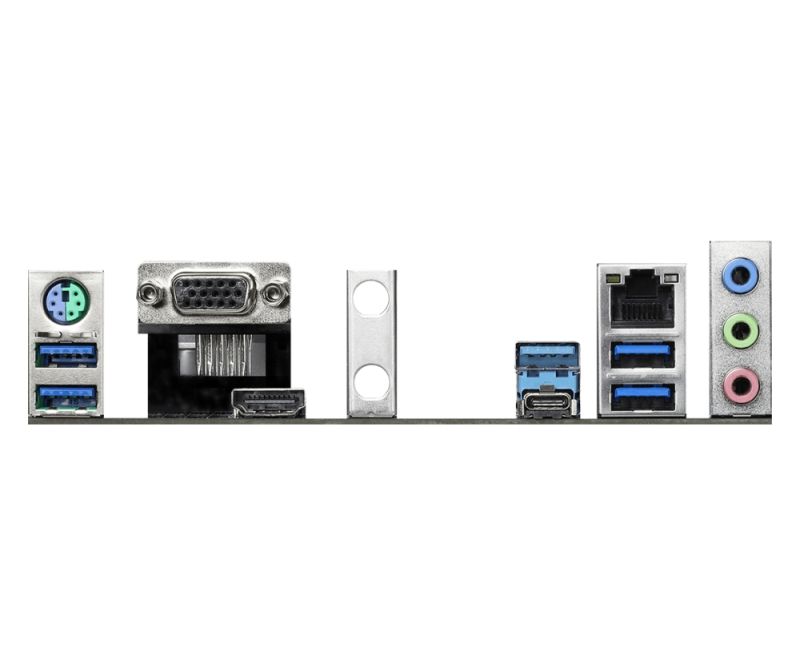

:Antenna Bracket, 1 x PS/2 Mouse/Keyboard Port, 1 x D-Sub Port,1 x HDMI Port, 1 x DisplayPort 1.2, 2 x USB 2.0 Ports, 1 x USB 3.1 Gen2 Type-A Port, 1 x USB 3.1 Gen2 Type-C Port, 4 x USB 3.1 Gen1 Ports, 1 x RJ-45 LAN Port with LED.
-
:DDR4
-
:1 x COM Port Header, 1 x SPI TPM Header, 1 x Power LED and Speaker Header, 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x 4 pin 12V Power Connector, 1 x Front Panel Audio Connector, 2 x USB 2.0 Headers, 1 x USB 3.2 Gen1 Header.
-
:Microsoft Windows 10 64-bit
-
:ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm
-
:ASRock USB 3.2 Gen2, ASRock Super Alloy, ASRock Steel Slot Gen4, ASRock Full Coverage M.2 Heatsink, ASRock Hyper M.2, ASRock POST Status Checker, ASRock Full Spike Protection, ASRock Live Update & APP Shop.
-
:PRO4
-
:36
