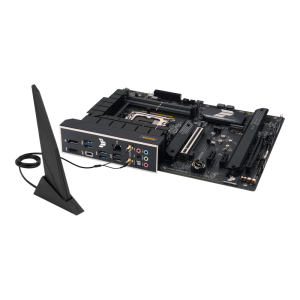

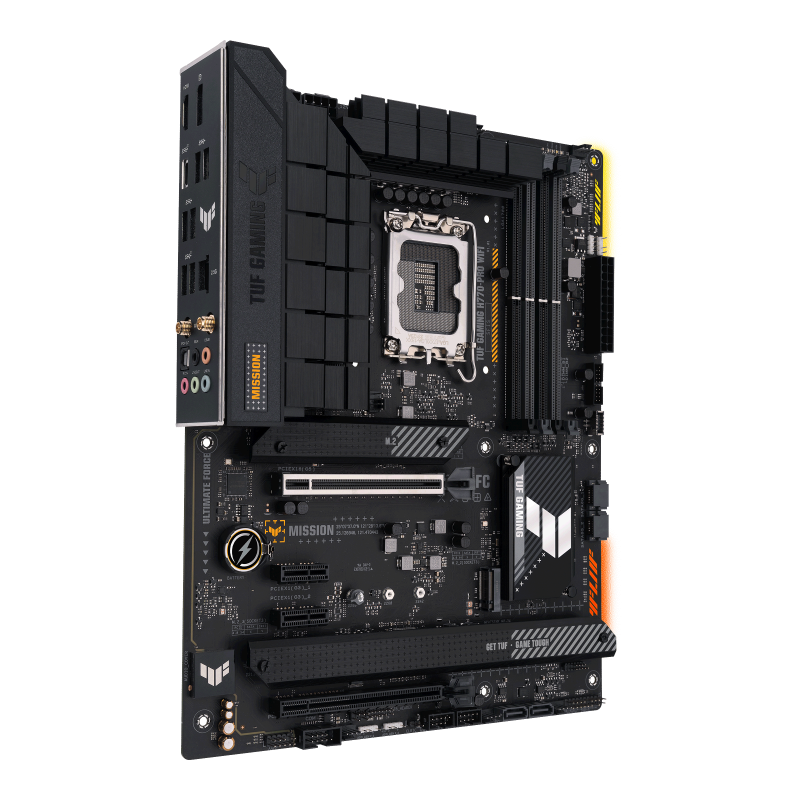

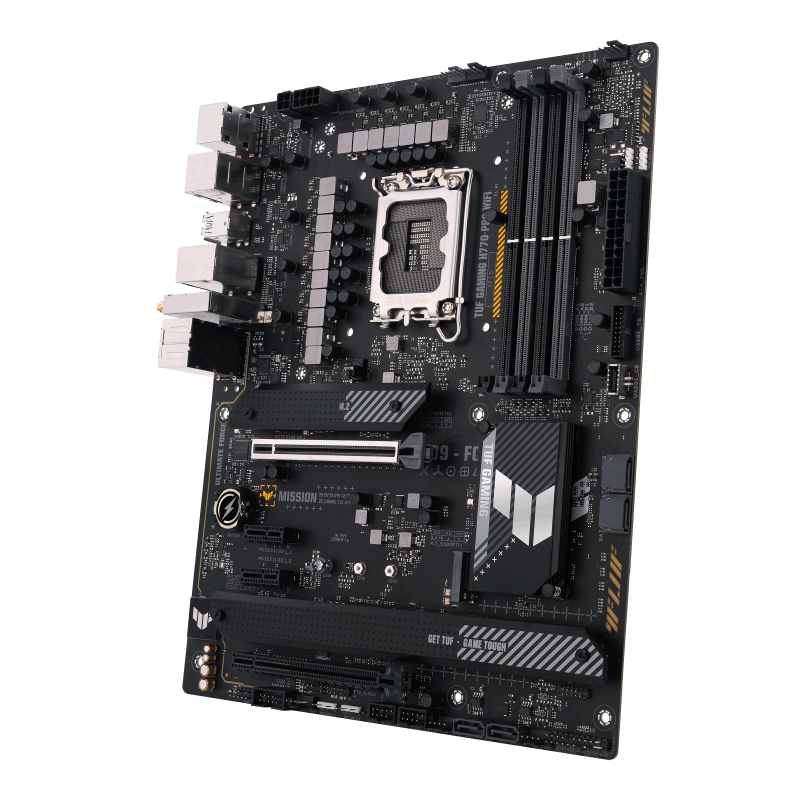

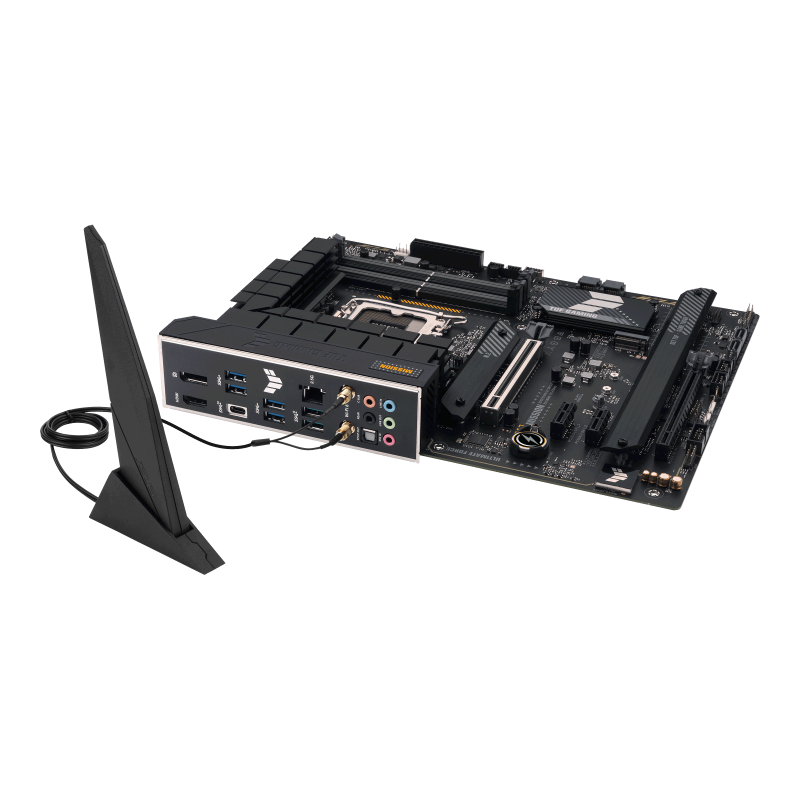

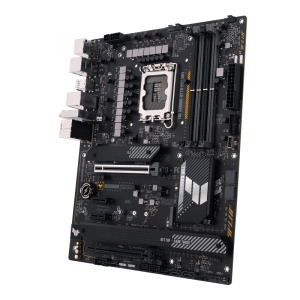

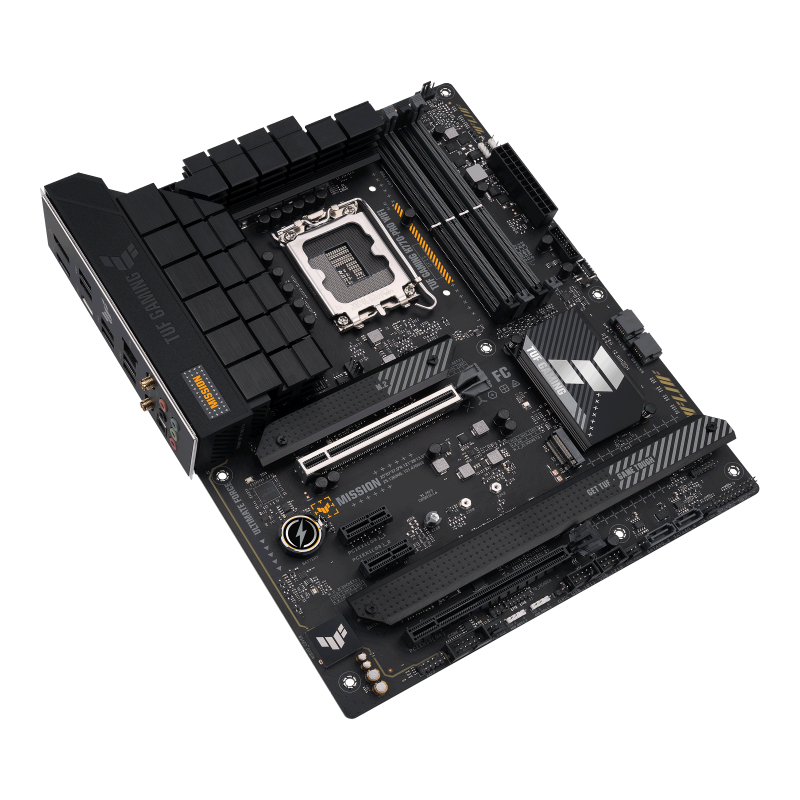

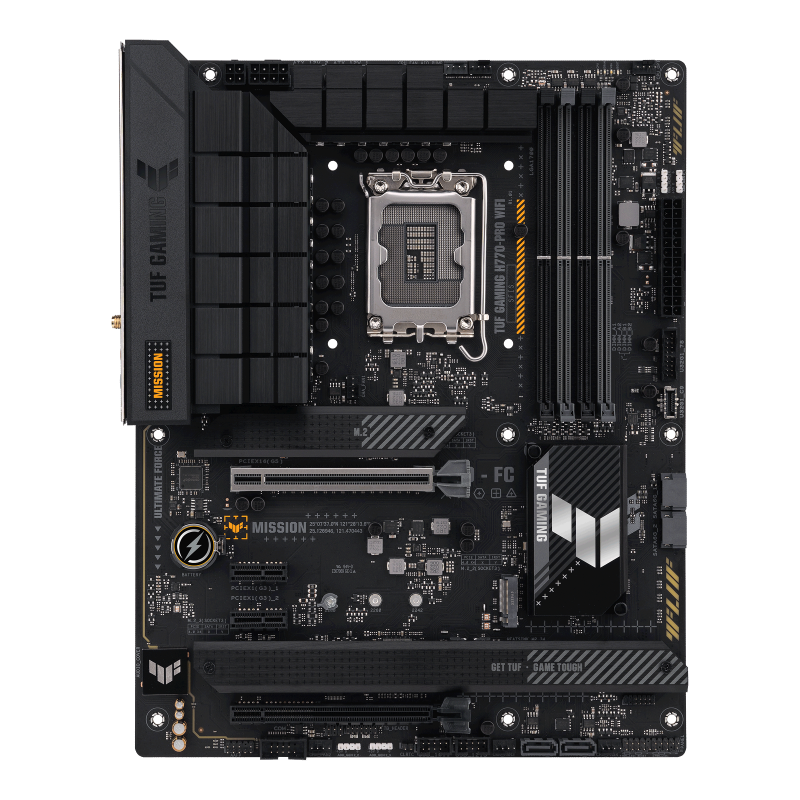

ASUS TUF GAMING H770-PRO WIFI
Brand:
ASUS
- :Wi-Fi 6; 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax); Supports 2.4/5GHz frequency band; Bluetooth® v5.2*
- :4 x DIMM, Max. 128GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); OptiMem II
- :1 x DisplayPort**; 1 x HDMI® port***
- :Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Rear optical S/PDIF out port; - Premium audi...
- :1 x Intel® 2.5Gb Ethernet; TUF LANGuard
- :Intel® 13th & 12th Gen Processors*; 1 x PCIe 5.0 x16 slot; Intel® H770 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 2 x PCIe 3.0 x1 slots

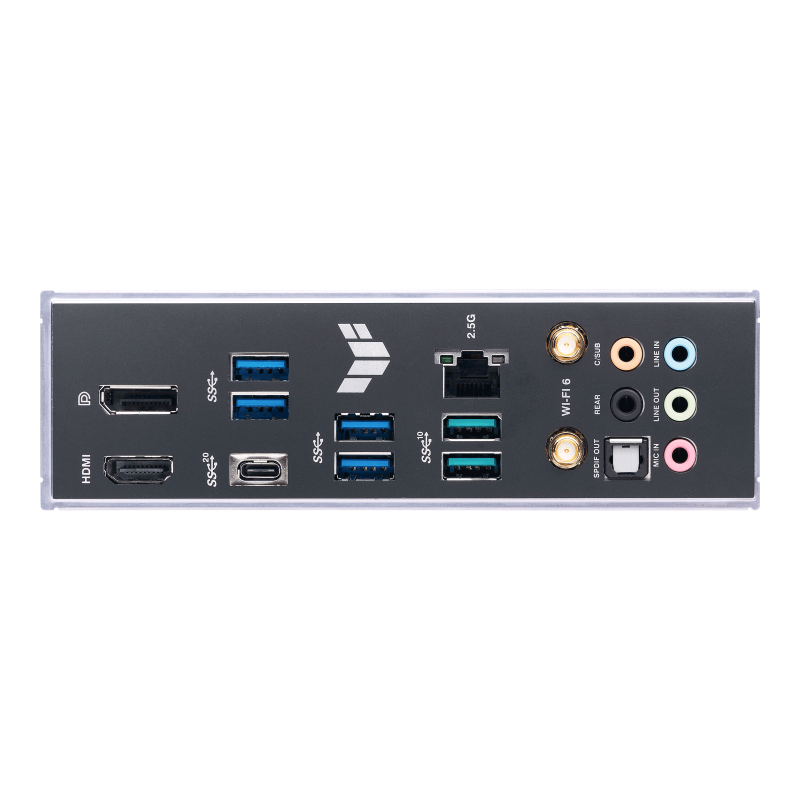

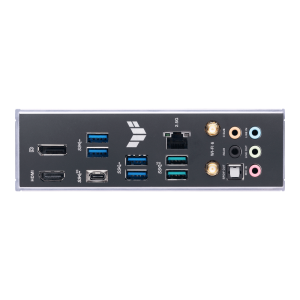

- :1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®); 2 x USB 3.2 Gen 2 ports (2 x Type-A); 4 x USB 3.2 Gen 1 ports (4 x Type-A); 1 x DisplayPort; 1 x HDMI® port; 1 x Wi-Fi Module; 1 x Intel® 2.5Gb Ethernet port; 5 x Audio jacks; 1 x Optical S/PDIF out port
- :ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- :Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
- :Intel® H770 Chipset
- :Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel® 13th & 12th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4); Intel® H770 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_3 s...
- :1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; 4 x M.2 slots (Key M); 4 x SATA 6Gb/s por...
- :192 (128+64) Mb Flash ROM, UEFI AMI BIOS
