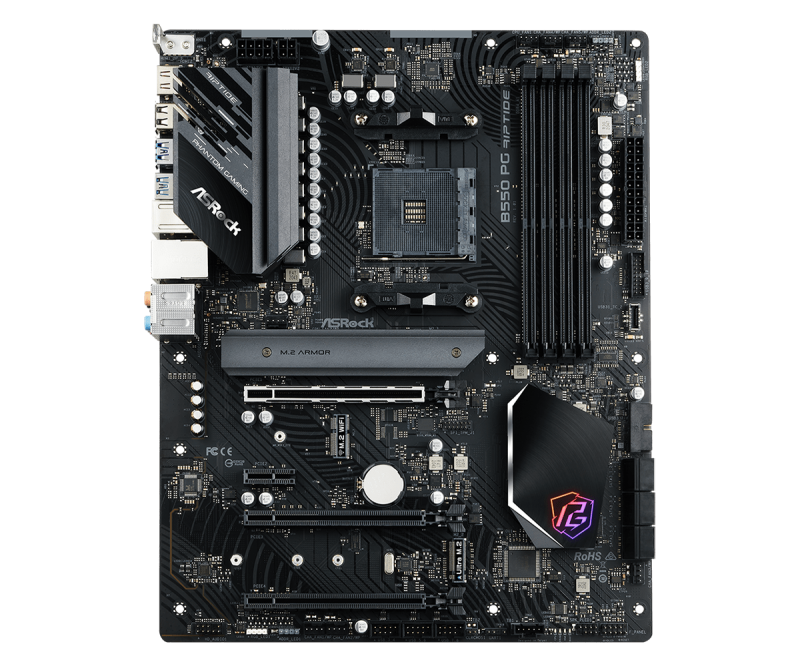

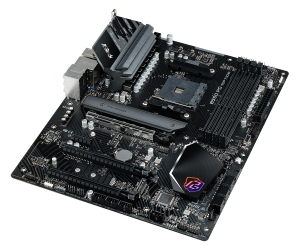

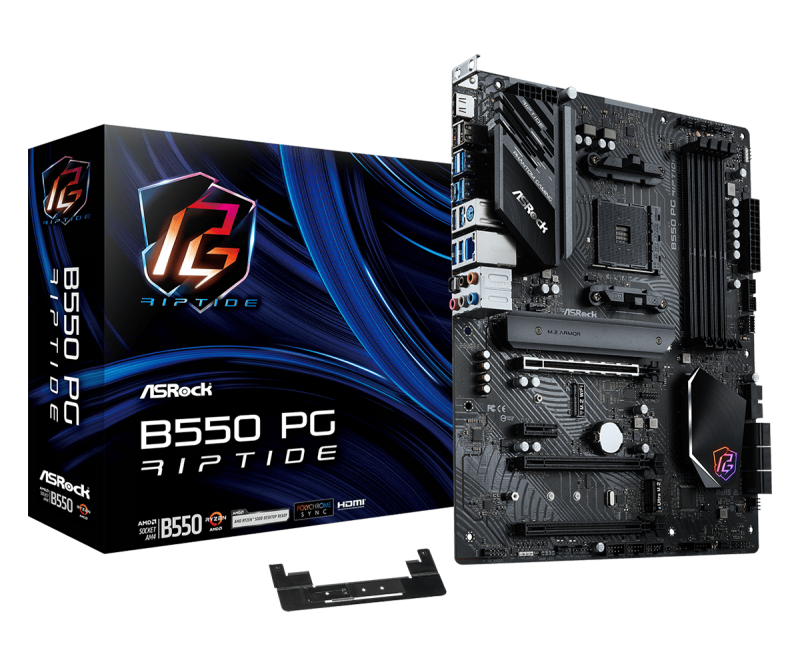

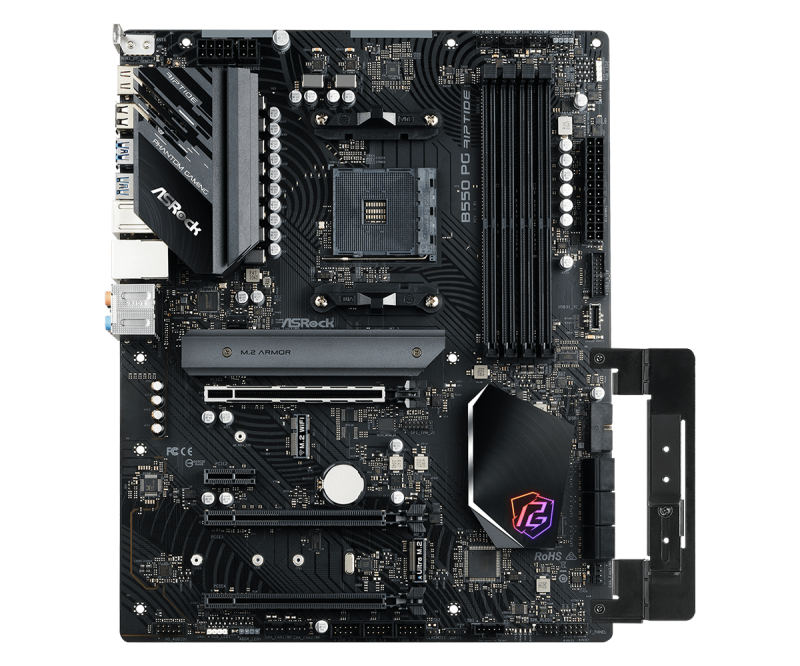

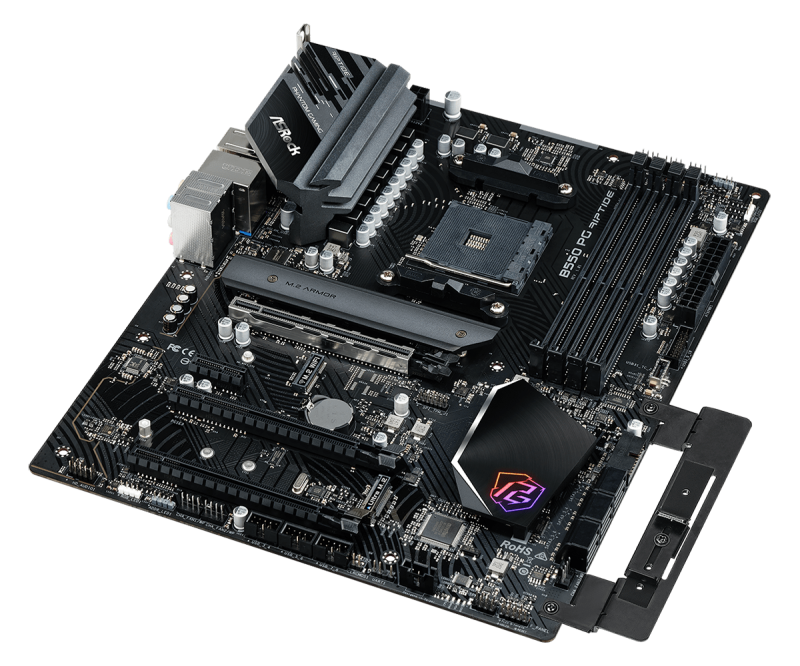

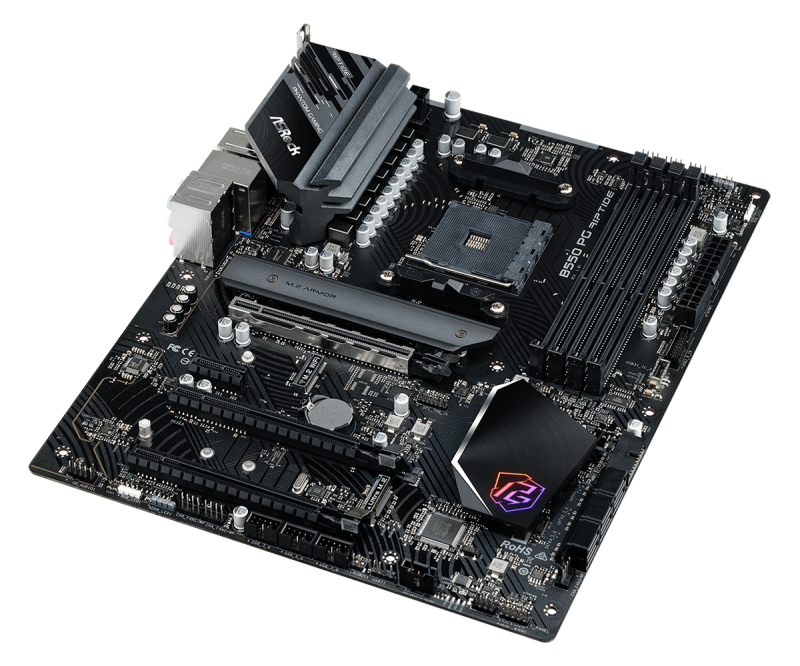

ASROCK B550 PG RIPTIDE
Producător:
ASROCK
- :- Dual Channel DDR4 Memory Technology; - 4 x DDR4 DIMM Slots; - AMD Ryzen series CPUs (Vermeer) support DDR4 4933+(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) /...
- :- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*; - DirectX 12, Pixel Shader 5.0; - Shared memory default 2GB. Max Shared memory supports up to 16GB.**; - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; - Supp...
- :- 7.1 CH HD Audio (Realtek ALC897 Audio Codec); - Supports Surge Protection; - Gold Audio Jacks; - Nahimic Audio
- :- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - 1 x Killer E3100G (PCIE x1 Gigabit LAN 10/100/1000/2500 Mb/s); - Supports Killer LAN Software; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Suppo...
- :AMD Ryzen series CPUs (Vermeer and Matisse); - 3 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode; PCIE4: Gen3 x1 mode)*; AMD Ryzen series APUs (Cezanne and Renoir); - 3 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode...
- :- 1 x Antenna Bracket; - 1 x PS/2 Mouse/Keyboard Port; - 1 x HDMI Port; - 1 x Optical SPDIF Out Port; - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)*; - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)*; - 6 x USB 3....
- :- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm; - Solid Capacitor design; - 2oz Copper PCB
- :- Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*; - Digi Power design; - 10 Power Phase design
- :- AMD B550
- :- 6 x SATA3 6.0 Gb/s Connectors; - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir and Picasso)*; - 1 x Ultra M.2 Socket (M2...
- :- 1 x SPI TPM Header; - 1 x Power LED and Speaker Header; - 2 x RGB LED Headers*; - 2 x Addressable LED Headers**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; - 5 x Chassis/Water Pump Fa...
- :- 256Mb AMI UEFI Legal BIOS with GUI support; - Supports "Plug and Play"; - ACPI 5.1 compliance wake up events; - Supports jumperfree; - SMBIOS 2.3 support; - CPU, VDDCR_SOC, DRAM, VPPM, +1.8V Voltage Multi-adjustment
