- :ASROCK
- :Software ASRock Motherboard Utility (Phantom Gaming Tuning); ASRock Phantom Gaming LAN Software*; UEFI ASRock EZ Mode; ASRock Full HD UEFI; ASRock My Favorites in UEFI; ASRock Auto Driver Installer; ASRock Instant Flash; ASRock Easy RAID Installer; Sup...
- :Dual Channel DDR5 Memory Technology; 4 x DDR5 DIMM Slots; Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*; Max. capacity of system memory: 256GB; Supports Intel® Extreme Memory Profile (XMP) 3.0;
- :Intel® Xe Graphics Architecture (Gen 12); 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz; 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz;
- :7.1 CH HD Audio (Realtek ALC897 Audio Codec); Nahimic Audio;
- :2.5 Gigabit LAN 10/100/1000/2500 Mb/s; Dragon RTL8125BG; Supports Phantom Gaming LAN Software; Smart Auto Adjust Bandwidth Control; Visual User Friendly UI; Visual Network Usage Statistics; Optimized Default Setting for Game, Browser, and Streaming Mod...
- :CPU:1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*; Chipset:1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*; 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT); Supports AMD CrossFire™;
- :1 x USB 3.2 Gen1 Type-C (Rear); 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front); 6 x USB 2.0 (2 Rear, 4 Front); All USB ports support ESD Protection; 2 x Antenna Ports; 1 x PS/2 Mouse/Keyboard Port; 1 x HDMI Port; 1 x DisplayPort 1.4; 1 x USB 3.2 Gen1 Type-C...
- :Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
- :Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700); Supports Intel® Hybrid Technology; Supports Intel® Turbo Boost Max 3.0 Technology; Supports Intel® Thermal Velocity Boost (TVB); Supports Intel® Adaptive Boost Technology (ABT);
- :Intel® B760
- :CPU:1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; Chipset:1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*; 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Ge...

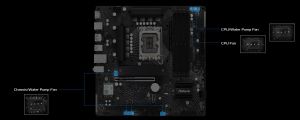

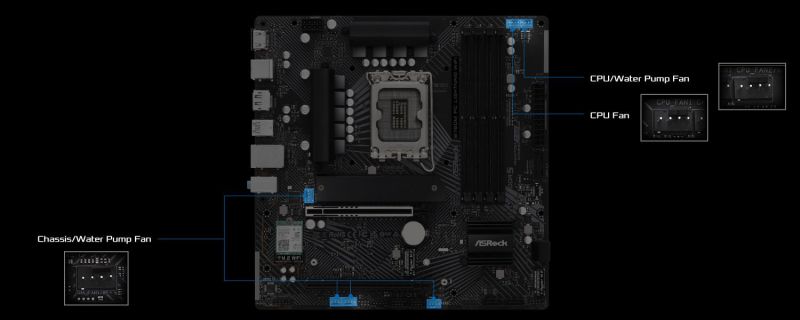

- :1 x SPI TPM Header; 1 x Chassis Intrusion and Speaker Header; 1 x CPU Fan Connector (4-pin)*; 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**; 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***; 1 x 24 pin A...
- :128Mb AMI UEFI Legal BIOS with GUI support
