- :Wireless LAN: 802.11be 2x2 Wi-Fi 7 Module;- Supports IEEE 802.11a/b/g/n/ac/ax/be;- Supports 2.4GHz/5GHz/6GHz frequency band;- Supports 320MHz channel bandwidth with 6GHz frequency band;- 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technol...
- :Dual Channel DDR5 Memory Technology;- 4 x DDR5 DIMM Slots;- Supports DDR5 non-ECC, un-buffered memory up to 8000+(OC);- Max. capacity of system memory: 256GB;- Supports Intel Extreme Memory Profile (XMP) 3.0
- :- Intel® Xe Graphics Architecture (Gen 12);- 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz;- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz;- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and...
- :- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec);- Impedance Sensing on Rear Out port;- Individual PCB Layers for R/L Audio Channel;- Nahimic Audio
- :- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s;- Killer E3100G;- Supports Killer LAN Software
- :CPU;- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*;Chipset;- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode;- 1 x PCIe 3.0 x1 Slot (PCIE3);- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated W...

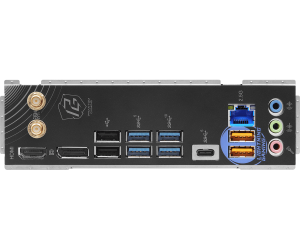

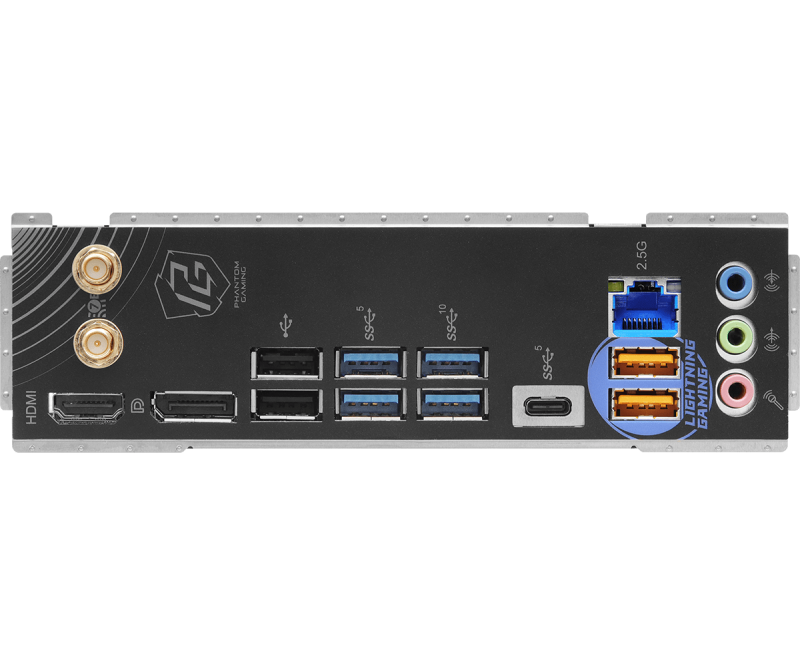

- :- 2 x Antenna Mounting Points;- 1 x HDMI Port;- 1 x DisplayPort 1.4;- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s);- 1 x USB 3.2 Gen1 Type-C Port;- 4 x USB 3.2 Gen1 Type-A Ports (USB32_56 are Lightning Gaming Ports.);- 2 x USB 2.0 Ports;- 1 x RJ-45 LAN Port...
- :- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm;- 8 Layer PCB
- :Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700);- Supports Intel® Hybrid Technology;- Supports Intel® Turbo Boost Max 3.0 Technology;- Supports Intel® Thermal Velocity Boost (TVB);- Supports Intel® Adaptive Boost Technology (ABT)
- :- Intel® Z790
- :CPU;- 1 x Blazing M.2 Socket (M.2_GEN5, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode;- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode;Chipset;- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/228...
- :- 1 x eDP Signal Connector;- 1 x Thermistor Cable Header;- 1 x SPI TPM Header;- 1 x Power LED and Speaker Header;- 1 x RGB LED Header;- 3 x Addressable LED Headers;- 1 x CPU Fan Connector (4-pin);- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Sp...
- :- 128Mb AMI UEFI Legal BIOS with GUI support
- :Superb Productivity;- PCIe Gen5 (Graphics, M.2);- Dual Channel DDR5;Rock-Solid Durability;- Server-Grade Low-Loss PCB;- 16+1+1 Power Phase, 90A SPS for VCore+GT with Enlarged Heatsink Armor;- Flexible Integrated I/O Shield;- 20K Long-lasting Black Caps...
