- :Microsoft Windows® 10 64-bit / 11 64-bit;Software;- ASRock Motherboard Utility (A-Tuning);UEFI;- ASRock Full HD UEFI;- ASRock Auto Driver Installer;- ASRock Instant Flash
- :ASRock
- :- Dual Channel DDR5 Memory Technology;- 2 x DDR5 DIMM Slots;- Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*;- Max. capacity of system memory: 128GB;- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) m...
- :Integrated AMD RDNA™ graphics (Actual support may vary by CPU);- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz;- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K...
- :- 7.1 CH HD Audio (Realtek ALC897 Audio Codec);- Nahimic Audio
- :- Gigabit LAN 10/100/1000 Mb/s;- Realtek RTL8111H
- :CPU;- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset;- 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3);- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module;- 15μ Gold Contact in VGA PCIe Slot (PCIE1)

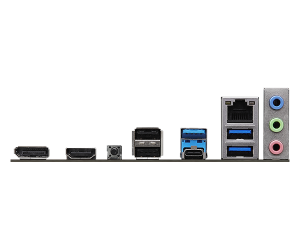

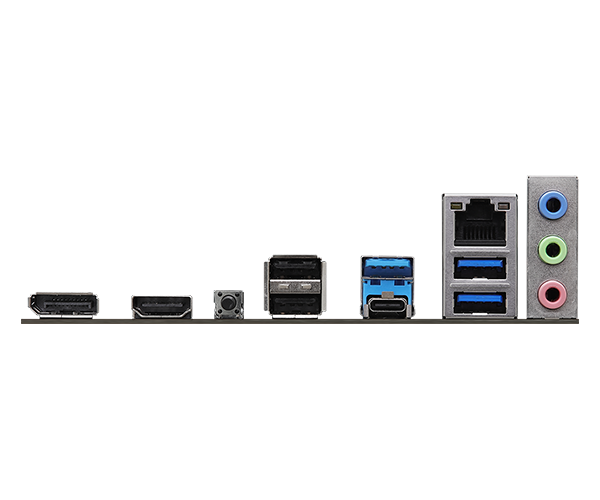

- :- 1 x USB 3.2 Gen1 Type-C (Rear);- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front);- 6 x USB 2.0 (2 Rear, 4 Front);- 2 x Antenna Mounting Points;- 1 x HDMI Port;- 1 x DisplayPort 1.4;- 1 x USB 3.2 Gen1 Type-C Port;- 3 x USB 3.2 Gen1 Type-A Ports;- 2 x USB 2....

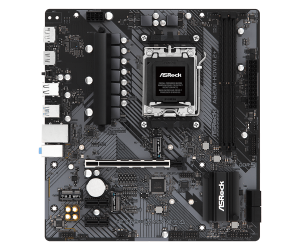

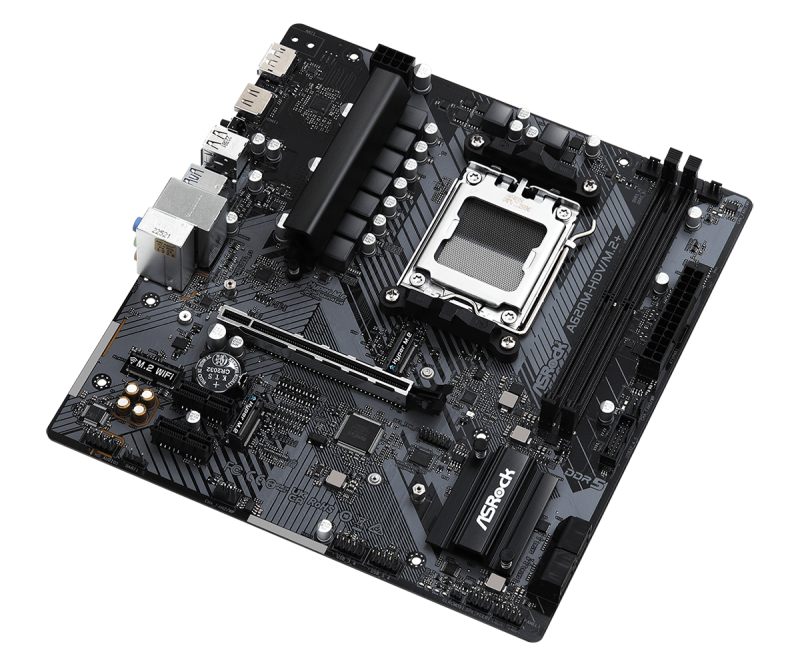

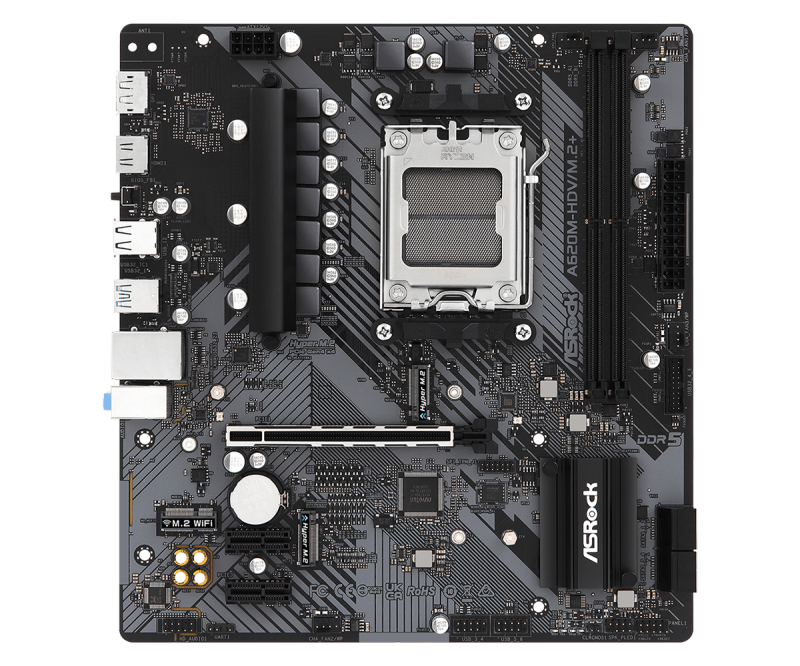

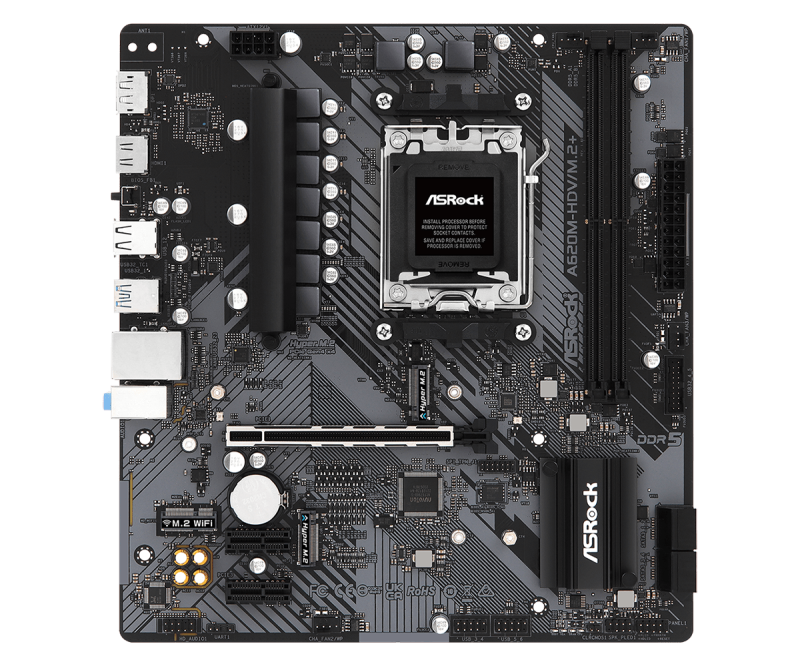

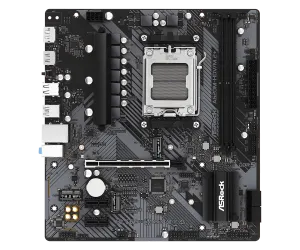

- :Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
- :Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
- :AMD A620
- :CPU;- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*;- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode;Chipset;- 4 x SATA3 6.0 Gb/s Connectors;- Supports RAID 0, RAID 1 and RAID...
- :- 1 x SPI TPM Header;- 1 x Power LED and Speaker Header;- 1 x CPU Fan Connector (4-pin)*;- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**;- 1 x 24 pin ATX Power Connector;- 1 x 8 pin 12V Power Connector;- 1 x Front Panel Audi...
- :256Mb AMI UEFI Legal BIOS with GUI support
- :Superb Productivity;- Dual Channel DDR5;Rock-Solid Durability;- 6+1+1 Power Phase, 50A Dr.MOS for VCore;EZ Update;- BIOS Flashback Button;- ASRock Auto Driver Installer;EZ Troubleshooter
