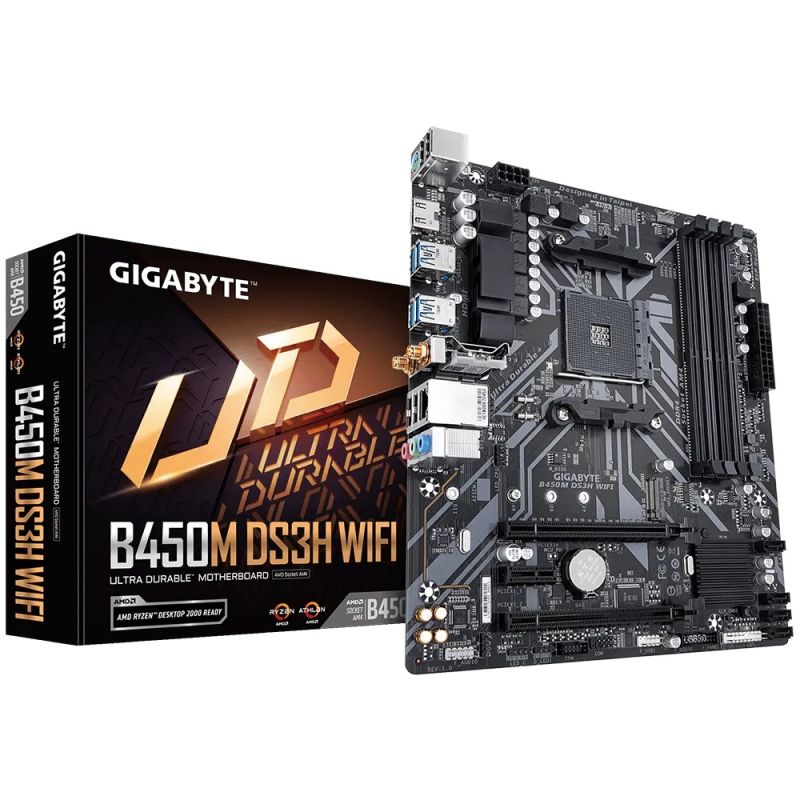

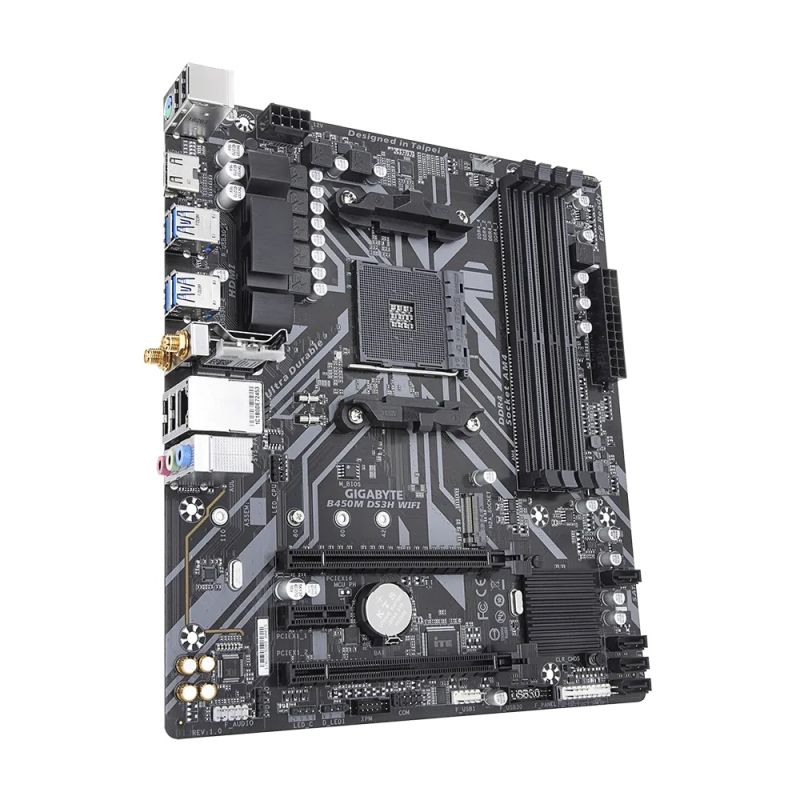

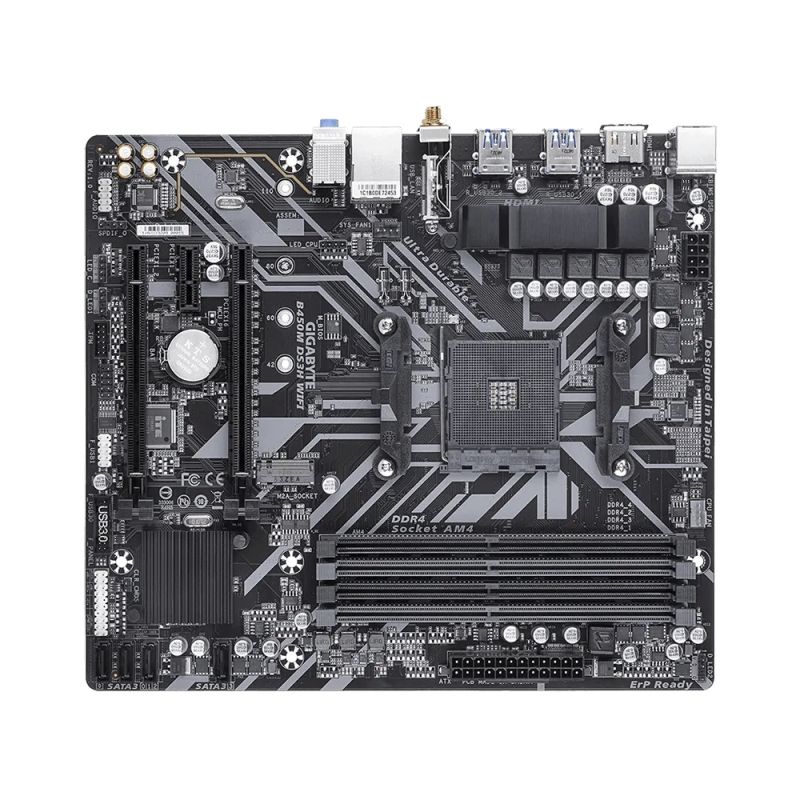

GB B450M DS3H WIFI /AM4
Producător:
GIGABYTE
- :AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE); WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band; BLUETOOTH 5.0; Support for 11ac wireless standard
- :4 x DDR4 DIMM sockets supporting up to 128 GB of system memory; Dual channel memory architecture; Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-E...
- :Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note); * Support for HDMI 2.0 version and HDCP 2.2.(Note); Maximum shared memory of 16 GB
- :Realtek®Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.; Support for S/PDIF O
- :Realtek® GbE LAN chip (1 Gbps/100 Mbps)
- :1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note); * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.; (The PCIEX16 slot conforms to PCI Express 3.0 standard.); 1 x PCI...

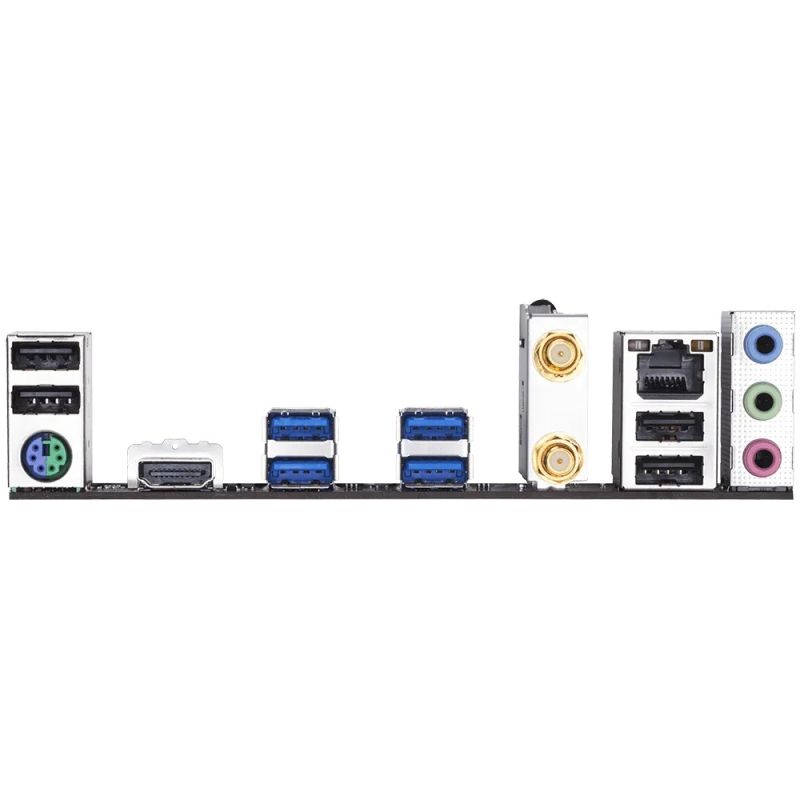

- :1 x PS/2 keyboard/mouse port; 1 x HDMI port; 4 x USB 3.1 Gen 1 ports; 4 x USB 2.0/1.1 ports; 2 x SMA antenna connectors (1T1R); 1 x RJ-45 port; 3 x audio jacks
- :Micro ATX Form Factor; 24.4cm x 21.5cm
- :AM4 Socket: Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
- :AMD B450
- :1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support); * Actual support may vary by CPU.; * Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU.; 4 x SATA 6Gb/s con...
- :1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x system fan header; 1 x M.2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x S/PDIF Out header; 1 x C...
- :1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
