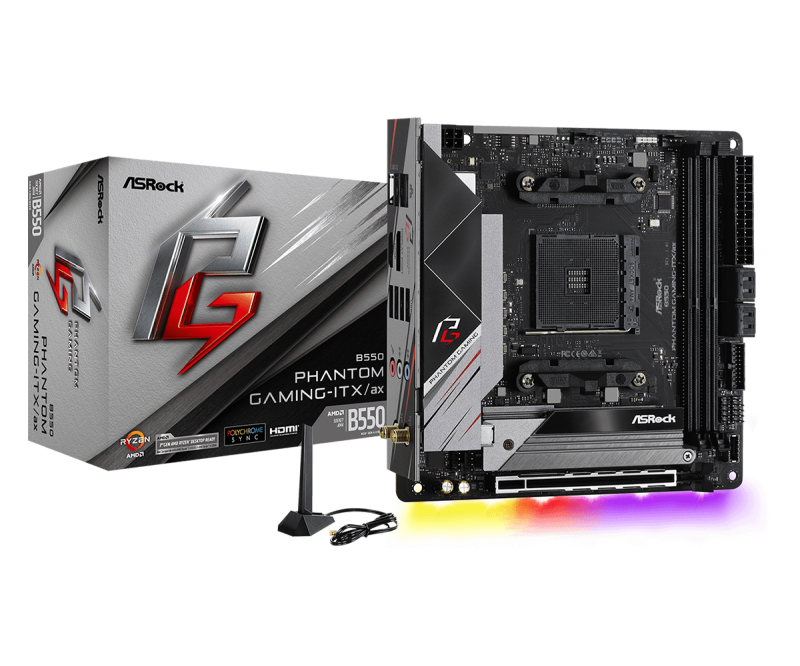

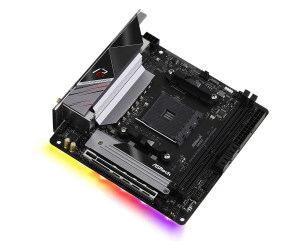

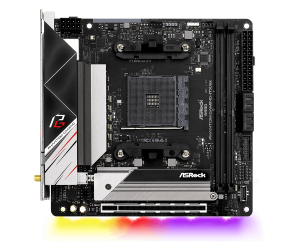

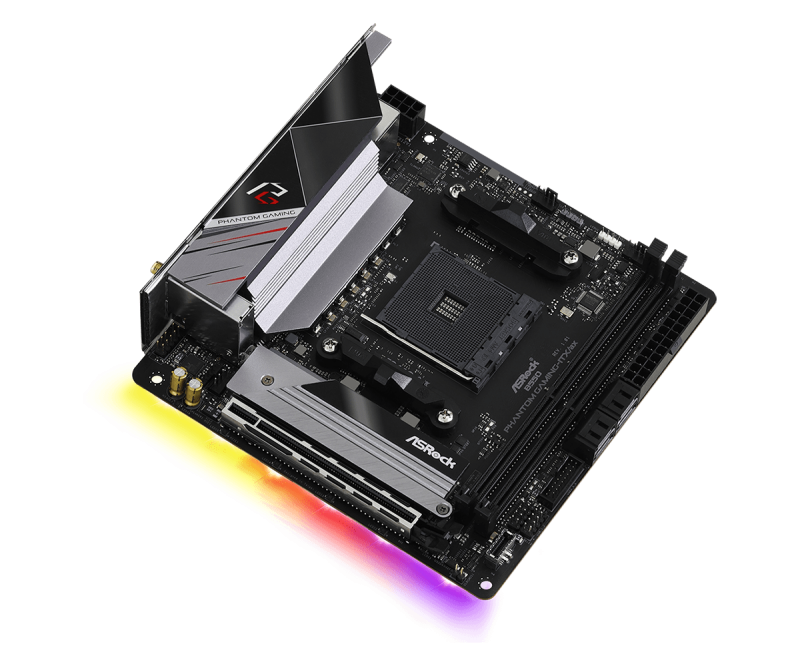

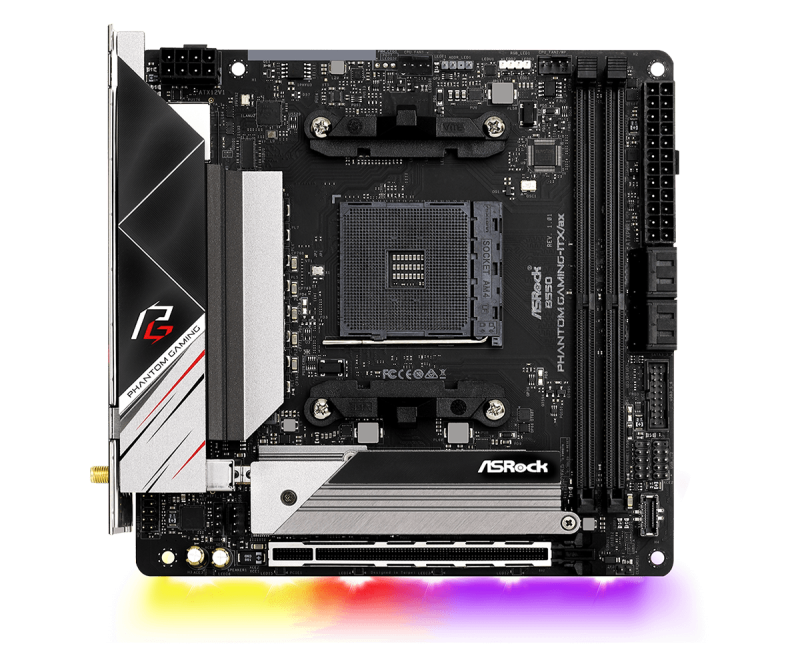

ASROCK B550 PHANTOM GAMING-ITX
Марка:
ASROCK
37363 лв.
-
0.500 кг
- Other:- Intel® 802.11ax WiFi Module; - Supports IEEE 802.11a/b/g/n/ax; - Supports Dual-Band (2.4/5 GHz); - Supports WiFi6 802.11ax (2.4Gbps); - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology; - Supports Bluetooth 5.2 + High speed class...
- Audio:- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec); - Premium Blu-ray Audio support; - Supports Surge Protection; - 120dB SNR DAC with Differential Amplifier; - Pure Power-In; - Direct Drive Technology; - PCB Isolate Shielding; - I...
- Memory Type:- Dual Channel DDR4 Memory Technology; - 2 x DDR4 DIMM Slots; - AMD Ryzen series CPUs (Vermeer) support DDR4 5100+(OC) / 5000(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) /...
- Graphics:- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*; - DirectX 12, Pixel Shader 5.0; - Shared memory default 2GB. Max Shared memory supports up to 16GB.**; - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent disp...
- LAN:- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - GigaLAN Intel® I225V; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE
- Expansion Slots:AMD Ryzen series CPUs (Vermeer and Matisse); - 1 x PCI Express x16 Slot (PCIE1: Gen4x16 mode)*; AMD Ryzen series APUs (Cezanne and Renoir); - 1 x PCI Express x16 Slot (PCIE1: Gen3x16 mode)*; AMD Ryzen series APUs (Picasso); - 1 x PCI Express x16 Slot (...

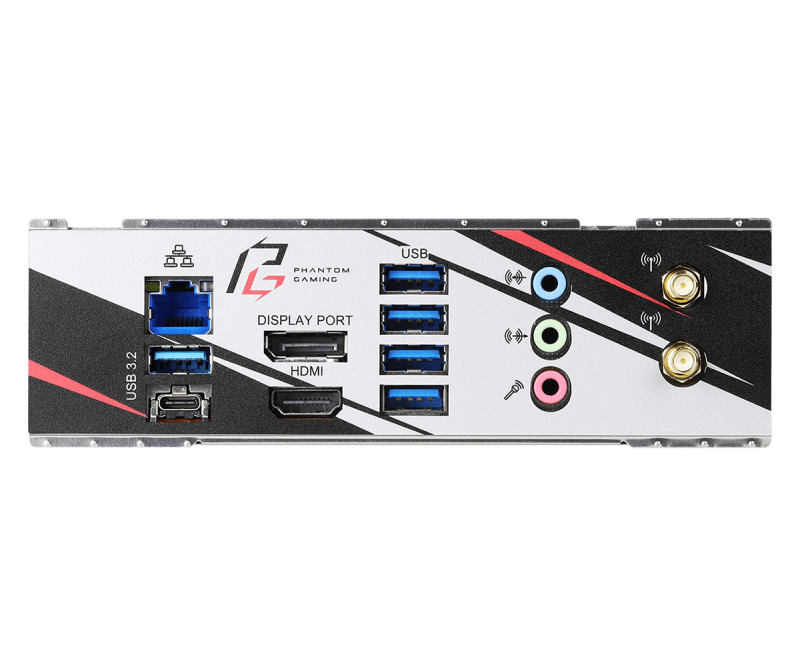

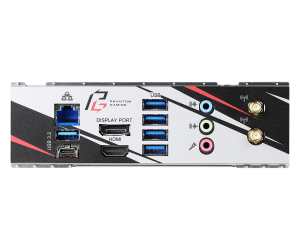

- I/O:- 2 x Antenna Ports; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection); - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection); - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection); - 1...
- Form Factor:- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm; - 8 Layer PCB; - 2oz Copper PCB
- CPU's supported:- Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*; - Digi Power design; - 8 Power Phase design
- Chipset:- AMD B550
- Storage:- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug; - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with...
- Connectors:- 1 x RGB LED Header*; - 1 x Addressable LED Header**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****; - 1 x 24...
- BIOS:- 256Mb AMI UEFI Legal BIOS with GUI support; - Supports "Plug and Play"; - ACPI 5.1 compliance wake up events; - Supports jumperfree; - SMBIOS 2.3 support; - CPU, CPU VDDCR_SOC, DRAM, VPPM, Chipset 1.05V, 2.50V, +1.8V, VDDP Voltage Multi-adjustment
