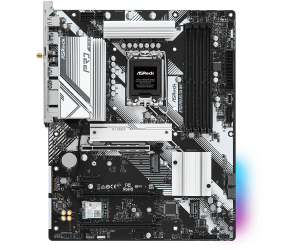

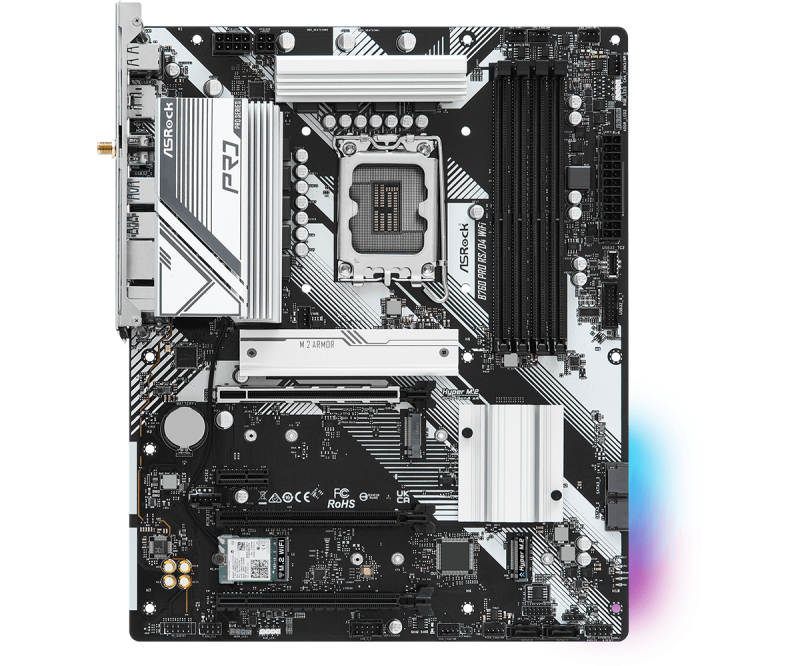

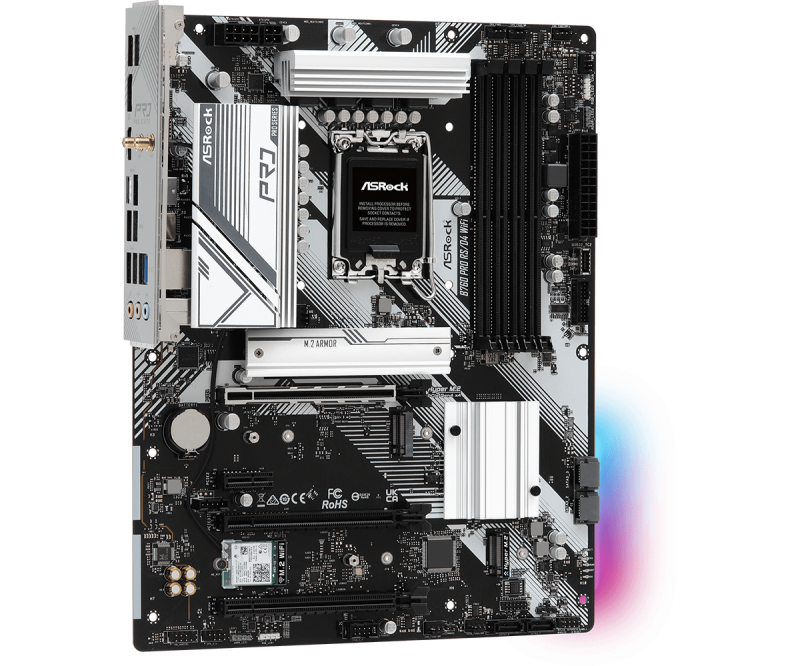

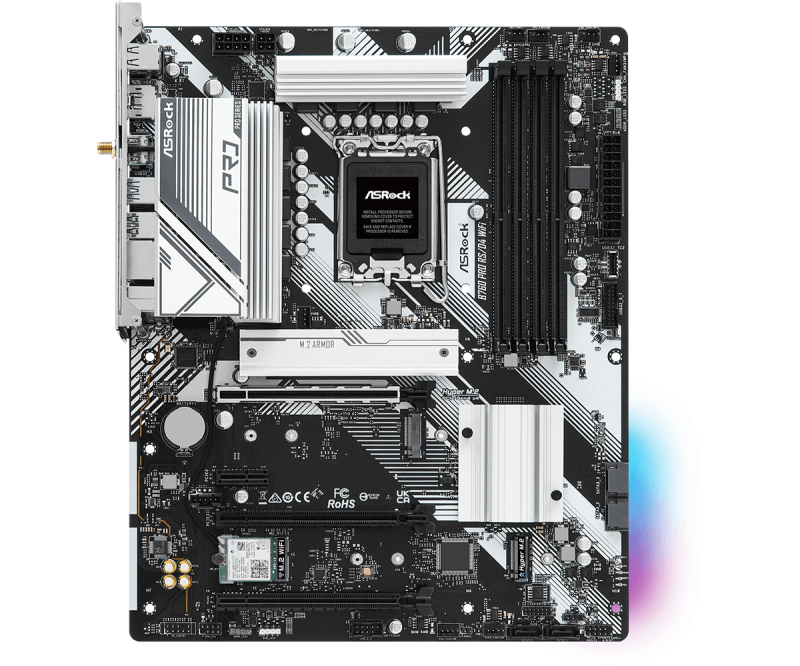

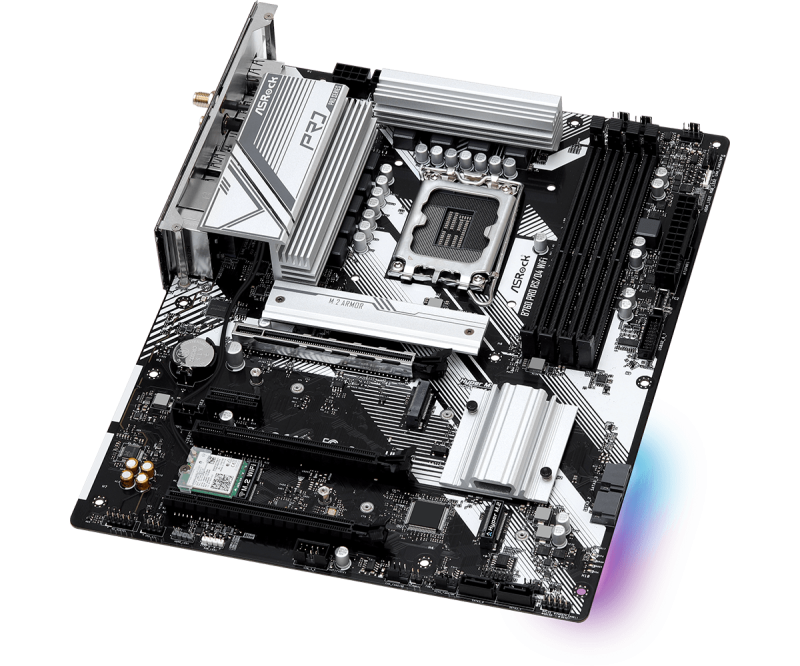

ASROCK B760 PRO RS/D4 WIFI
Producător:
ASROCK
- :ASRock Inc.
- :Wireless LAN: 802.11ax Wi-Fi 6E Module;- Supports IEEE 802.11a/b/g/n/ac/ax;- Supports Dual-Band 2x2 with extended 6GHz band support;- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology;- Supports Bluetooth 5.3 + High speed class II;-...
- :Dual Channel DDR4 Memory Technology;- 4 x DDR4 DIMM Slots;- Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC);Supports ECC UDIMM memory modules (operate in non-ECC mode);- Max. capacity of system memory: 128GB;- Supports Intel Extreme Memory Pr...
- :- Intel® Xe Graphics Architecture (Gen 12);- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz;- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
- :- 7.1 CH HD Audio (Realtek ALC897 Audio Codec);- Nahimic Audio
- :- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s;- Dragon RTL8125BG;- Supports Dragon 2.5G LAN Software;- Smart Auto Adjust Bandwidth Control;- Visual User Friendly UI;- Visual Network Usage Statistics;- Optimized Default Setting for Game, Browser, and Streamin...
- :CPU;- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode;Chipset;- 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode;- 1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode;- 1 x PCIe 3.0 x1 Slot (PCIE2);- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe...

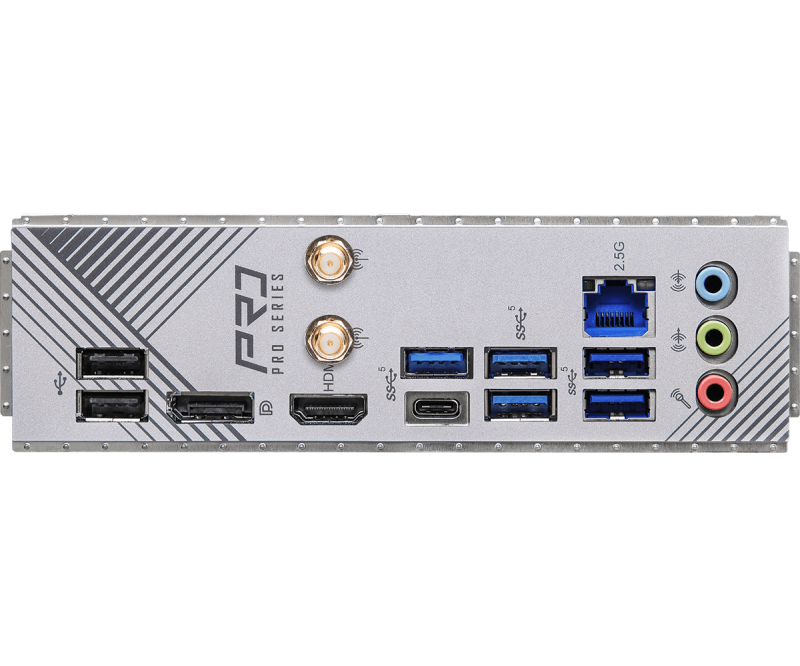

- :- 2 x Antenna Ports;- 1 x HDMI Port;- 1 x DisplayPort 1.4;- 1 x USB 3.2 Gen1 Type-C Port;- 5 x USB 3.2 Gen1 Type-A Ports;- 2 x USB 2.0 Ports;- 1 x RJ-45 LAN Port;- HD Audio Jacks: Line in / Front Speaker / Microphone
- :ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- :- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700);- Supports Intel® Hybrid Technology;- Supports Intel® Turbo Boost Max 3.0 Technology;- Supports Intel® Thermal Velocity Boost (TVB);- Supports Intel® Adaptive Boost Technology (ABT)
- :Intel® B760
- :CPU;- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode;Chipset;- 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode;- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe G...
- :- 1 x SPI TPM Header;- 1 x Chassis Intrusion and Speaker Header;- 2 x RGB LED Headers;- 2 x Addressable LED Headers;- 1 x CPU Fan Connector (4-pin);- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control);- 5 x Chassis/Water Pump Fan Connec...
- :128Mb AMI UEFI Legal BIOS with GUI support
- :Rock-Solid Durability;- 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT;- Pre-Installed I/O Shield;- ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology;Ultrafast Connectivity;- 2.5G LAN, 802.11ax Wi-Fi 6E;Module EZ Update;- ASRock Auto Dr...
