MSI MAG B650 TOMAHAWK WIFI
Producător:
MSI
- Factor de formă:ATX, 243.84mmx304.8mm
- Garantie:36 Months
- Alte:AMD Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX; Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth® 5.2**
- Tipul memoriei:4x DDR5, Maximum Memory Capacity 128GB; Memory Support DDR5 6600+(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz
- Grafică:1x HDMI™; 1x DisplayPort; Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*; Support DP 1.4, maximum resolution of 8K 60Hz*
- Audio:Realtek® ALC4080 Codec; 7.1-Channel High Performance Audio; Supports S/PDIF output; Supports up to 32-Bit/384 kHz playback on front panel
- LAN:Realtek® RTL8125B 2.5Gbps LAN
- Sloturi de extensie:2x PCI-E x16 slot; Support x16/ x4; 1x PCI-E x1 slot; PCI_E1 PCIe 4.0 supports up to x16 (From CPU); PCI_E2 PCIe 4.0 supports up to x4 (From Chipset); PCI_E3 PCIe 3.0 supports up to x1 (From Chipset)
- CPU este acceptat:Supports AMD Ryzen™ 7000 Series Desktop Processors;Socket AM5

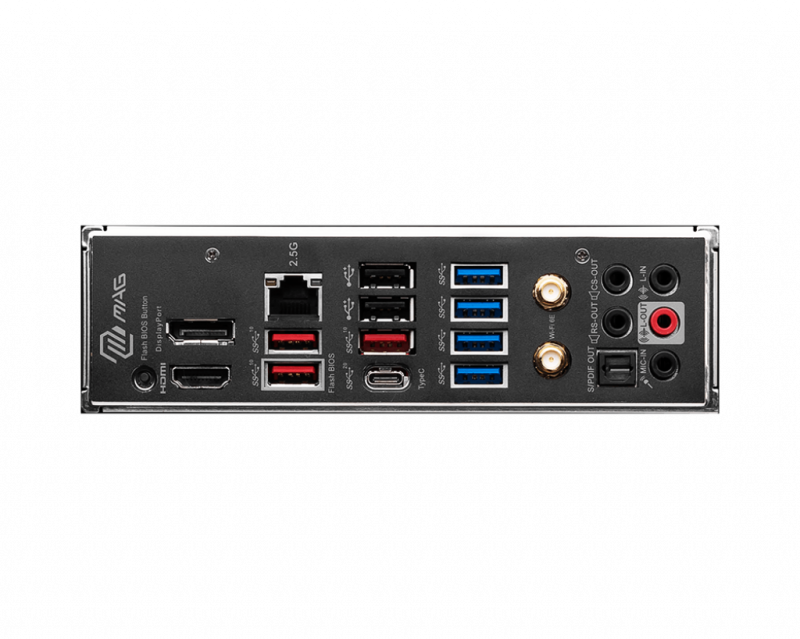

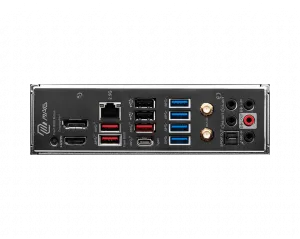

- I/O:DisplayPort 1.4; 2.5G LAN Port; USB 2.0 Port; USB 3.2 Gen 1 5Gbps Type-A; Wi-Fi / Bluetooth Antenna; HD Audio Connectors; Flash BIOS Button; HDMI™ 2.1 Port; USB 3.2 Gen 2 10Gbps Type-A; USB 3.2 Gen 2x2 20Gbps Type-C; Optical S/PDIF OUT
- Chipset:AMD B650
- Conectori:1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 6x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Tuning Controller connector(JDASH); 2x Addressable V2 RGB LED connector (JARGB...
- Depozitare:3x M.2 slot; M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 6x SATA 6G po...
