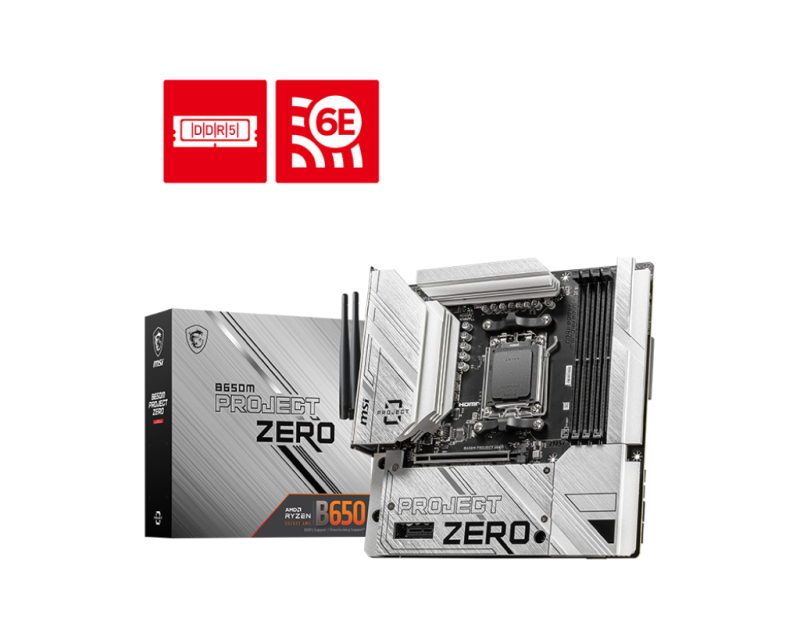

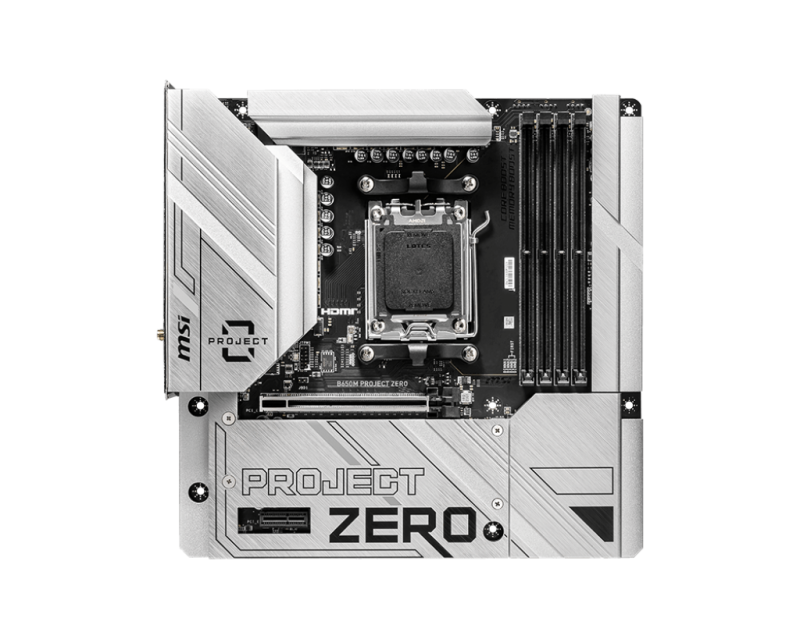

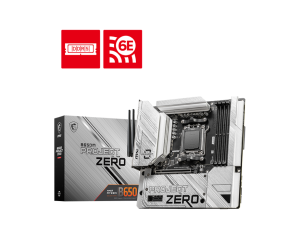

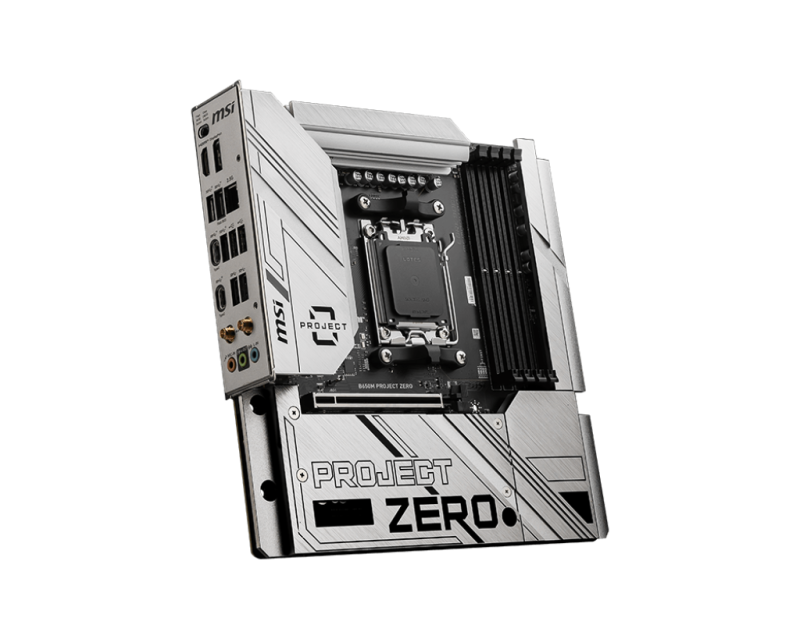

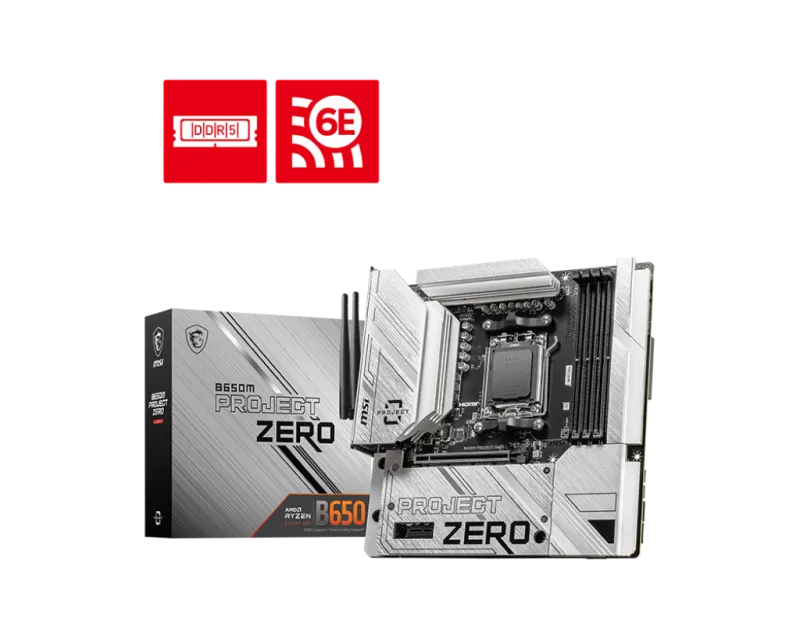

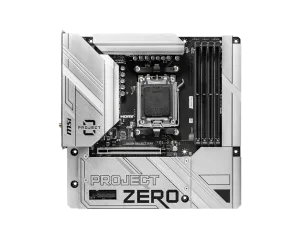

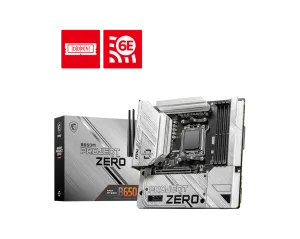

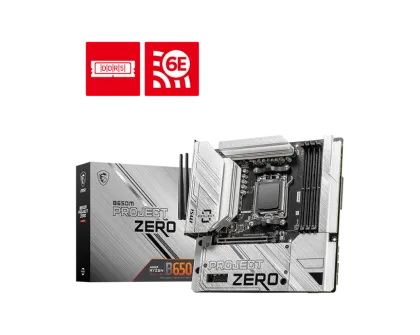

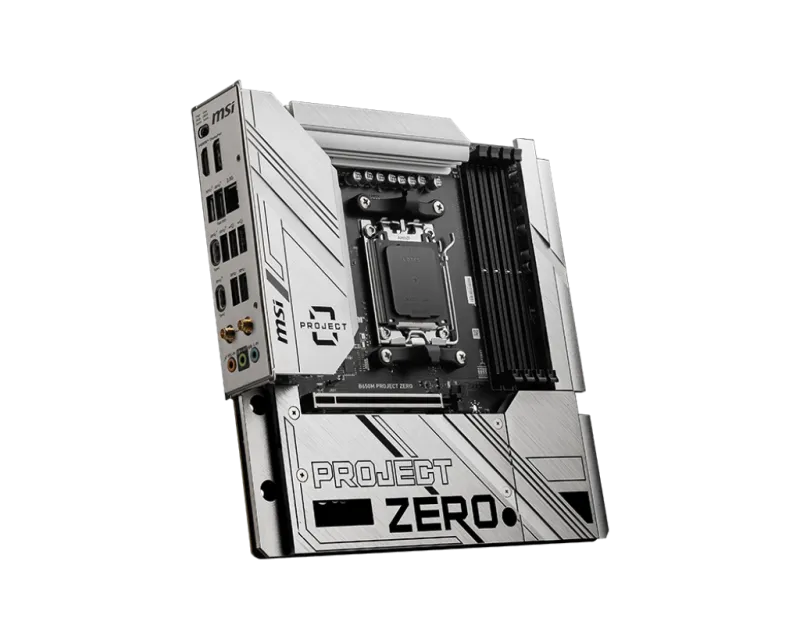

MSI B650M PROJECT ZERO
Марка:
MSI
- Manufacturer:MSI
- Wireless:AMD Wi-Fi 6E;The Wireless module is pre-installed in the M.2 (Key-E) slot;Supports MU-MIMO TX/RX;Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands;Supports 802.11 a/ b/ g/ n/ ac/ ax
- Audio:Realtek® ALC897 Codec;7.1-Channel High Definition Audio;Supports up to 32-Bit/384 kHz playback on front panel
- Memory type:4x DDR5, Maximum Memory Capacity 256GB;Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz;Max. overclocking frequency:;• 1DPC...
- Graphics:1x HDMI™;Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz;1x DisplayPort;Support DP 1.4, maximum resolution of 4K 60Hz
- LAN:Realtek® RTL8125BG 2.5Gbps LAN
- Expansion Slots:1x PCI-E x16 slot;• Supports x16 (For Ryzen™ 9000/ 7000 Series processors);• Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors);• Supports x4 (For Ryzen™ 8500/ 8300 Series processors);1x PCI-E x1 slot;PCI_E1 Gen PCIe 4.0 supports up to x16 (Fr...

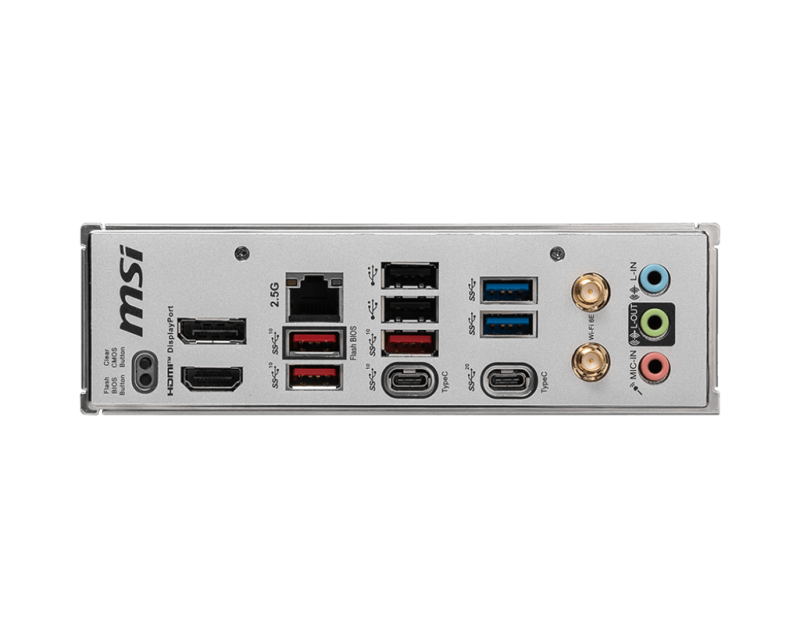

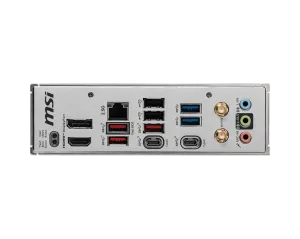

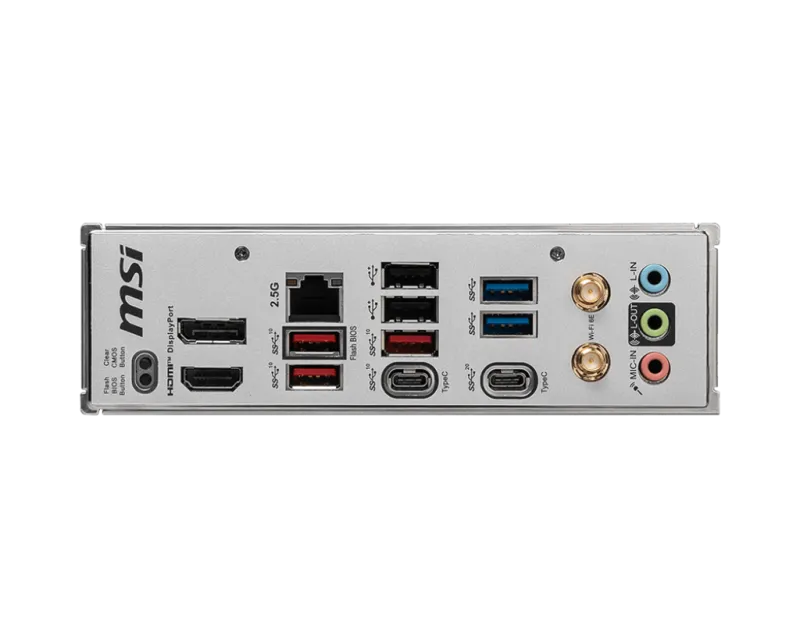

- I/O:DisplayPort;2.5G LAN;USB 2.0;USB 5Gbps (Type-A);Wi-Fi / Bluetooth;Audio connectors;Flash BIOS Button;Clear CMOS Button;HDMI™;USB 10Gbps (Type-A);USB 10Gbps (Type-C);USB 20Gbps (Type-C)
- Form Factor:mATX, 243.84mmx243.84mm
- CPU's supported:Socket AM5, Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
- Storage:2x M.2;M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;4x SATA 6G;• The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series pr...
- Connectors:1x Power Connector(ATX_PWR);2x Power Connector(CPU_PWR);1x CPU Fan;1x Pump Fan;3x System Fan;2x Front Panel (JFP);1x Chassis Intrusion (JCI);1x Front Audio (JAUD);3x Addressable V2 RGB LED connector (JARGB_V2);1x TPM pin header(Support TPM 2.0);4x USB...
- Features:4x EZ Debug LED
- USB:2x USB 2.0 (Rear);4x USB 2.0 (Front);2x USB 5Gbps Type A (Rear);2x USB 5Gbps Type A (Front);3x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Rear);1x USB 10Gbps Type C (Front);1x USB 20Gbps Type C (Rear)
