PSU GB GP-UD1000GM PG5
Марка:
GIGABYTE
- Manufacturer:GIGABYTE
- Model:GP-UD1000GM PG5
- Dimensions:150 x 140 x 86 mm
- Form Factor:Intel Form Factor ATX 12V
- Power:1000W, Power Good Signal: 100-150ms

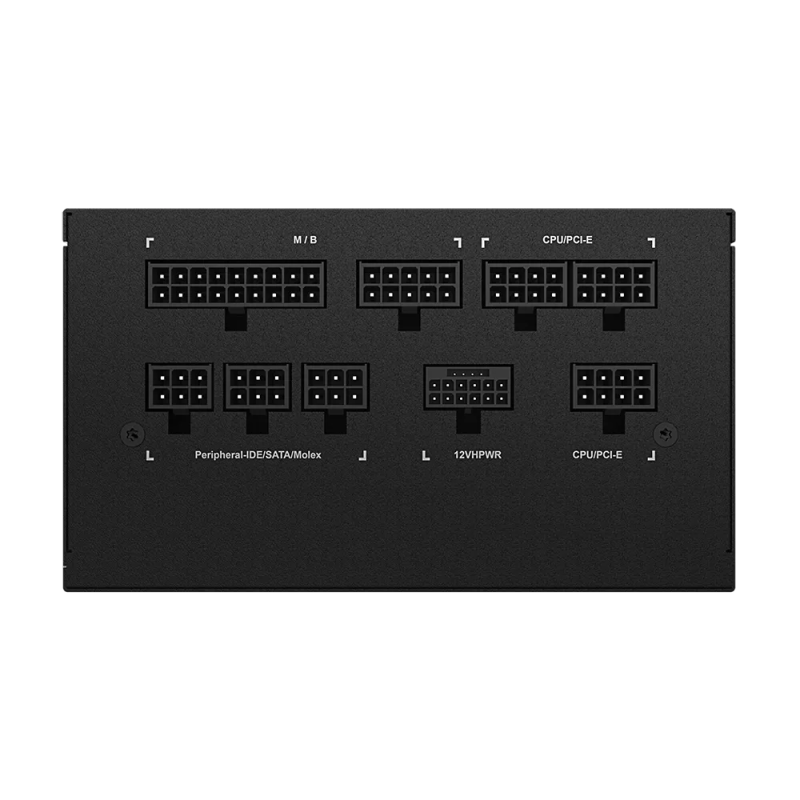

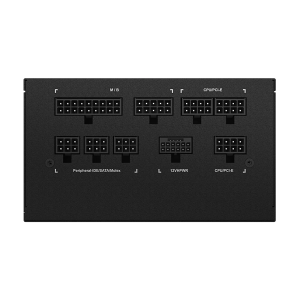

- Connectors:ATX/MB 20+4 Pin x 1 : 610mm*1;CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1;PCI-e 16 Pin x 1: 700mm*1;PCI-e 6+2 Pin x 4 : 600mm+150mm*2;SATA x 8 :600mm+150mm+150mm+150mm*2;4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1

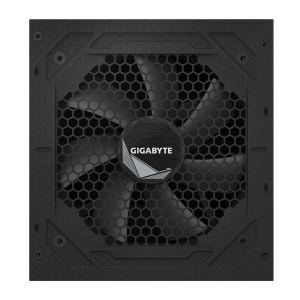

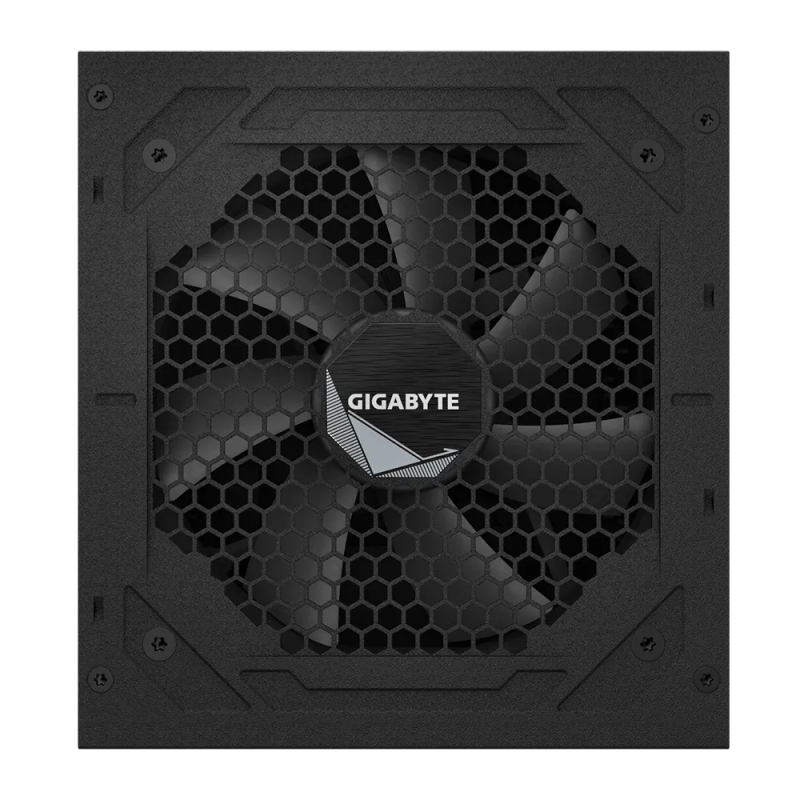

- Fan Information:120mm Hydraulic Bearing(HYB)fan
- AC Input:Input Voltage: 100-240 Vac (full range);Input Current: 15-6.5A;Input Frequency: 60-50 Hz
- Cable Information:Flat, All black
- Safety and Environmental:Protection: OVP/OPP/SCP/UVP/OCP/OTP;Efficiency: 90% at typical load
- PFC Type:Active PFC (>0.9 typical)
