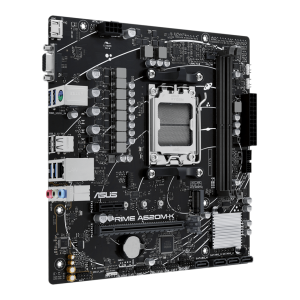

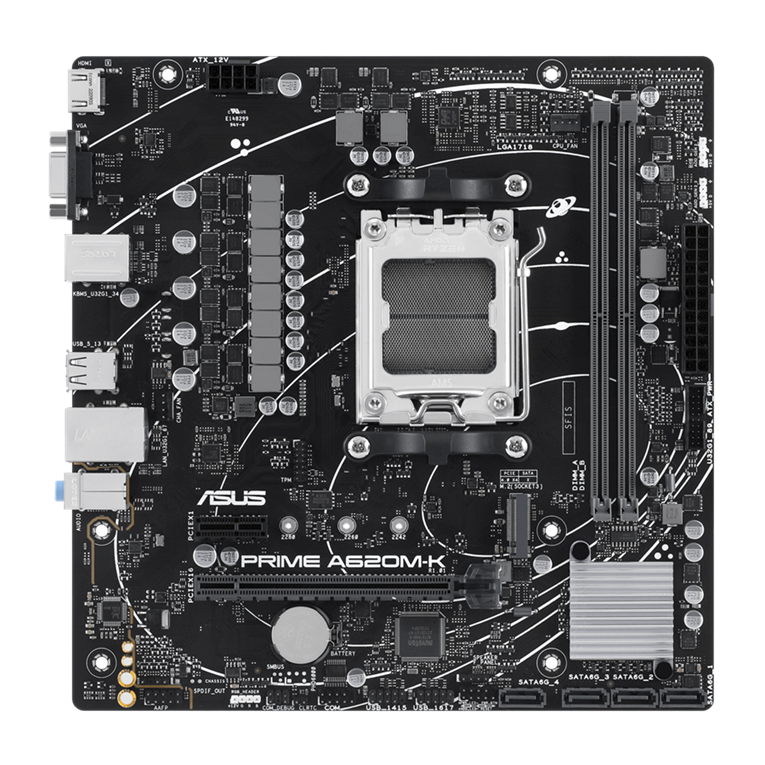

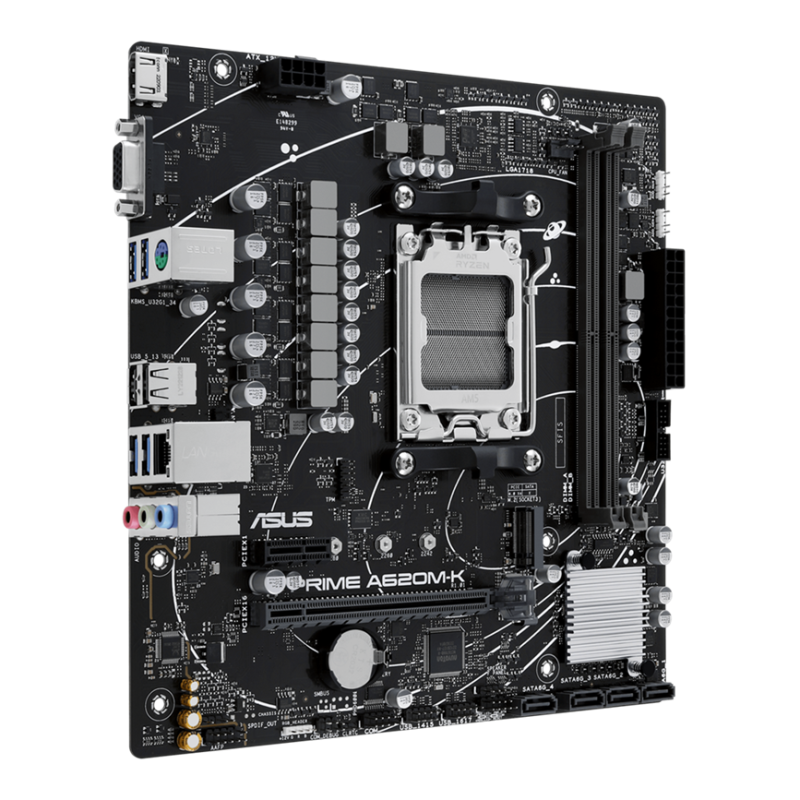

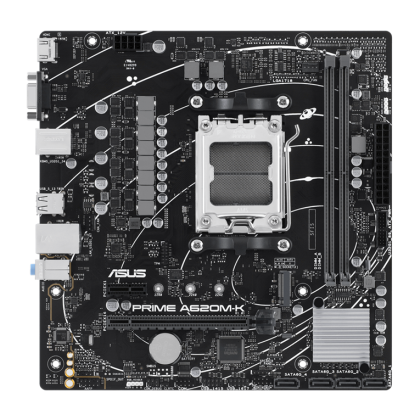

ASUS PRIME A620M-K
Марка:
ASUS
- Manufacturer:ASUS
- Audio:Realtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB la...
- Memory type:2 x DIMM slots, Max. 96GB, DDR5;7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory;Dual Channel Memory Architecture;Supports AMD Extended Profiles for Overcl...
- Graphics:1 x VGA port;1 x HDMI™ port
- LAN:1 x Realtek 1Gb Ethernet
- Expansion Slots:AMD Ryzen™ 9000 & 7000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x16 mode);AMD Ryzen™ 8000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x8/x4 mode);AMD A620 Chipset;1 x PCIe 3.0 x1 slot

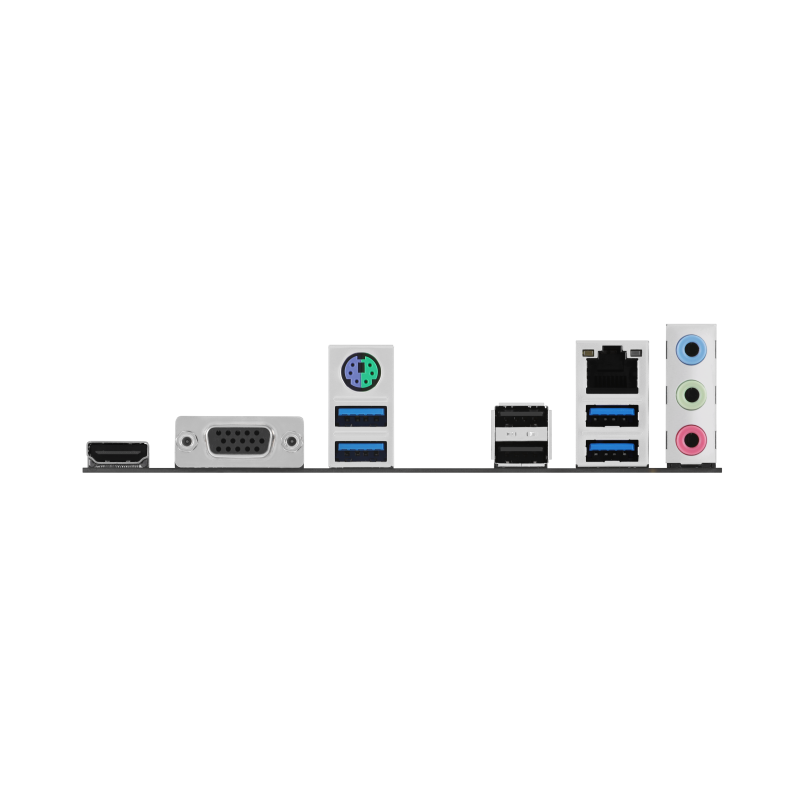

- I/O:4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A);2 x USB 2.0 ports (2 x Type-A);1 x VGA port;1 x HDMI™ port;1 x Realtek 1Gb Ethernet port;3 x Audio jacks;1 x PS/2 Keyboard/Mouse combo port
- Form Factor:micro-ATX Form Factor;22.6 cm x 22.1 cm
- CPU's supported:AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors;Supports up to AMD 120W CPU
- Chipset:AMD A620 Chipset
- Storage:Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports*;AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors;M.2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 4.0 x4 mode);AMD A620 Chipset;4 x SATA 6Gb/s ports;* AMD RAIDXpert2 Technology supports...
- Connectors:Fan and Cooling related;1 x 4-pin CPU Fan header;1 x 4-pin Chassis Fan header;Power related;1 x 24-pin Main Power connector;1 x 8-pin +12V Power connector;Storage related;1 x M.2 slot (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 3.2 Gen 1 (5G) header suppo...
- BIOS:256 Mb Flash ROM, UEFI AMI BIOS
- Features:ASUS 5X PROTECTION III;- DIGI+ VRM;- LANGuard;- Overvoltage Protection;- SafeSlot Core;- Stainless-Steel Back I/O;ASUS Q-Design;- Q-DIMM;- Q-LED Core;- Q-Slot;ASUS Thermal Solution;- Aluminum heatsink design;Aura Sync;- Aura RGB header;- Addressable Ge...
- USB:Rear USB (Total 6 ports);4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A);2 x USB 2.0 ports (2 x Type-A);Front USB (Total 6 ports);1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports
