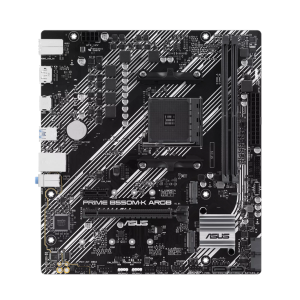

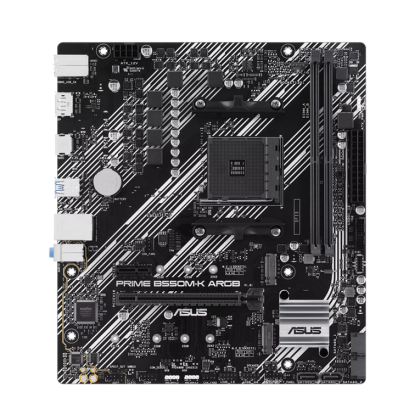

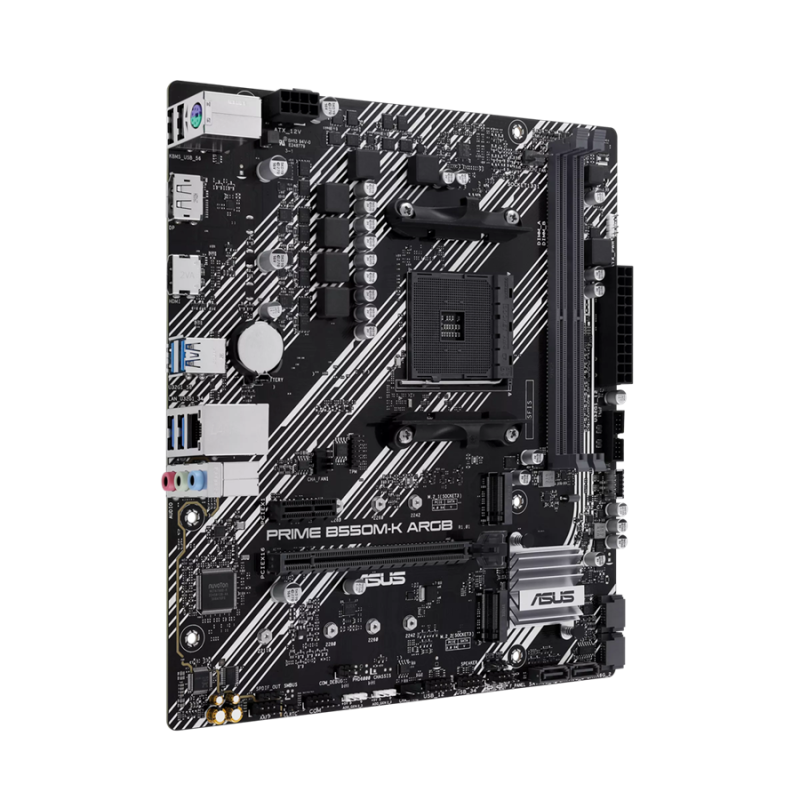

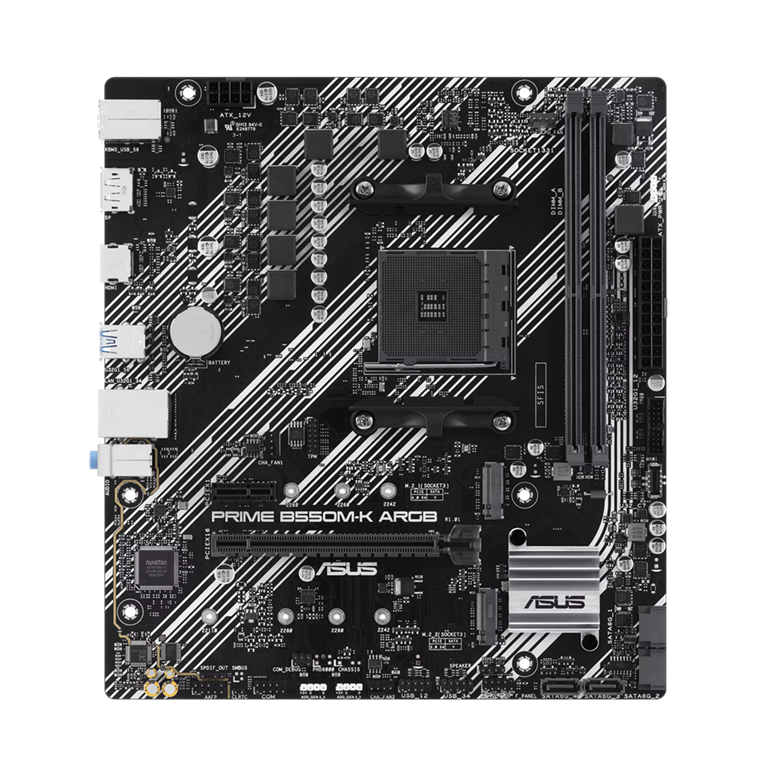

ASUS PRIME B550M-K ARGB /AM4
Марка:
ASUS
-
Manufacturer:ASUS
-
Memory type:2 x DIMM slots, Max. 64GB, DDR4;5100(OC)/ 4866(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133, Un-buffered Memory...
-
Graphics:1 x DisplayPort;1 x HDMI™ port
-
Audio:Realtek 7.1 Surround Sound High Definition Audio CODEC*;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB l...
-
LAN:1 x Realtek 1Gb Ethernet
-
Expansion Slots:AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x16 mode);AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors;1 x PCIe 3.0 x16 slot (supports x16 mode);AMD B550 Chipset;1 x PCIe 3.0 x1 slot
-

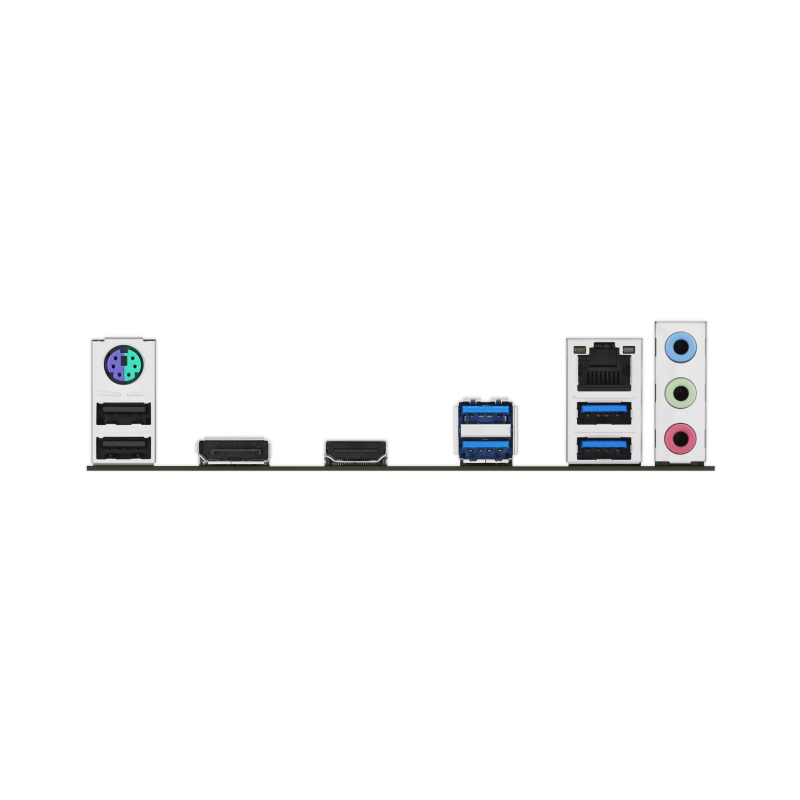

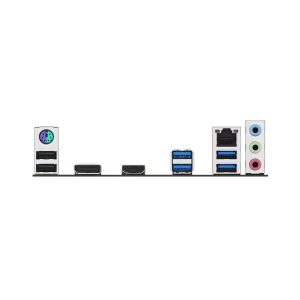

I/O:4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A);2 x USB 2.0 ports (2 x Type-A);1 x DisplayPort;1 x HDMI™ port;1 x Realtek 1Gb Ethernet port;3 x Audio jacks;1 x PS/2 Keyboard/Mouse combo port
-
Form Factor:micro-ATX Form Factor;24.4 cm x 22.1 cm
-
CPU's supported:AMD Socket AM4 for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
-
Chipset:AMD B550
-
Storage:Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*;AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors;M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes);AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors;M.2_1 s...
-
Connectors:Fan and Cooling related;1 x 4-pin CPU Fan header;2 x 4-pin Chassis Fan headers;Power related;1 x 24-pin Main Power connector;1 x 8-pin +12V Power connector;Storage related;2 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 3.2 Gen 1 (5G) connector...
-
BIOS:128 Mb Flash ROM, UEFI AMI BIOS
-
Features:ASUS 5X PROTECTION III;- DIGI+ VRM;- LANGuard;- Overvoltage Protection;- SafeSlot Core;- Stainless-Steel Back I/O;ASUS Q-Design;- Q-DIMM;- Q-LED Core;- Q-Slot;ASUS Thermal Solution;- Aluminum heatsink design;Aura Sync;- Addressable Gen 2 headers
-
USB:Rear USB (Total 6 ports);4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A);2 x USB 2.0 ports (2 x Type-A);Front USB (Total 7 ports);1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®);1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports;...
