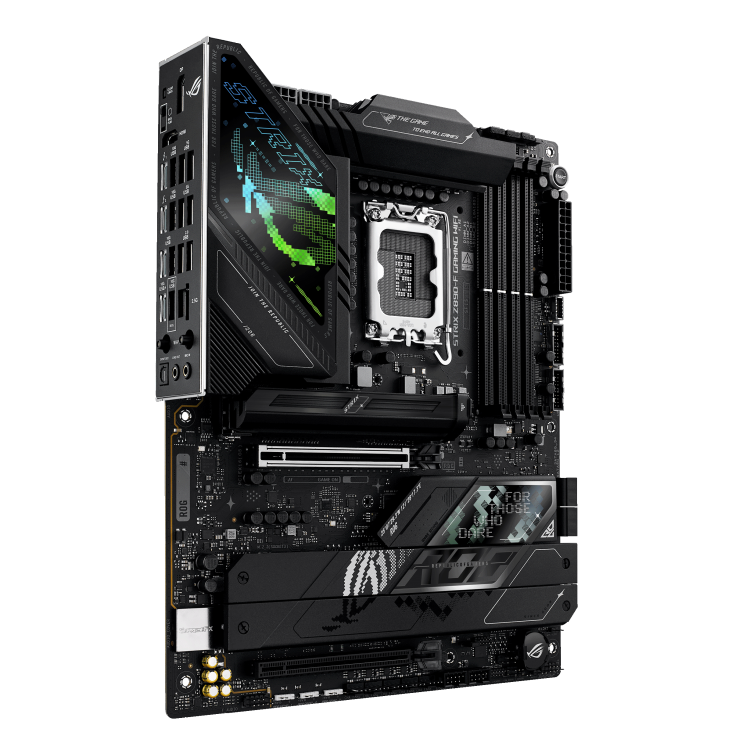

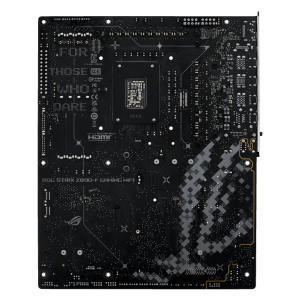

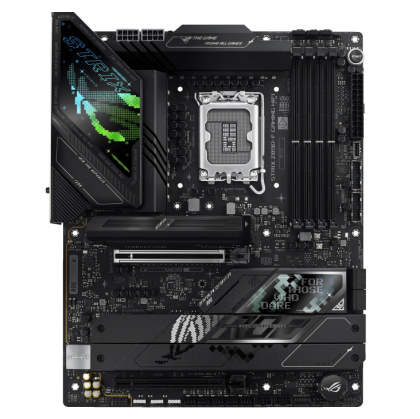

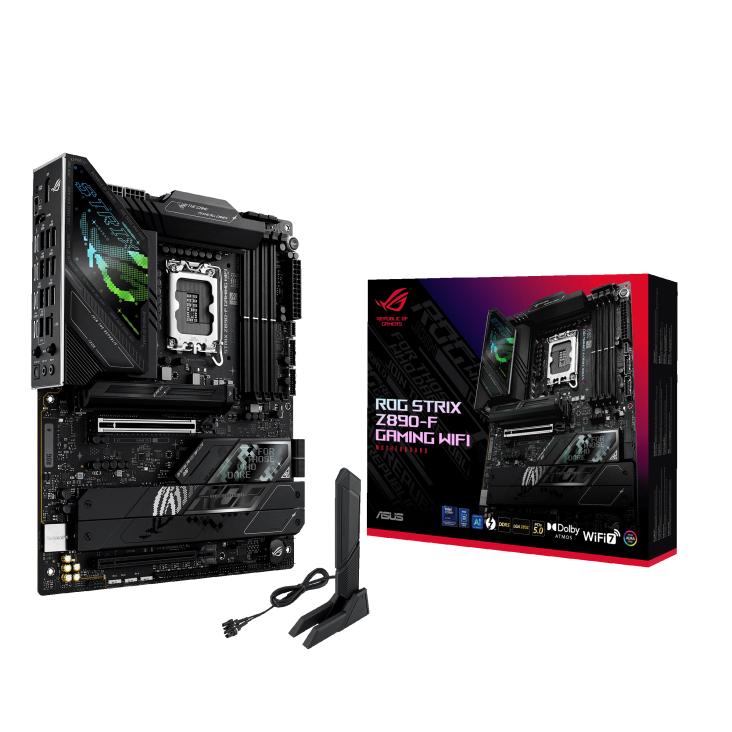

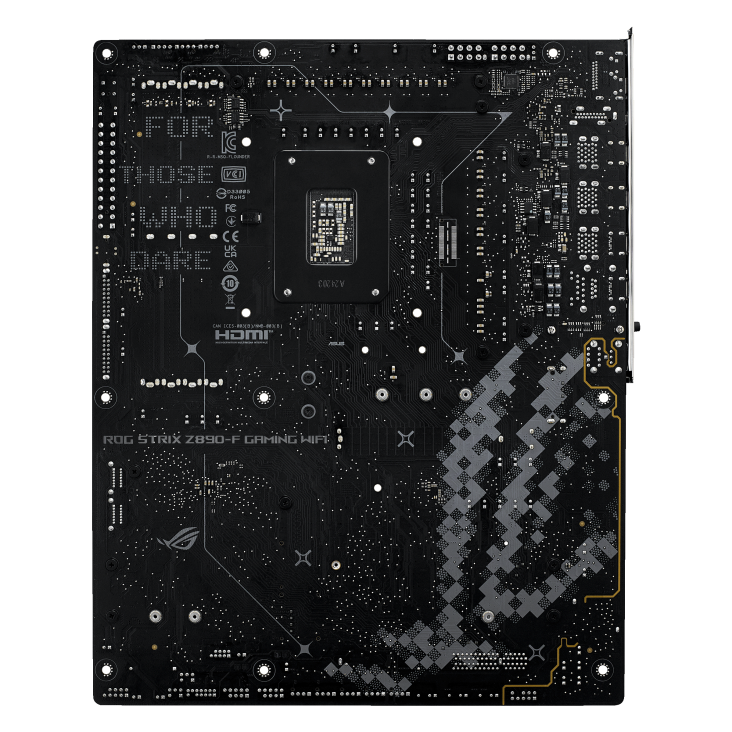

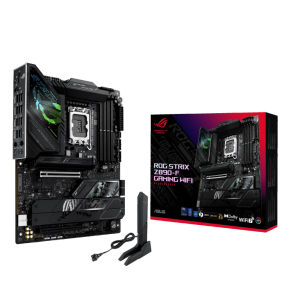

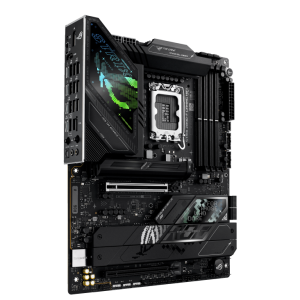

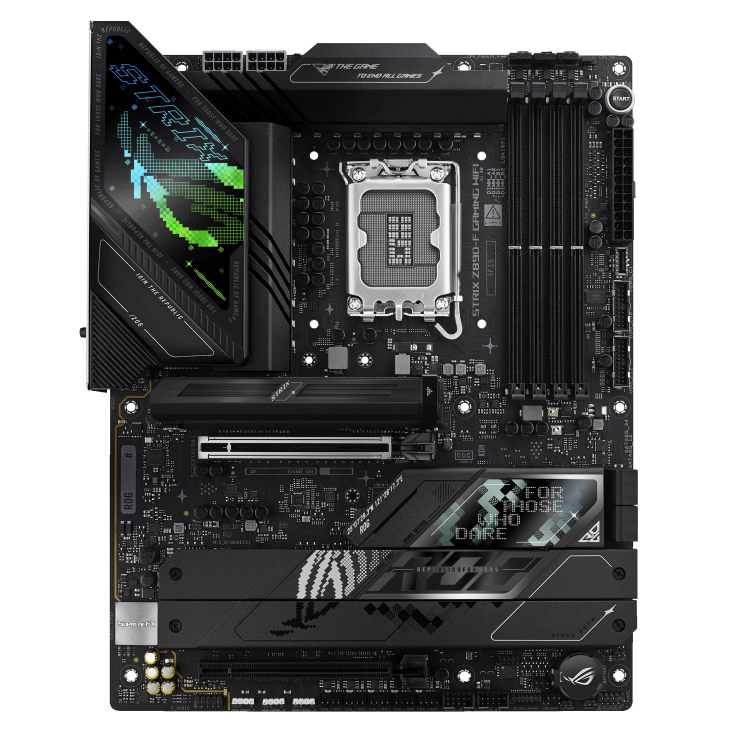

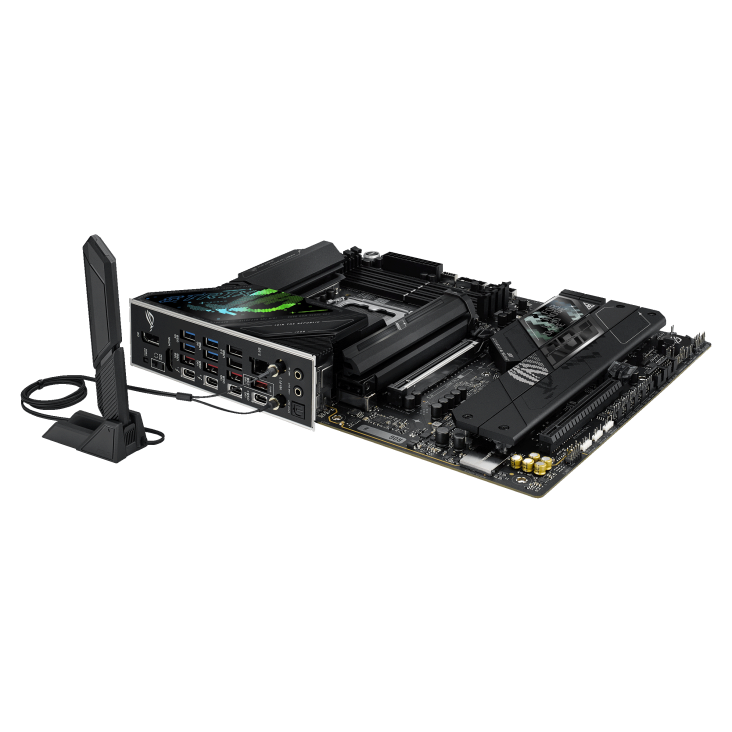

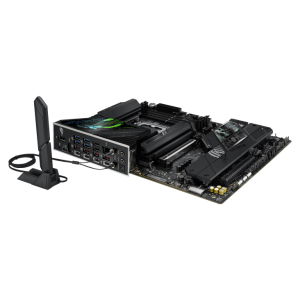

ASUS ROG STRIX Z890-F GAM WIFI
Марка:
ASUS
-
Manufacturer:ASUS
-
Wireless:Wi-Fi 7;2x2 Wi-Fi 7 (802.11be);Supports 2.4/5/6GHz frequency band;Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate;Bluetooth® v5.4
-
Memory type:4 x DIMM slots, max. 256GB, DDR5;Support up to 9066+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM);Dual Channel Memory Architecture ;Supports Intel® Extreme Memory Profile (XMP) memory module;Supports DIMM FlexDIMM Fit;ASUS Enhanced Memory Profil...
-
Graphics:1 x DisplayPort;1 x HDMI® port;2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs
-
Audio:ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080;- Impedance sense for front and rear headphone outputs;- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking;- High quality 120 dB SNR stereo playback output and...
-
LAN:1 x Intel® 2.5Gb Ethernet;ASUS LANGuard
-
Expansion Slots:Intel® Core™ Ultra Processors(Series 2);1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes);Intel® Z890 Chipset;1 x PCIe 4.0 x16 slot (supports x4 mode)
-

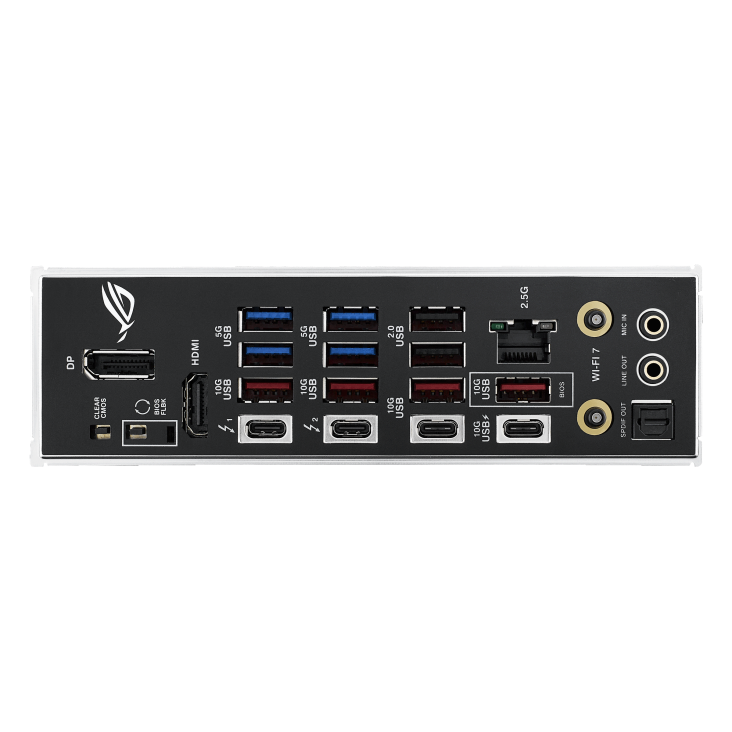

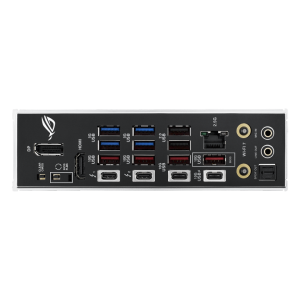

I/O:2 x Thunderbolt™ 4 (2 x USB Type-C®);6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge);4 x USB 5Gbps ports (4 x Type-A);2 x USB 2.0 ports (2 x Type-A);1 x DisplayPort;1 x HDMI™ port;1 x Wi-Fi module;1 x...
-
Form Factor:ATX Form Factor;30.5 cm x 24.4 cm
-
CPU's supported:Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2);Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
-
Chipset:Intel® Z890 Chipset
-
Storage:Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports;Intel® Core™ Ultra Processors(Series 2);M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode);M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);Intel® Z890 Chipset;M.2_3 slot (...
-
Connectors:Fan and Cooling related ;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;5 x 4-pin Chassis Fan headers;Power related ;1 x 24-pin Main Power connector;2 x 8-pin +12V CPU Power connectors;Storage related ;5 x M.2 slots (Ke...
-
BIOS:256 Mb Flash ROM, UEFI AMI BIOS
-
Features:Extreme Engine Digi+;- 5K Black Metallic Capacitors ;ASUS Q-Design ;- M.2 Q-Latch;- M.2 Q-Release;- M.2 Q-Slide;- PCIe Slot Q-Release Slim (with PCIe SafeSlot);- Q-Antenna;- Q-Dashboard;- Q-DIMM;- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Devi...
-
USB:Rear USB (Total 14 ports);2 x Thunderbolt™ 4 (2 x USB Type-C®);6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®* + 1 x USB Type-C® with up to 30W PD Fast-charge);4 x USB 5Gbps ports (4 x Type-A);2 x USB 2.0 ports;Front USB (Total 9 ports);1 x USB 20G...
